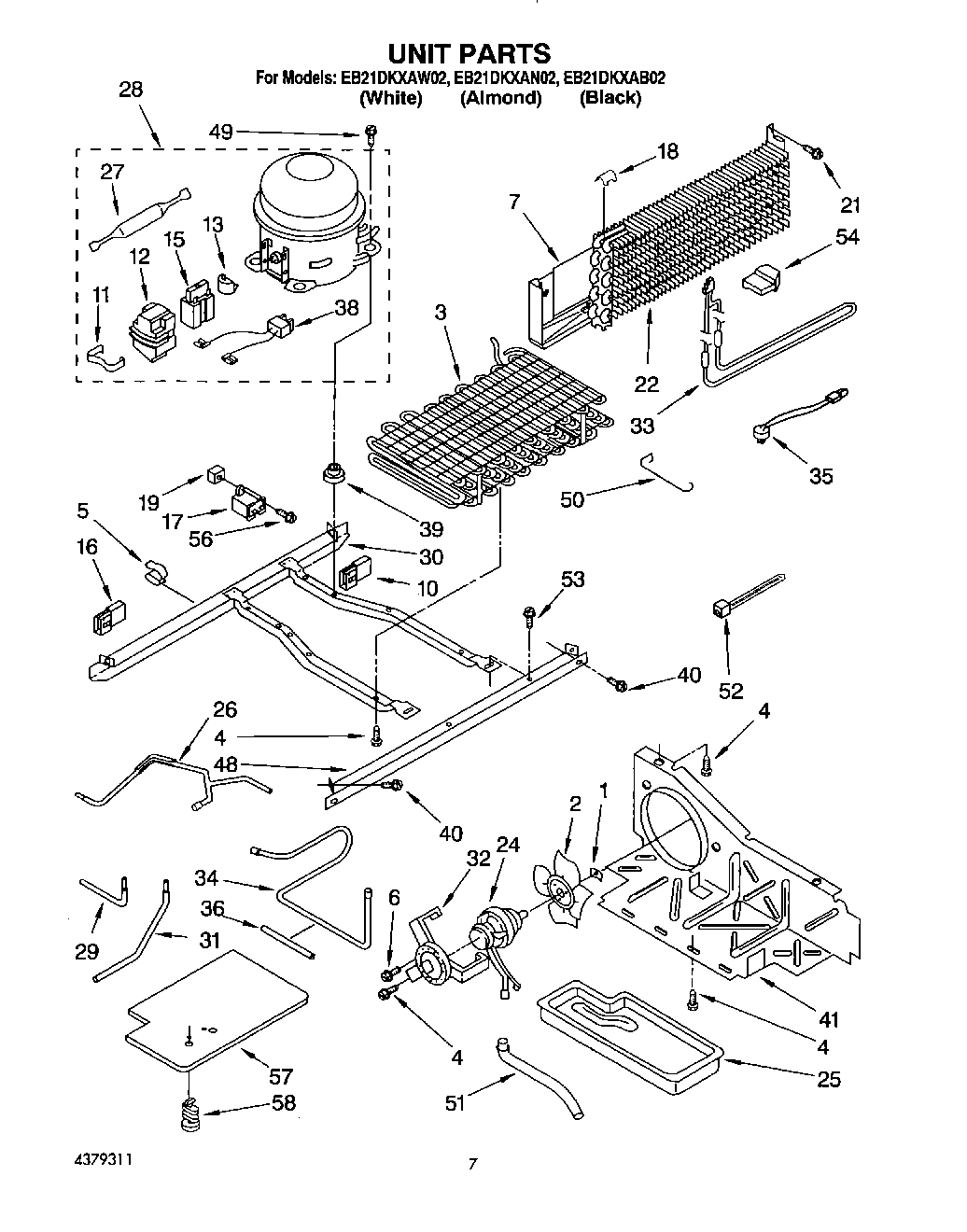

EB21DKXAB02 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan & Heat Shield Assy.
10	WP717253 Whirlpool Dishwasher Connector
11	Strap
12	Cover
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
15	Relay (See Overload)
16	Housing Plug
17	Running Capacitor (Service)
18	9791833 Whirlpool Refrigerator Clip
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Tube, Discharge
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
29	2154109 Whirlpool Refrigerator Tube
30	2304903 Whirlpool Refrigerator Frame
31	Tube, Condenser To Heat Loop
32	Fan, Motor Bracket
33	Heater, Defrost
34	Tube, Suction
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	SLEEVE
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Extension, Drain Tube
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Support
56	W11693756 Whirlpool Screw Assembly
57	Cover-Unit Btm.
58	VALVE, ACCESS (5/8“)
58	489396 Whirlpool Refrigerator Clip
58	978027 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	978030 Whirlpool Refrigerator Valve
58	978026 Whirlpool Refrigerator Primary Valve
