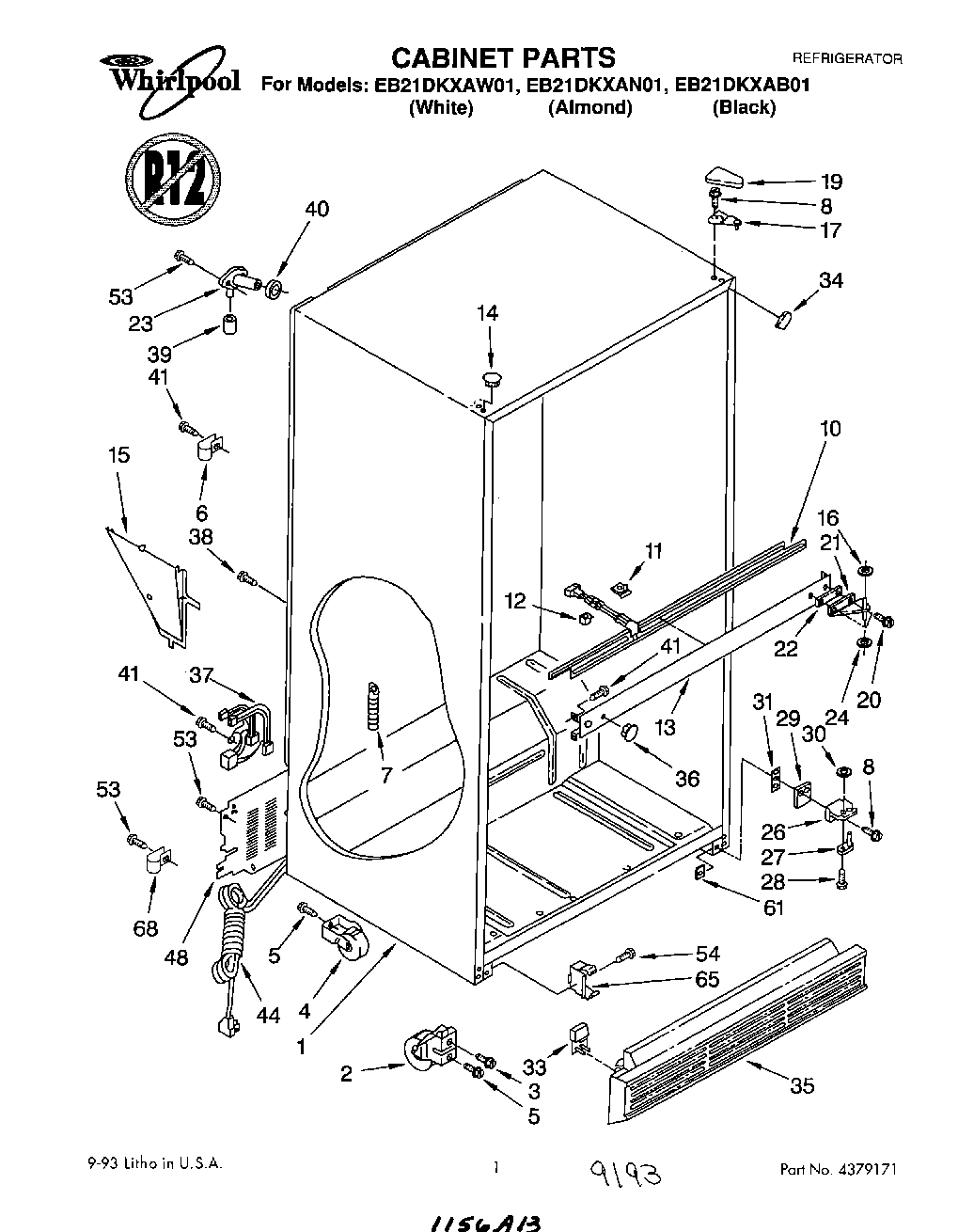

EB21DKXAN01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WP488366 Whirlpool Refrigerator Clamp
7	W11566763 Whirlpool Fitting
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail
14	Hole Plug (6) (Almond)
14	WP2183998 Whirlpool Refrigerator Button Plug
14	WP2151652 Whirlpool Refrigerator Button Plug
15	Scoop, Air
16	WP489467 Whirlpool Hinge Shim
17	WP2189412 Whirlpool Refrigerator Door Hinge
19	WP2213363 Whirlpool Refrigerator Cover
19	WP2213360 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
26	Hinge Butt, Bottom
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP489200 Whirlpool Refrigerator Washer
30	WP487802 Whirlpool Refrigerator Washer
31	Spacer
33	Corner Filler, Grille (White)
33	Corner Filler, Grille
33	Corner Filler, Grille (Almond)
34	Filler, Wrap Corner (Black)
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
35	Grille (Black)
35	Grille (White)
35	Grille (Almond)
36	Hole Plug (4) (White)
37	Wiring Assembly, Intermediate
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
44	Cord, Service
48	Cover, Unit
54	WP489478 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
