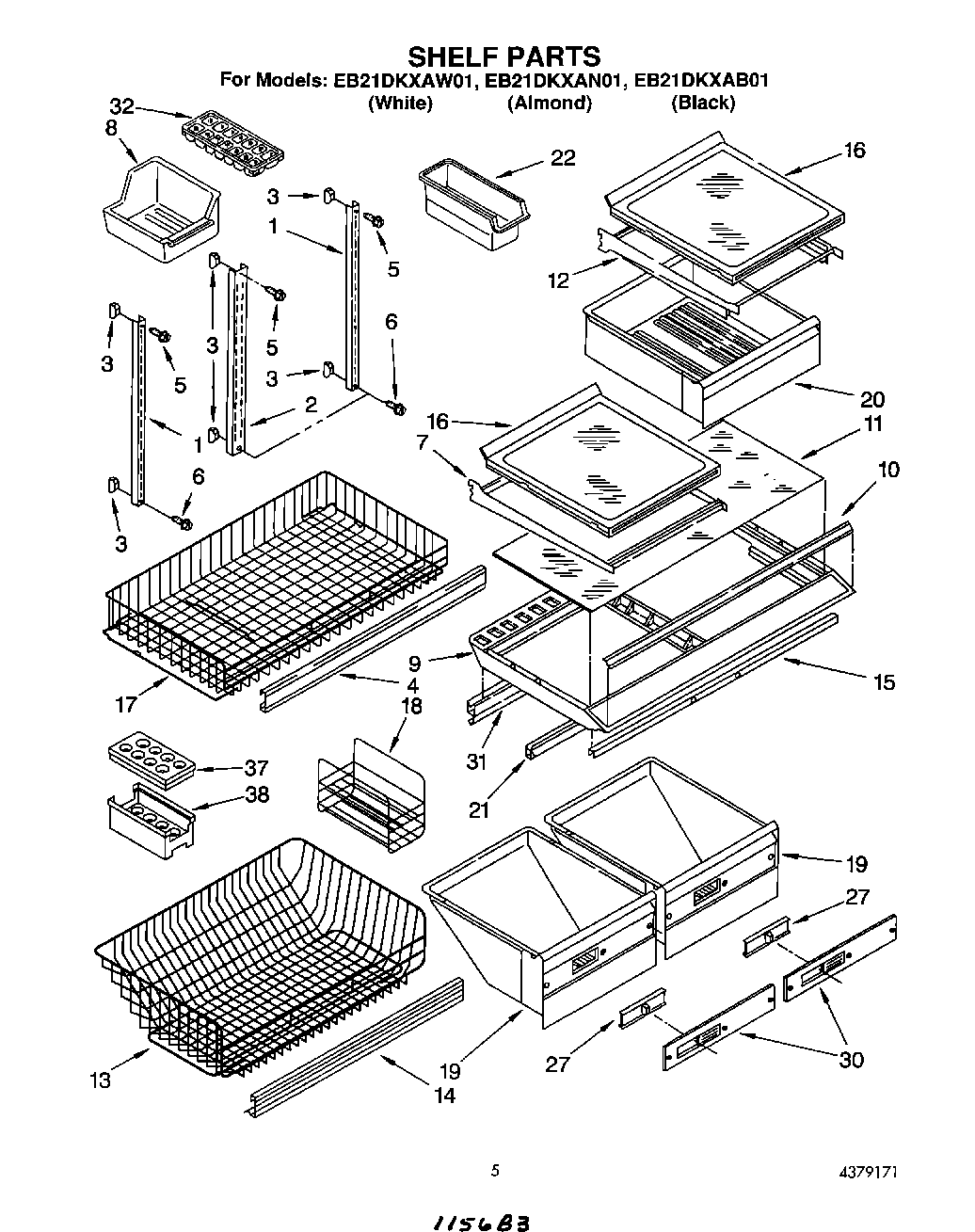

EB21DKXAW01 04 – SHELF, LIT/OPTIONAL

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	WPL LIT2162820
	Torx Key
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2160158
	833938 Whirlpool Refrigerator Terminal
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	WPL LIT2169125
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Trim, Basket
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	PAN-ICE
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Freezer Basket, (Lower)
14	Trim, Basket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	Freezer Basket (Upper)
18	Rack, Ice Tray
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	WP982704 Whirlpool Refrigerator Container
27	Slide, Crisper
30	Crisper Front
31	Gasket, Rear
32	WP841180A Whirlpool Microwave Glass Turntable Tray
37	Egg Container, Top
38	WPL 799833
38	876370 Whirlpool Refrigerator Insulation
38	606755 Whirlpool Refrigerator Bag
38	511873 Whirlpool Refrigerator Paint
38	WP503695 Whirlpool Refrigerator Sealer
38	212643 Whirlpool Refrigerator Permagum Sealer
38	WP505587 Whirlpool Refrigerator Sealer
38	Egg Container, Bottom
38	WP542638 Whirlpool Refrigerator Grease
38	TAPE, VINYL (3/4 X 108“)
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	WPL 876029
38	Door Reversal Instructions
