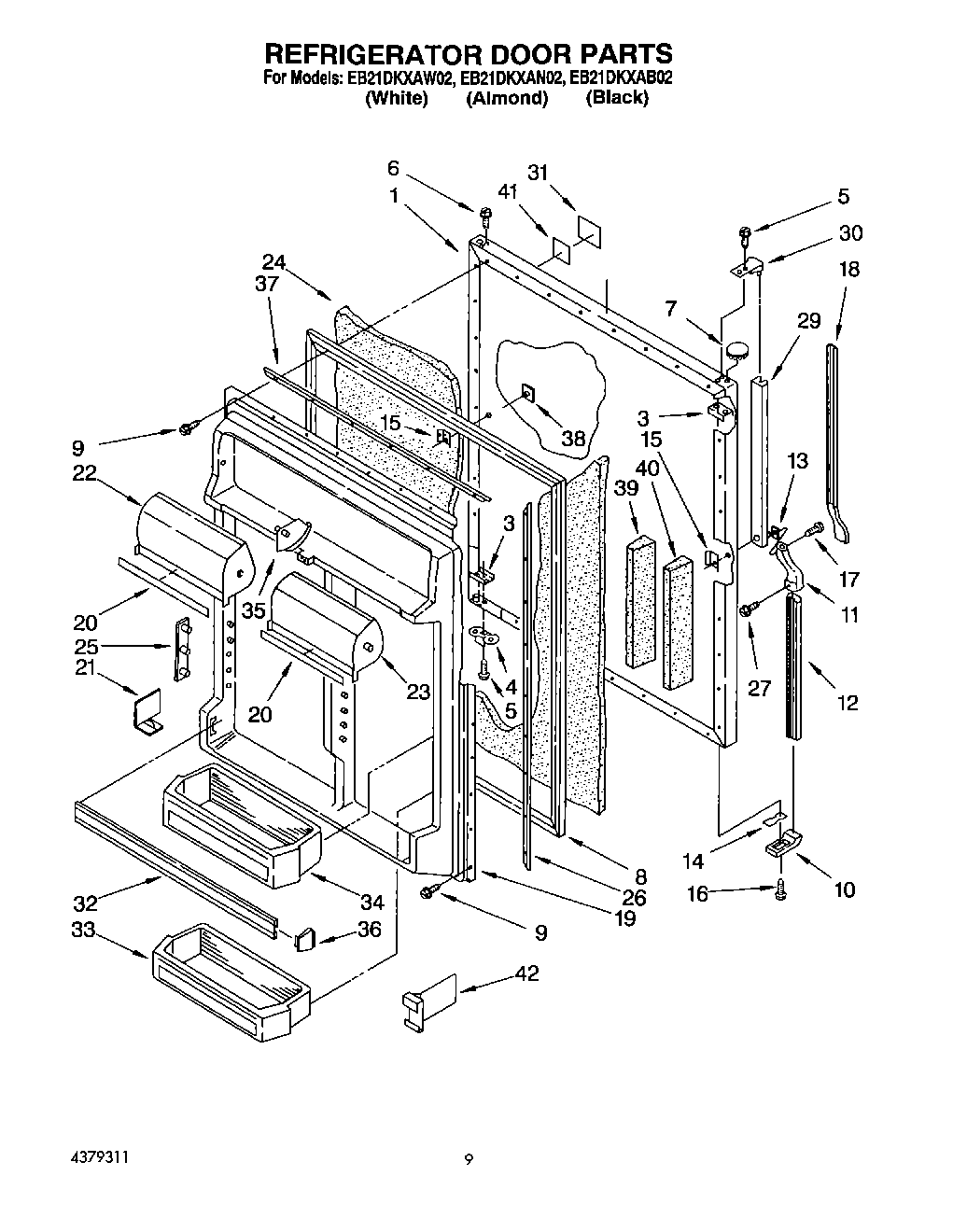

EB21DKXAW02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 24) (White)
1	Panel, Refrigerator Door (Also Order Item 24) (Almond)
1	Panel, Refrigerator Door (Also Order Item 24) (Black)
3	Plate, Tap (4)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic (White Model)
8	Door Gasket, Magnetic (Mist Beige)
9	WP489069 Whirlpool Compactor Screw
9	WP488729 Whirlpool Refrigerator Door Screw
9	SCREW
10	Handle End
11	Handle End, Side
12	Handle, Center (White Model)
12	Handle, Center (Almond Model)
12	Handle (Center) (For P
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488163 Whirlpool Refrigerator Screw
18	Insert, Handle (Black Model)
18	Insert, Handle (Almond Model)
18	Insert, Handle (White Model)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider-Door
22	Compartment Door,
23	Compartment Door
24	WPL 876029
25	Pin Plate (8)
26	Retainer Gasket, Side (2)
27	Screw
29	Retainer, Insert
30	WPL 1105804
31	Nameplate
31	Nameplate (Black Model)
31	WPL 2162698
32	WPL 2148616
33	WPL 2148549
34	WPL 2148550
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
37	Gasket Retainer, Top & Bottom
38	WP2189000 Whirlpool Refrigerator Handle Plug
38	Hole Plug, Handle (Almond)
38	WP2189009 Whirlpool Refrigerator Handle Plug
39	WPL 1122711
40	WPL 1122709
41	Tape Strip
42	Divider (3)
