EB21DKXBB00 04 – SHELF, LIT/OPTIONAL

EB21DKXBB00 04 – SHELF, LIT/OPTIONAL

Written by

in

EB21DKXBB00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	WPL LIT2170984
	WPL LIT2170894
	WPL LIT2169125
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	833938 Whirlpool Refrigerator Terminal
	350942 Whirlpool Spray Paint
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT677971

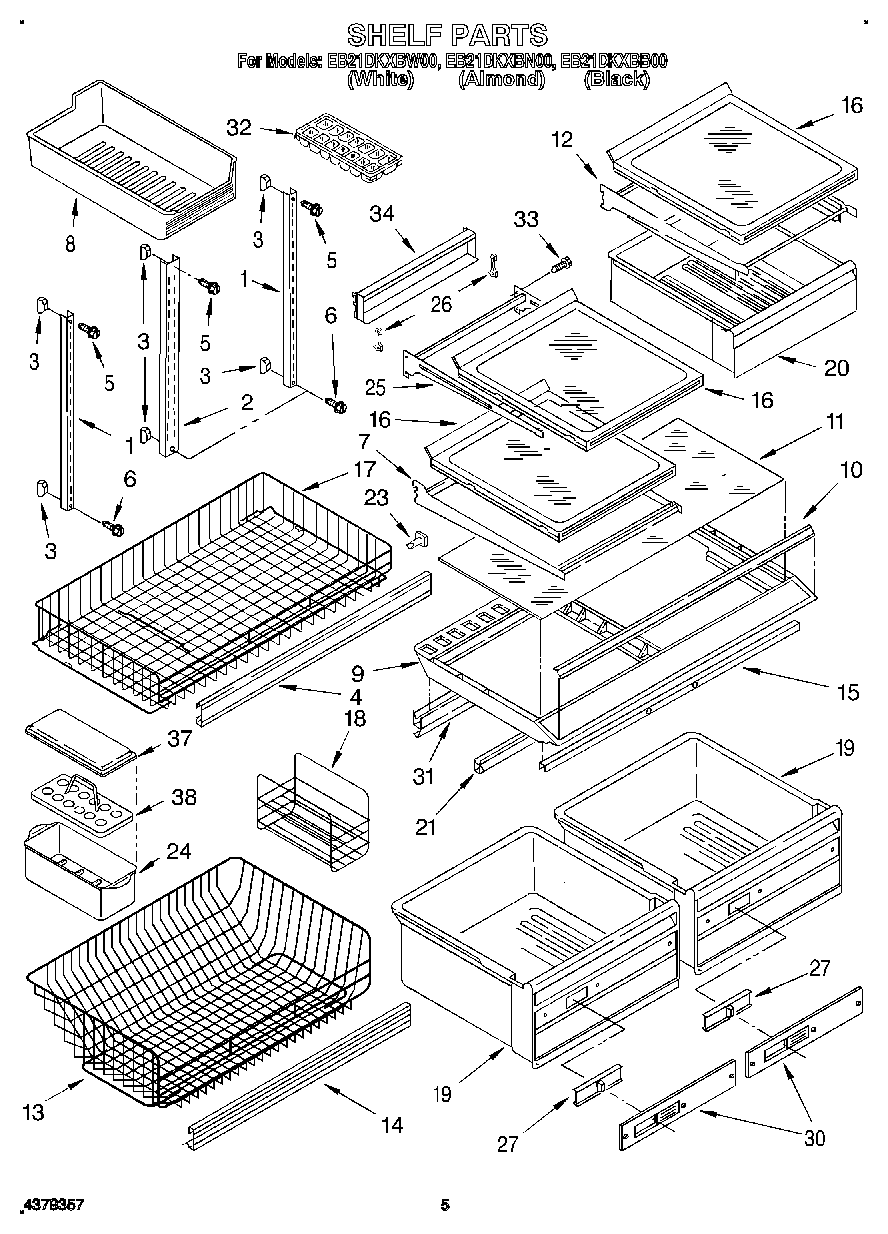

1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Trim, Basket
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	PAN-ICE
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Freezer Basket, (Lower)
14	Trim, Basket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	Freezer Basket (Upper)
18	Rack, Ice Tray
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
23	W10854959 Whirlpool Refrigerator Shelf Stud
24	W10136387A Whirlpool Refrigerator Egg Container
25	Shelf Assembly, Spillguard
26	Hook, Shelf
27	Slide, Humidity Control
30	Crisper Front
31	Gasket, Rear
32	WP841180A Whirlpool Microwave Glass Turntable Tray
33	Screw
34	Slide, Track
37	Cover
38	212643 Whirlpool Refrigerator Permagum Sealer
38	511873 Whirlpool Refrigerator Paint
38	606755 Whirlpool Refrigerator Bag
38	876370 Whirlpool Refrigerator Insulation
38	WP2177817 Whirlpool Refrigerator Egg Container
38	WPL 876029
38	WPL 799833
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	TAPE, VINYL (3/4 X 108“)
38	WP542638 Whirlpool Refrigerator Grease
38	WP505587 Whirlpool Refrigerator Sealer
38	WP503695 Whirlpool Refrigerator Sealer
38	Door Reversal Instructions
