EB21DKXDB00 05 – UNIT

EB21DKXDB00 05 – UNIT

Written by

in

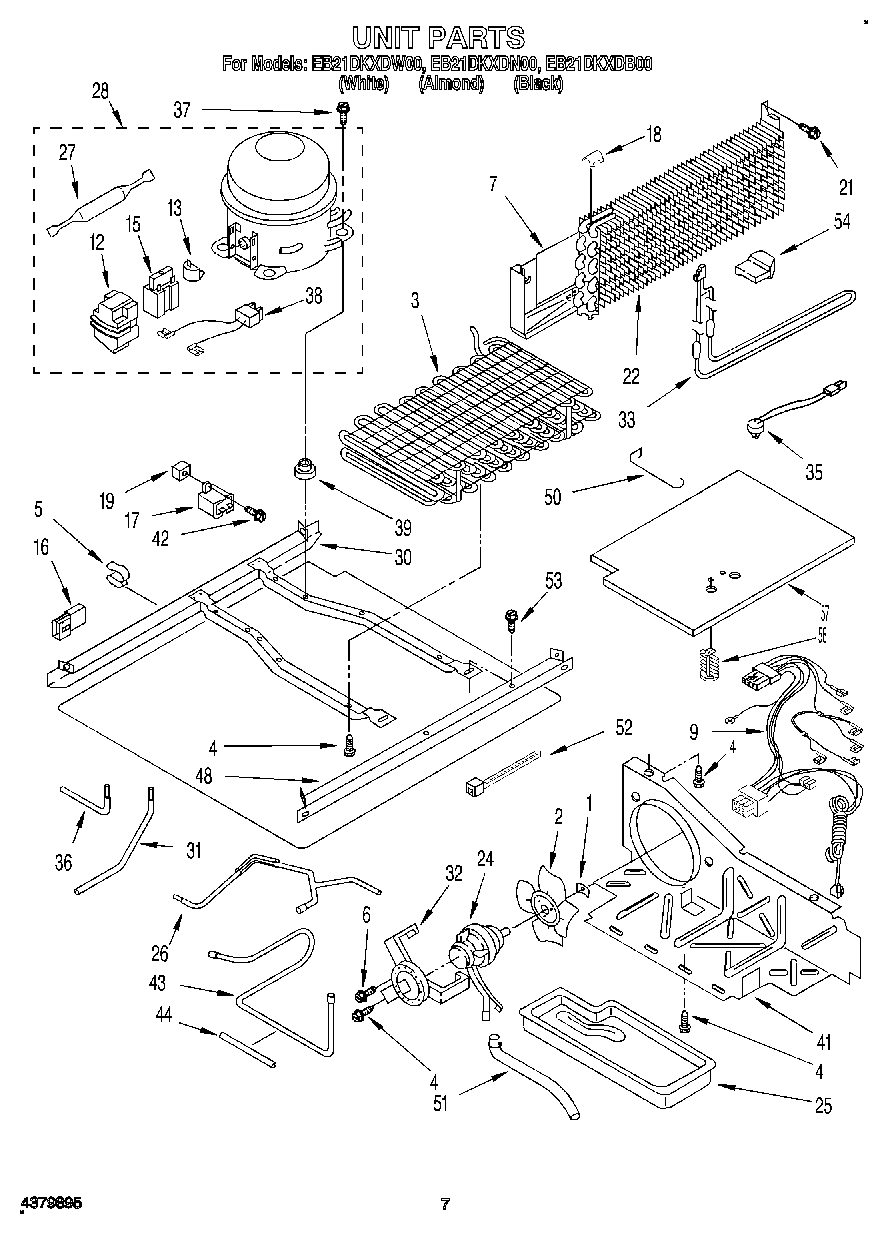

EB21DKXDB00 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan & Heat Shield Assy.
9Wire Assy
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
15Relay (See Overload)
16Housing Plug
17Capacitor
189791833 Whirlpool Refrigerator Clip
19Screw Grommet
21WP489478 Whirlpool Refrigerator Screw
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Tube, Discharge
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
302304903 Whirlpool Refrigerator Frame
31Tube, Condenser To Heat Loop
32Bracket, Motor
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
362154109 Whirlpool Refrigerator Tube
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43Tube, Suction
44SLEEVE
48Unit Mounting Rail
501105612 Whirlpool Fan Guard
51Extension, Drain Tube
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Support
57Cover-Unit Btm.
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58489396 Whirlpool Refrigerator Clip
