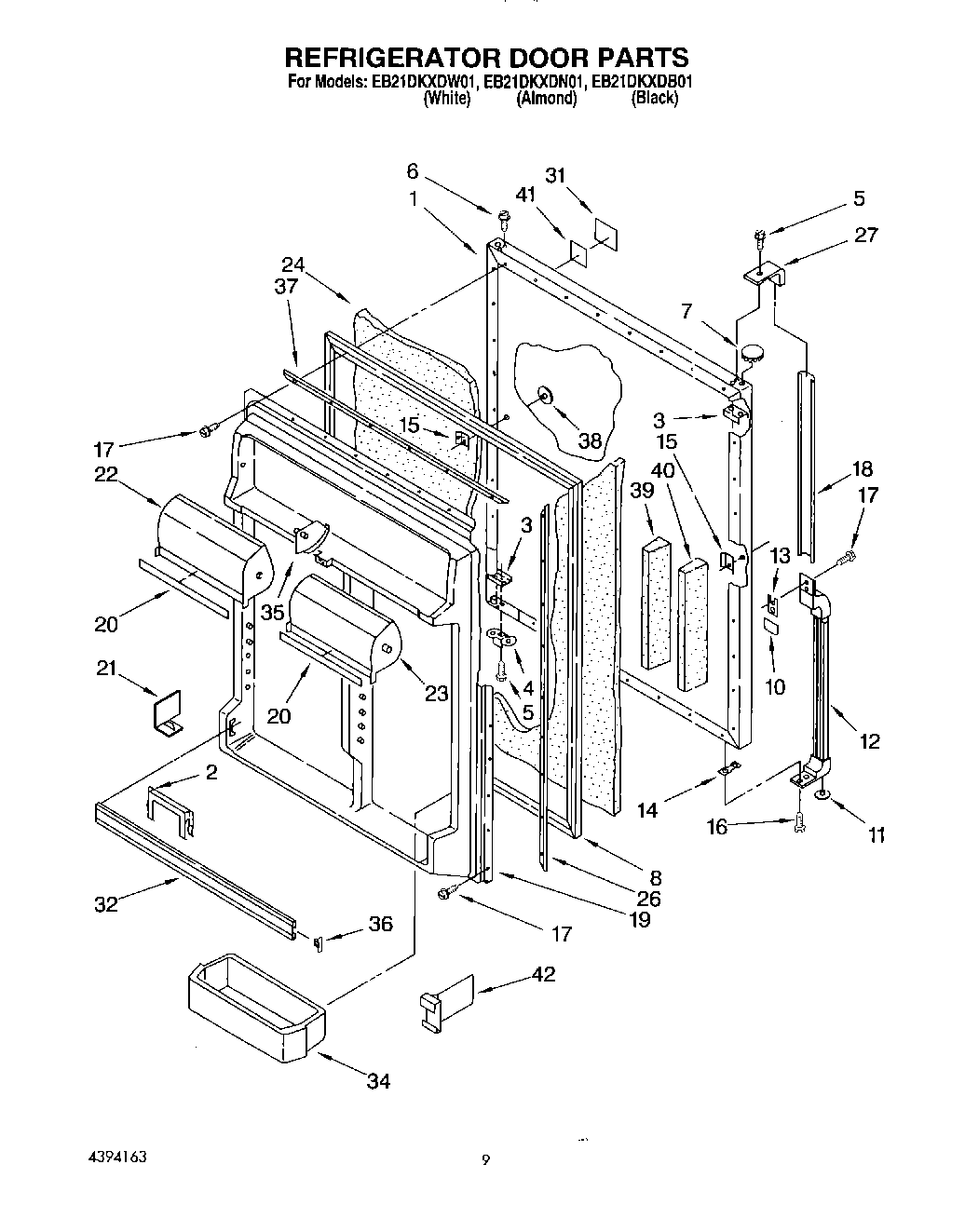

EB21DKXDB01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 24) (Almond)
1	Refrigerator Door Panel (Also Order Item 24) (White)
1	Panel, Refrigerator Door (Also Order Item 24) (Black)
2	Retainer, Bottle
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic (Black)
8	Door Gasket, Magnetic (Mist Beige)
10	Shim
11	Hole Plug (White)
11	Hole Plug (Almond)
11	Hole Plug (Black)
12	Handle, Center (White)
12	Handle, Center (Black)
12	Handle, Center (Almond)
13	Shim, Handle
14	Shim, Bottom
15	Screw Anchor (2)
16	WP488920 Whirlpool Refrigerator Screw
17	WP489442 Whirlpool Refrigerator Screw
18	Extension (Almond)
18	Extension (White)
18	Extension (Black)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider-Door
22	Compartment Door
23	Compartment Door
24	WPL 876029
26	Retainer Gasket, Side (2)
27	End Cap, Extension (Almond)
27	End Cap, Extension (Black)
27	End Cap, Extension (White)
31	Nameplate (White)
31	Nameplate (Almond Model)
31	Nameplate (Black)
32	Trim, Door Shelf
34	Bin, Door Shelf
35	WP1118001 Whirlpool Hinge Pin
36	Plug, Trim (2)
37	Gasket Retainer, Top & Bottom
38	Hole
38	WPL 2183045
38	WPL 2183046
39	WPL 2174751
40	WPL 1122709
41	Tape Strip
42	WPL 2171284
