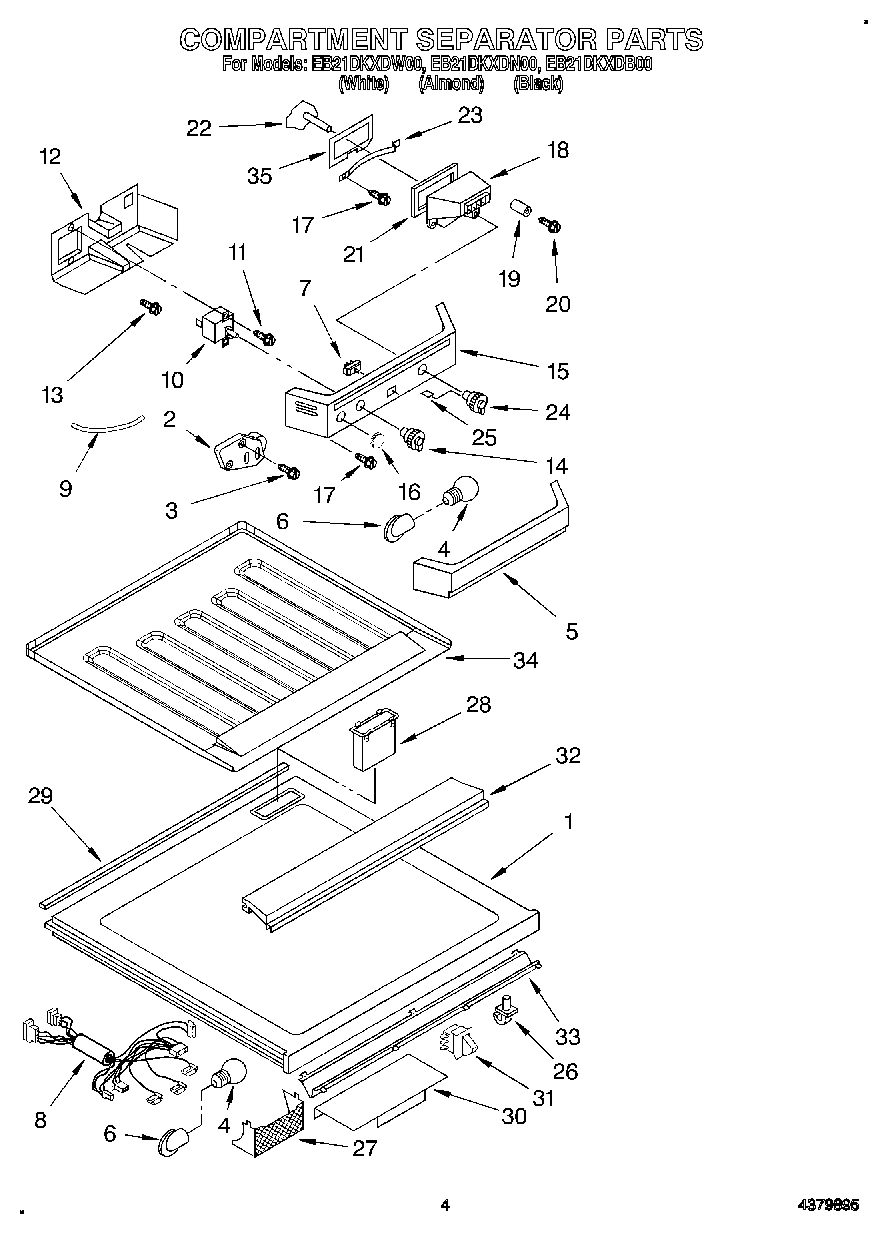

EB21DKXDN00 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Compartment Separator Assembly (Includes Center Rail and Heater Assembly)
2	WP2183400 Whirlpool Defrost Timer
3	Screw
4	W11679940 Whirlpool Refrigerator Light Bulb Assembly
5	Light Lens
6	4387478 Whirlpool Refrigerator Light Socket
7	WP938213 Whirlpool Refrigerator Power Switch
8	Wiring Assembly, Control Box
9	WP2196003 Whirlpool Refrigerator Bar Riser
10	WP4317800 Whirlpool Refrigerator Thermostat
12	Bracket, Thermostat
13	Screw, 8-32 x 3/8
14	Control Knob
15	Control Panel
16	Hole Plug
17	WP489478 Whirlpool Refrigerator Screw
18	Air Diffuser Assembly
19	836667 Whirlpool Refrigerator Spacer
20	WP488163 Whirlpool Refrigerator Screw
21	Gasket
22	Damper, Air
23	Retrainer, Air Dampener
24	Knob, Air Diffuser (Includes Item 25)
25	Knob, Retainer
26	Stud
27	Lens, Dispenser Light
28	Insert, Air Return
29	Gasket, Comp. Sep.
30	Lens-Light
31	W11457217 Whirlpool Refrigerator Rocker Switch Combination
32	Separator Top-Front
33	Air Deflector
34	Separator, Top-Rear
35	Gasket, Damper
