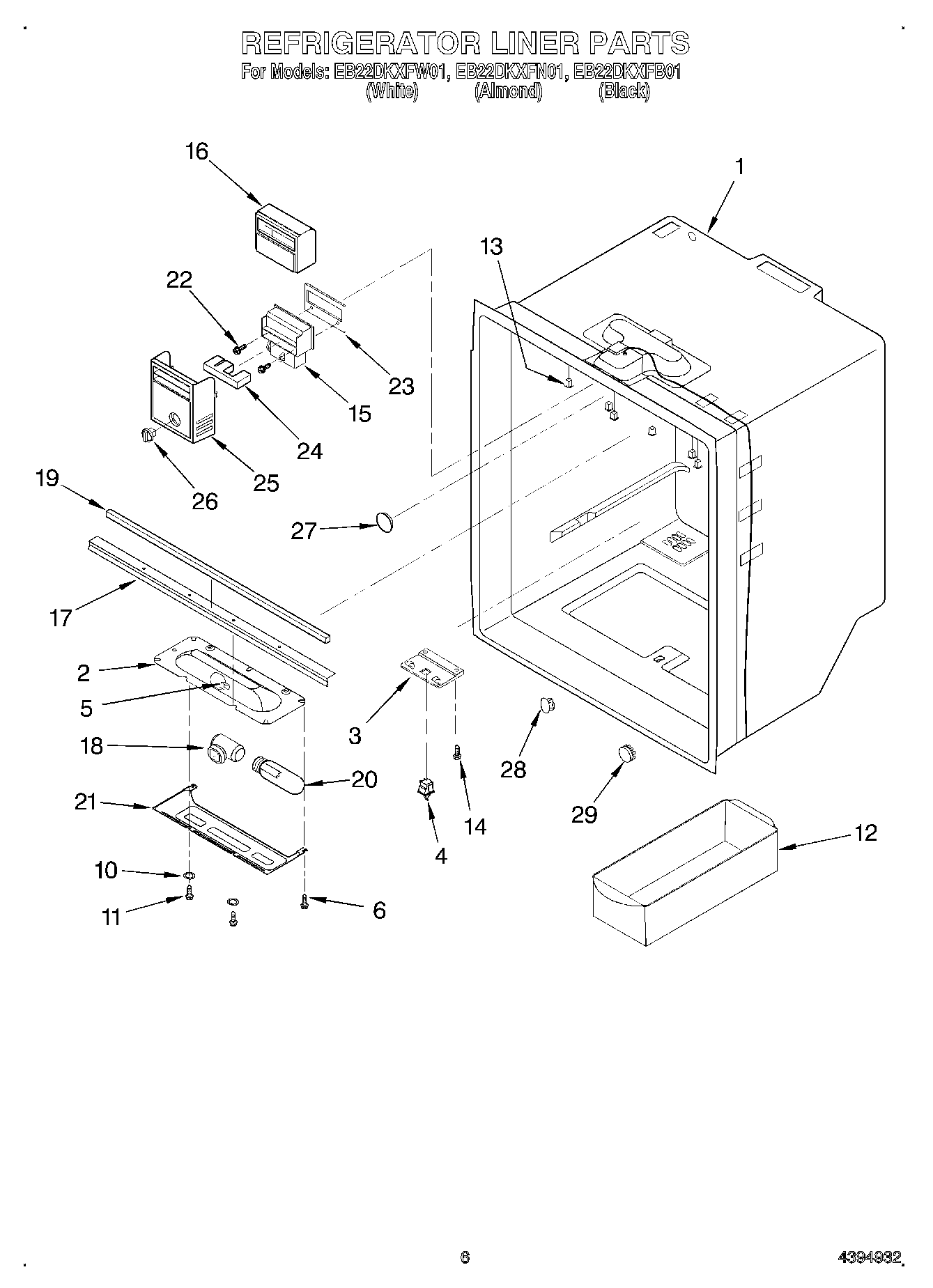

EB22DKXFB01 04 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	Cover, Light Switch
4	W11384469 Whirlpool Door Switch
5	WPL 4343682
6	WPL 4344167
10	Washer (4)
11	Screw
12	W10136387A Whirlpool Refrigerator Egg Container
13	Grommet
14	Frame & Roller Assembly (3)
15	Control, Damper
16	Insulation, Damper
17	Shield, Light
18	Socket, Dual
19	Gasket
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
21	Light Lens, Top
22	WP98165 Whirlpool Screw
23	Gasket, Damper
24	Insert
25	Cover, Control
26	Knob, Control
27	WP10442411 Whirlpool Bimetal Defrost Thermostat
28	Insulation, Plug
29	Plug, Button
