EB22DKXFB01 07 – SHELF, LIT/OPTIONAL

EB22DKXFB01 07 – SHELF, LIT/OPTIONAL

Written by

in

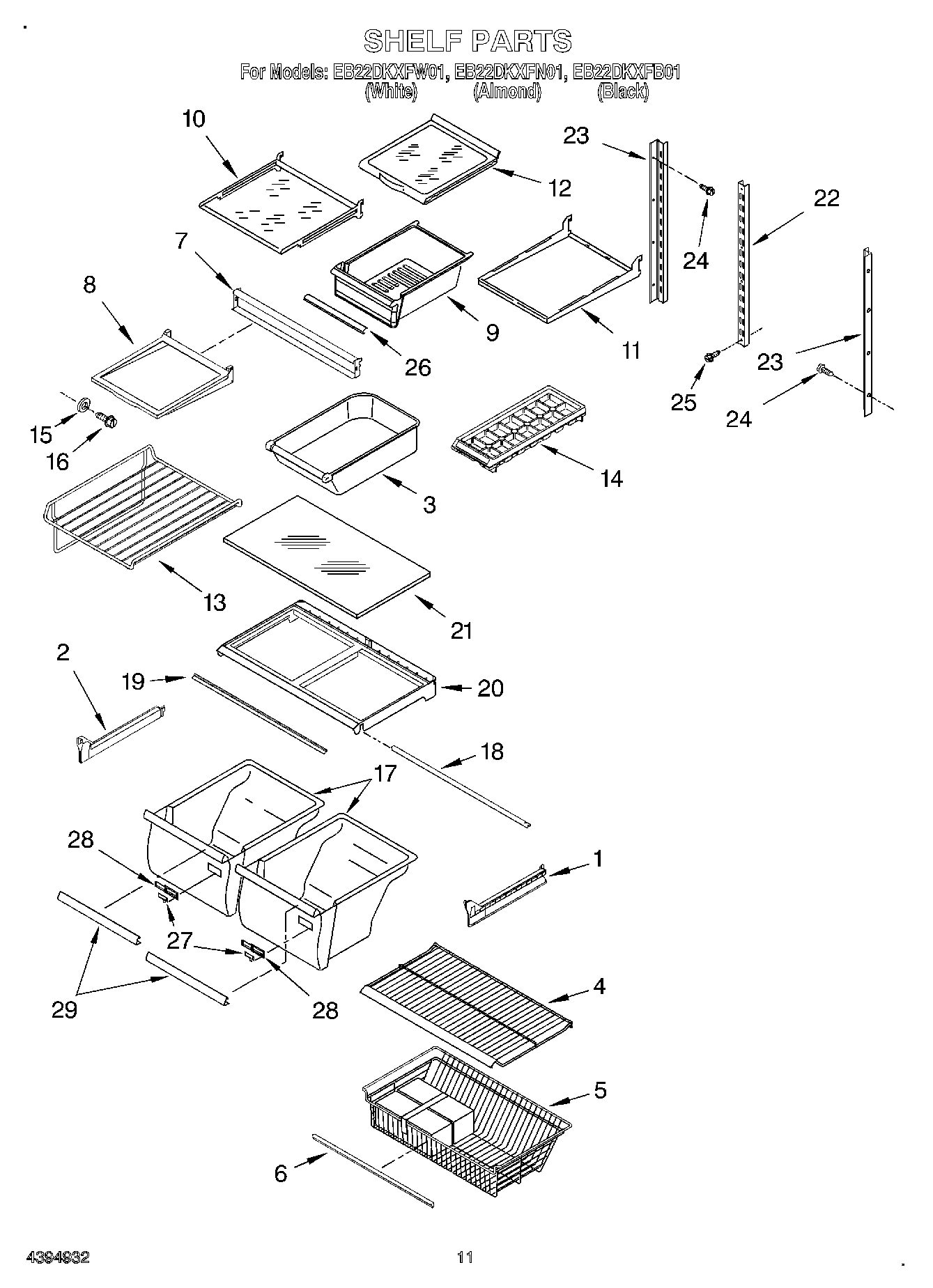

EB22DKXFB01 07 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT4344141
WPL LIT4344136
1Support, Crisper
2Support, Crisper
3Ice Bucket
4Shelf, Frz. Wire
5Basket, Freezer
6Washer
7Track, Shelf
8Shelf Assy, S/G
9Meat Pan
10Shelf, Meat Pan S/G
11Frame Assembly, Cantilever (3)
12Shelf, S/G, S/O
13Rack, Ice Tray
14WP841180A Whirlpool Microwave Glass Turntable Tray
15WP10972101 Whirlpool Refrigerator Spacer
16WP67006908 Whirlpool Refrigerator Screw
17Pan, Crisper
18WP2172748 Whirlpool Drawer Support
19Gasket
20Cover, Pan
21Glass, Crisper Cover
22Ladder, Center
23Ladder, Side
2467006425 Whirlpool Refrigerator Screw
25Screw
26WP2179243 Whirlpool Refrigerator Pan Trim
27WP2179342 Whirlpool Refrigerator Slide
28WP2179343 Whirlpool Refrigerator Control Body
29212643 Whirlpool Refrigerator Permagum Sealer
29Ice Container Assembly
29WPL 876029
29WP2179234 Whirlpool Refrigerator Pan Trim
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29350942 Whirlpool Spray Paint
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29833938 Whirlpool Refrigerator Terminal
29876370 Whirlpool Refrigerator Insulation
29WP503695 Whirlpool Refrigerator Sealer
2972032 Whirlpool Touch Up Paint Black
29285006 Whirlpool Spray
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29350930 Whirlpool White Spray Paint
