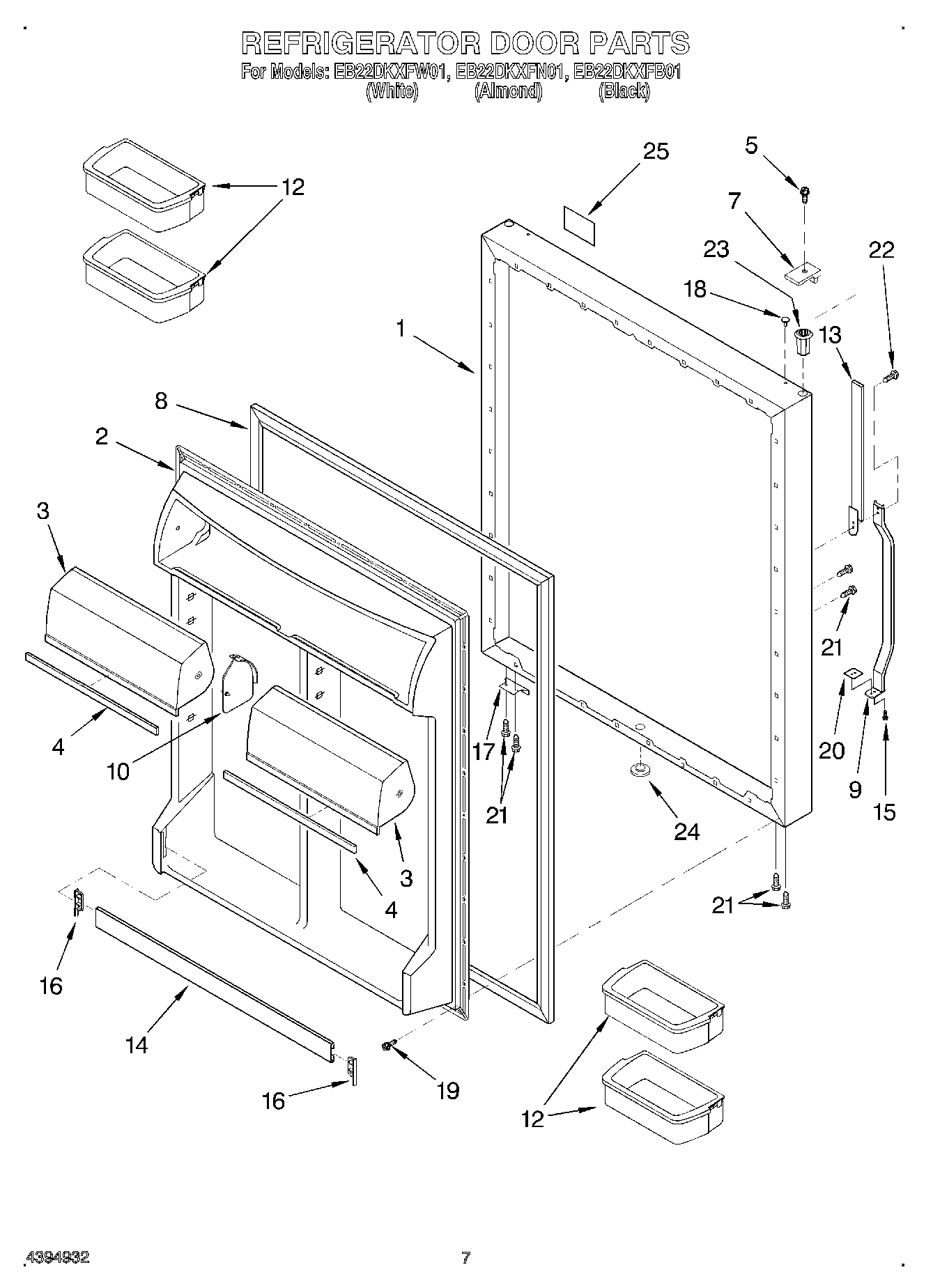

EB22DKXFN01 05 – REFRIGERATOR DOORadmin2025-04-26T12:43:14+00:00EB22DKXFN01 05 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Insulation) (White) |
| 1 | Refrigerator Door Panel (Includes Insulation) (Black) |
| 1 | Refrigerator Door Panel (Includes Insulation) (Almond) |
| 2 | Interior Panel |
| 3 | Door, Compartment (Right Side) |
| 3 | Door, Compartment (Left Side) |
| 4 | Trim, Comp. Door |
| 5 | WPL 4344151 |
| 7 | Cap, Handle Top (Black) |
| 7 | Cap, Handle Top (Almond) |
| 7 | Cap, Handle Top (White) |
| 8 | WP12550115Q Whirlpool Door Gasket |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Door Handle (Black) |
| 9 | Door Handle (Almond) |
| 9 | Door Handle (White) |
| 10 | WP1118001 Whirlpool Hinge Pin |
| 12 | Shelf Bin (4) |
| 13 | Extension, Handle (Almond) |
| 13 | Extension, Handle (Black) |
| 13 | Extension, Handle (White) |
| 14 | Trim, Door Shelf |
| 15 | Screw |
| 16 | WPL 4344346 |
| 17 | Stop, Door |
| 18 | WP2189009 Whirlpool Refrigerator Handle Plug |
| 18 | Hole Plug (Almond) |
| 18 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 19 | WPL 4343811 |
| 20 | Shim |
| 21 | WPW10348409 Whirlpool Screw |
| 22 | WPL 4344167 |
| 23 | Bushing (Black) |
| 23 | WPL 4344362 |
| 24 | Plug, Button (Almond) |
| 24 | WPL 4344227 |
| 24 | Plug, Button (Black) |
| 25 | Nameplate (Black) |
| 25 | Nameplate (Almond) |
| 25 | Nameplate (White) |
