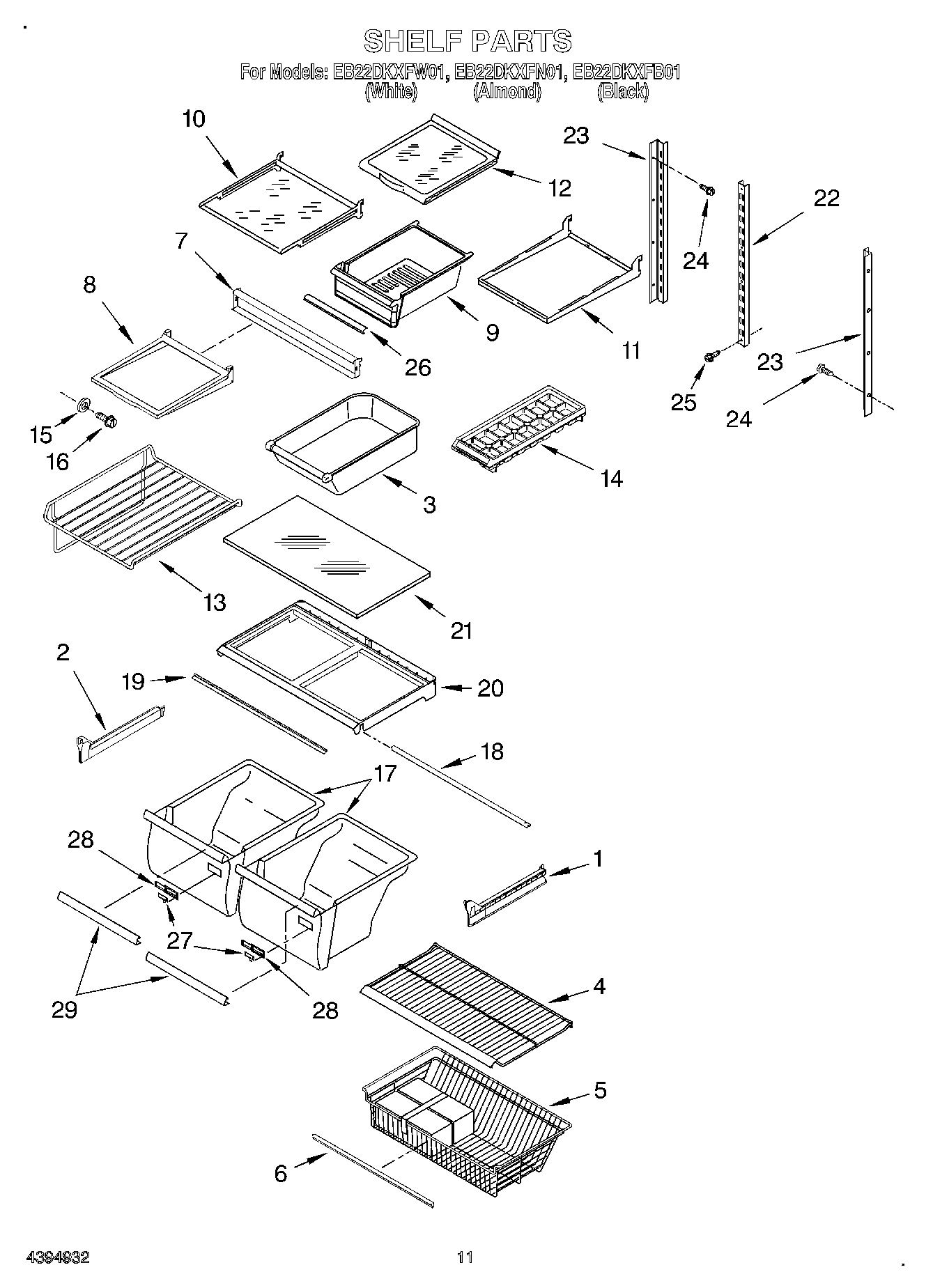

EB22DKXFN01 07 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT4344141
	WPL LIT4344136
1	Support, Crisper
2	Support, Crisper
3	Ice Bucket
4	Shelf, Frz. Wire
5	Basket, Freezer
6	Washer
7	Track, Shelf
8	Shelf Assy, S/G
9	Meat Pan
10	Shelf, Meat Pan S/G
11	Frame Assembly, Cantilever (3)
12	Shelf, S/G, S/O
13	Rack, Ice Tray
14	WP841180A Whirlpool Microwave Glass Turntable Tray
15	WP10972101 Whirlpool Refrigerator Spacer
16	WP67006908 Whirlpool Refrigerator Screw
17	Pan, Crisper
18	WP2172748 Whirlpool Drawer Support
19	Gasket
20	Cover, Pan
21	Glass, Crisper Cover
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	WP2179243 Whirlpool Refrigerator Pan Trim
27	WP2179342 Whirlpool Refrigerator Slide
28	WP2179343 Whirlpool Refrigerator Control Body
29	212643 Whirlpool Refrigerator Permagum Sealer
29	Ice Container Assembly
29	WPL 876029
29	WP2179234 Whirlpool Refrigerator Pan Trim
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	350942 Whirlpool Spray Paint
29	Almond (Uncut)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	350956 Whirlpool Spray Assembly
29	833938 Whirlpool Refrigerator Terminal
29	876370 Whirlpool Refrigerator Insulation
29	WP503695 Whirlpool Refrigerator Sealer
29	72032 Whirlpool Touch Up Paint Black
29	285006 Whirlpool Spray
29	WPL 799833
29	Enamel, Black (1 Qt. Uncut)
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	TAPE, VINYL (3/4 X 108“)
29	WP542638 Whirlpool Refrigerator Grease
29	WP505587 Whirlpool Refrigerator Sealer
29	350930 Whirlpool White Spray Paint
