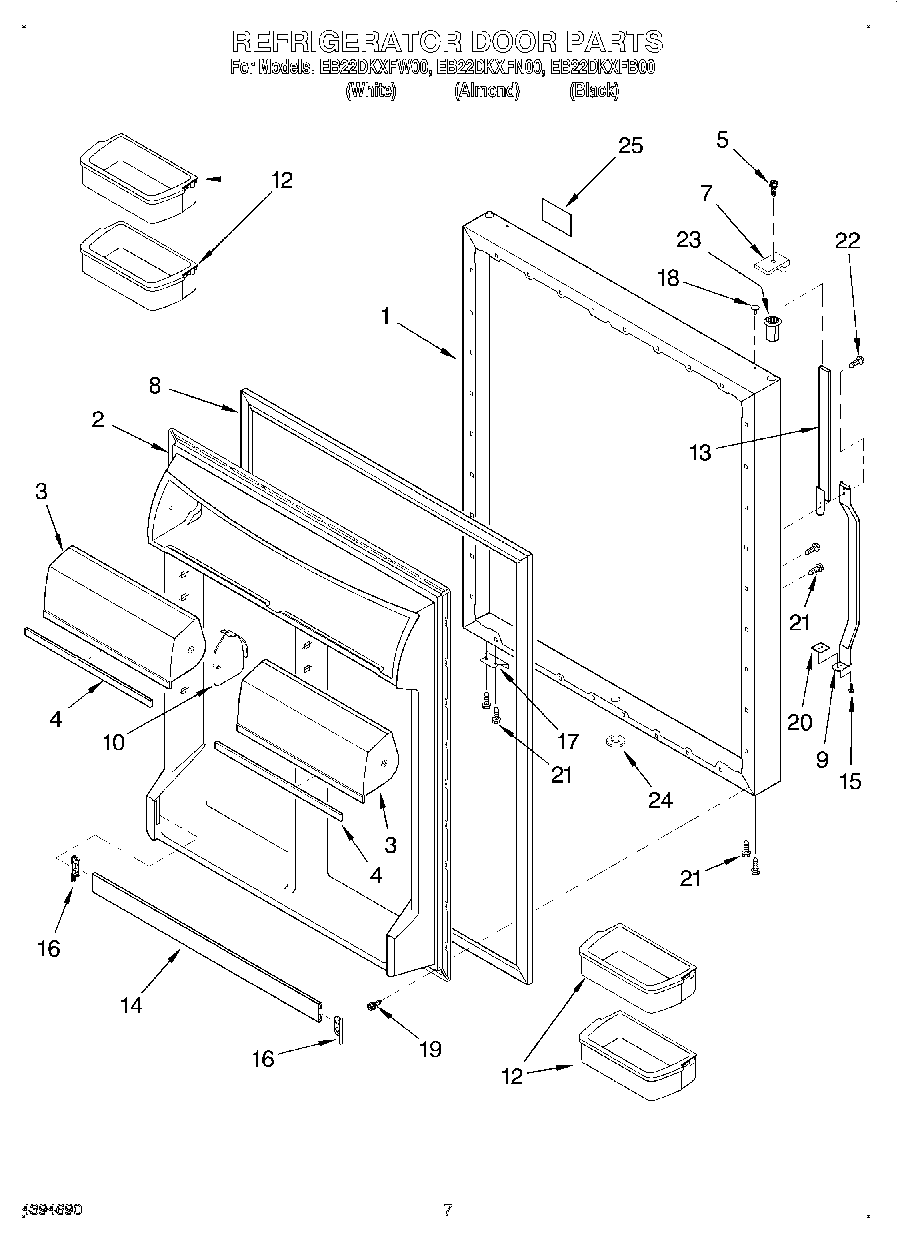

EB22DKXFW00 05 – REFRIGERATOR DOOR

EB22DKXFW00 05 – REFRIGERATOR DOOR

Written by

in

EB22DKXFW00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (White)
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation) (Almond)
2Interior Panel
3Door, Compartment (Right Side)
3Door, Compartment (Left Side)
4Trim, Comp. Door
5WPL 4344151
7Cap, Handle Top (Black)
7Cap, Handle Top (Almond)
7Cap, Handle Top (White)
8WP12550115Q Whirlpool Door Gasket
8Door Gasket, Magnetic (Black)
9Door Handle (Black)
9Door Handle (Almond)
9Door Handle (White)
10WP1118001 Whirlpool Hinge Pin
12Shelf Bin (4)
13Extension, Handle (Almond)
13Extension, Handle (Black)
13Extension, Handle (White)
14Trim, Door Shelf
15Screw
16WPL 4344346
17Stop, Door
18WP2189009 Whirlpool Refrigerator Handle Plug
18WP2189000 Whirlpool Refrigerator Handle Plug
18Hole Plug (Almond)
19WPL 4343811
20Shim
21WPW10348409 Whirlpool Screw
22WPL 4344167
23WPL 4344362
23Bushing (Black)
24Plug, Button (Almond)
24Plug, Button (Black)
24Shelf Bin (3)
25Nameplate (Black)
25Nameplate (Almond)
25Nameplate (White)
