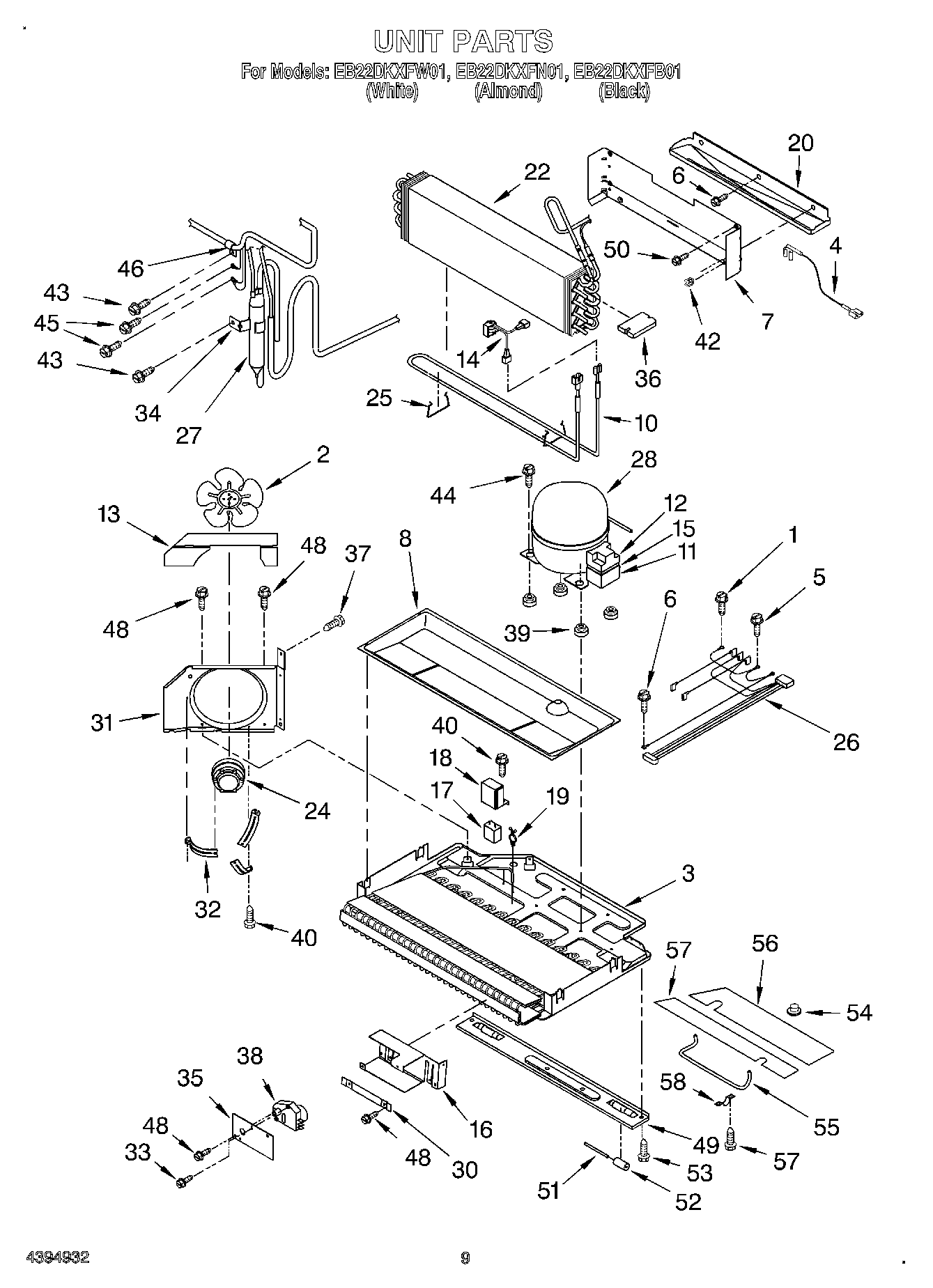

EB22DKXFW01 06 – UNIT

Products

Position	Product
1	12992301 Whirlpool Refrigerator Screw
2	WPL 4344271
3	Condenser & Pan Assembly
4	Wire-Jumper
5	WP489399 Whirlpool Refrigerator Screw
6	WPL 4343860
7	Heat Shield
8	Drain Pan
10	WP10428409 Whirlpool Refrigerator Evaporator Heater
11	WPL 4343852
12	WP4344040 Whirlpool Refrigerator Overload
13	WPL 4344275
14	WP10442411 Whirlpool Bimetal Defrost Thermostat
15	WPW10189190 Whirlpool Start Device
16	Bracket, Timer
17	WPL 4343851
18	WPL 4344277
19	WPL 4343969
20	Drain Pan
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	W11673433 Whirlpool Clip
26	Harness
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	Washer
31	WPL 4344269
32	WPL 4344272
33	Screw (2)
34	WPL 4343763
35	Cover, Timer
36	Block, Evaporator
37	WPL 4343759
38	R0131577 Whirlpool Defrost Timer
39	WPL 4343845
40	Screw
42	Clip, Evap Motor
43	WP489069 Whirlpool Compactor Screw
44	WPL 4343847
45	Screw
46	WPL 4343661
48	WPL 4343749
49	Cabinet, Brace
50	67006425 Whirlpool Refrigerator Screw
51	WPL 4344289
52	WPL 4344288
53	WPL 4344292
54	A3076901 Whirlpool Refrigerator Plug
55	Drain Tube
56	Insulation
57	Insulation, Slope
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (5/8“)
58	Clamp, Tube
58	VALVE, ACCESS (1/2“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
