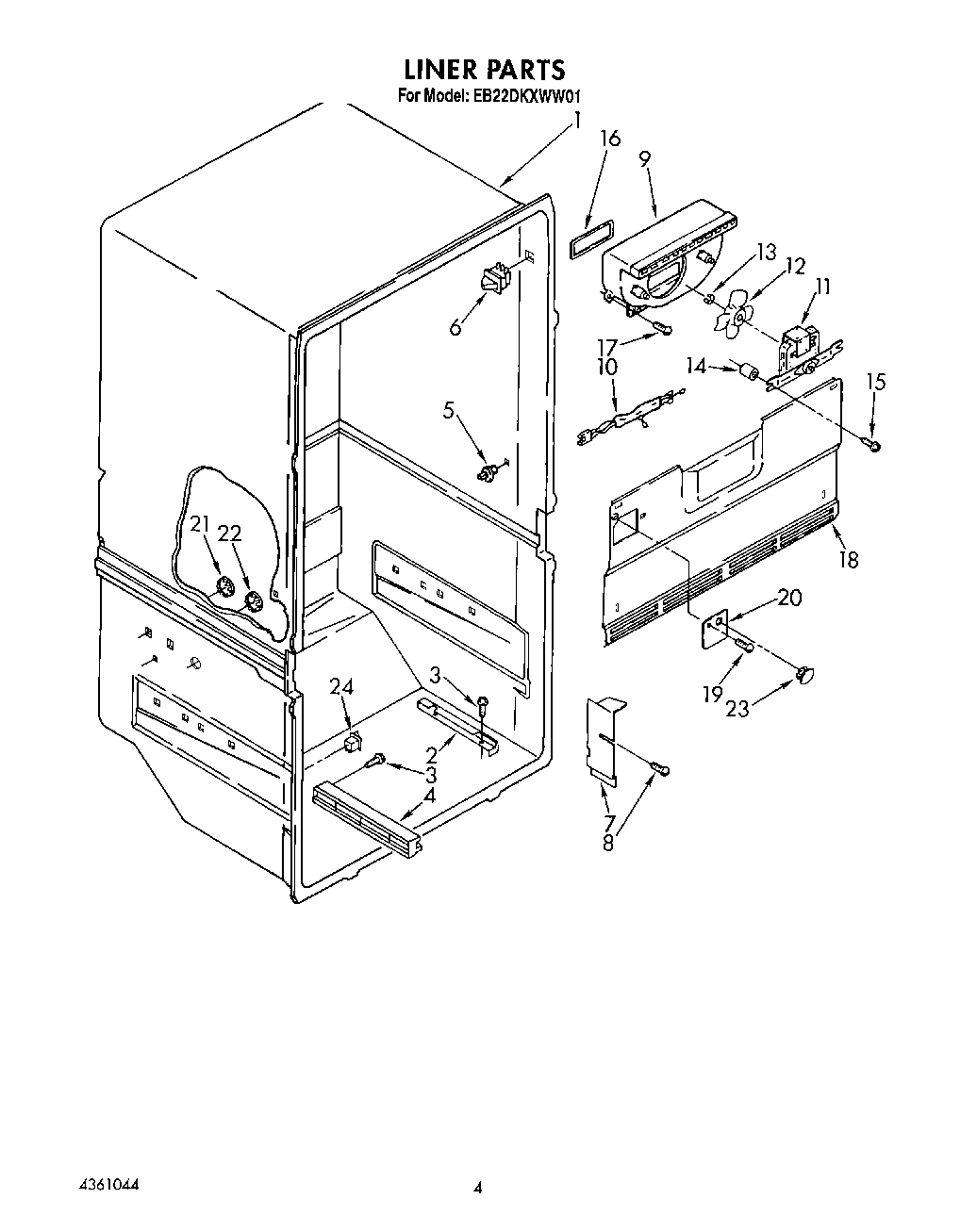

EB22DKXWN01 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Basket (Left Side)
2	Slide, Basket (R.S)
3	W10759522 Whirlpool Screw
4	Shelf Track, (Right Side)
4	Shelf Track, (Left Side)
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	W11384469 Whirlpool Door Switch
7	Electrical Shield Extension
8	Screw, 8-32 x 3/8
9	Scroll, Fan
10	Wiring Assembly, Fan Motor
11	Fan Motor
12	Blade, Fan
13	Ring, Compression
14	Fan Grommet (2)
15	Screw (2)
16	Gasket, Fan Scroll
17	WP489478 Whirlpool Refrigerator Screw
18	Cover, Evaporator
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP2217784 Whirlpool Refrigerator Cover
22	WP941839 Whirlpool Refrigerator Button Plug
23	Hole Plug
24	W11457217 Whirlpool Refrigerator Rocker Switch Combination
