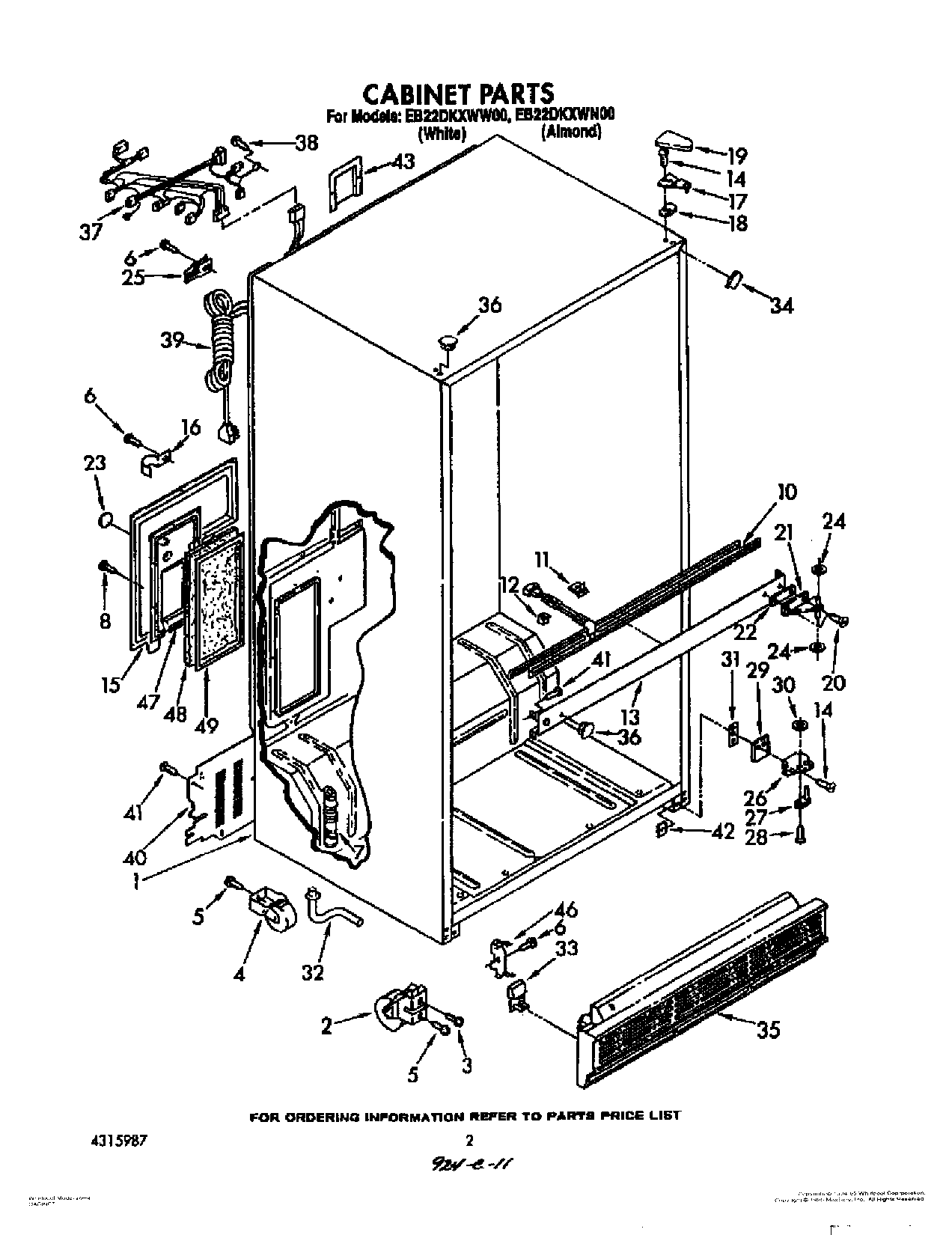

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | Screw |
| 4 | Roller, Rear (2) |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 6 | WP489478 Whirlpool Refrigerator Screw |
| 7 | Fitting, Drain |
| 8 | WP489464 Whirlpool Refrigerator Screw |
| 10 | Heater, Mullion |
| 11 | Clip, Mullion (3) |
| 12 | Spacer (3) |
| 13 | Center Rail (White) |
| 13 | Center Rail (Almond) |
| 14 | Screw |
| 15 | Cover, Flush |
| 16 | Tube Clamp (2) |
| 17 | Hinge, Top |
| 18 | Shim, Hinge Top |
| 19 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 20 | Screw |
| 21 | Hinge, Center |
| 22 | Shim, Center (Repair) |
| 22 | Shim, Hinge Center |
| 23 | Hole Seal |
| 24 | WP488296 Whirlpool Washer Refrigerator |
| 25 | 549193 Whirlpool Refrigerator Power Clamp |
| 26 | Hinge Butt, Bottom |
| 27 | Hinge Pin, Bottom |
| 28 | Screw 10-32 x 5/16 |
| 29 | Shim, Bottom Hinge |
| 30 | WP487802 Whirlpool Refrigerator Washer |
| 31 | Spacer, Hinge |
| 32 | Extension, Drain Tube |
| 33 | Corner Filler, Grille |
| 34 | Filler, Wrapper (Almond) |
| 34 | Filler, Wrapper (White) |
| 35 | Grille (Black) |
| 36 | Hole Plug (4) (White) |
| 36 | Hole Plug (4) (Almond) |
| 37 | Cabinet Wiring Assembly |
| 38 | WP250830 Whirlpool Refrigerator Screw |
| 39 | Cord, Service |
| 40 | Cover, Unit |
| 42 | Tap Plate (2) |
| 43 | Cover, Wiring |
| 46 | WP2155013 Whirlpool Refrigerator Clip |
| 47 | Plug Cover |
| 48 | Insulation |
| 49 | Sealing Gasket |
