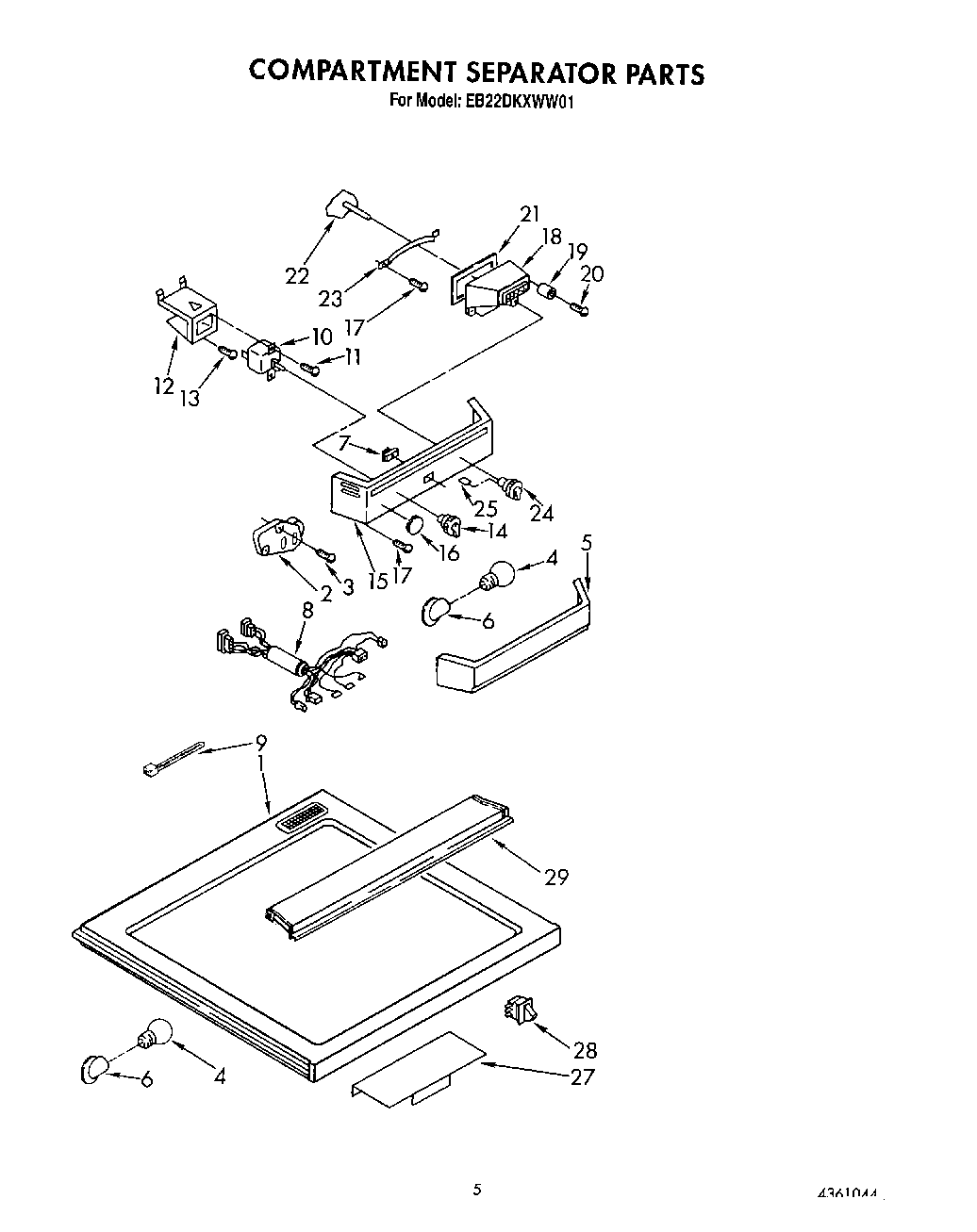

EB22DKXWW01 04 – COMPARTMENT SEPARATOR

EB22DKXWW01 04 – COMPARTMENT SEPARATOR

Written by

in

EB22DKXWW01 04 – COMPARTMENT SEPARATOR

Products

PositionProduct
1Compartment Separator Assembly (Includes Center Rail and Heater Assembly)
1Compartment (Almond Separator Assembly (Includes Center Rail and Heater Assembly))
2Defrost Timer
3WP488163 Whirlpool Refrigerator Screw
4W11679940 Whirlpool Refrigerator Light Bulb Assembly
5Light Lens
64387478 Whirlpool Refrigerator Light Socket
7WP938213 Whirlpool Refrigerator Power Switch
8Wiring Assembly, Control Box
9Cable Tie
10WP819470 Whirlpool Refrigerator Thermostat
11WP965173 Whirlpool Dishwasher Screw
12Bracket, Thermostat
13Screw, 8-32 x 3/8
14Control Knob
15Control Panel Assembly (Includes Item 16)
16940014 Whirlpool Refrigerator Primary Button Plug
17WP489478 Whirlpool Refrigerator Screw
18Diffuser Assembly, Air
19836667 Whirlpool Refrigerator Spacer
20Screw, 8 x 1-1/4 (3)
21Gasket
22Damper, Air
23Retrainer, Air Dampener
24Knob, Air Diffuser (Includes Item 25)
25Knob, Retainer
27Lens, Dispenser Light
28W11457217 Whirlpool Refrigerator Rocker Switch Combination
29Separator Top-Front
