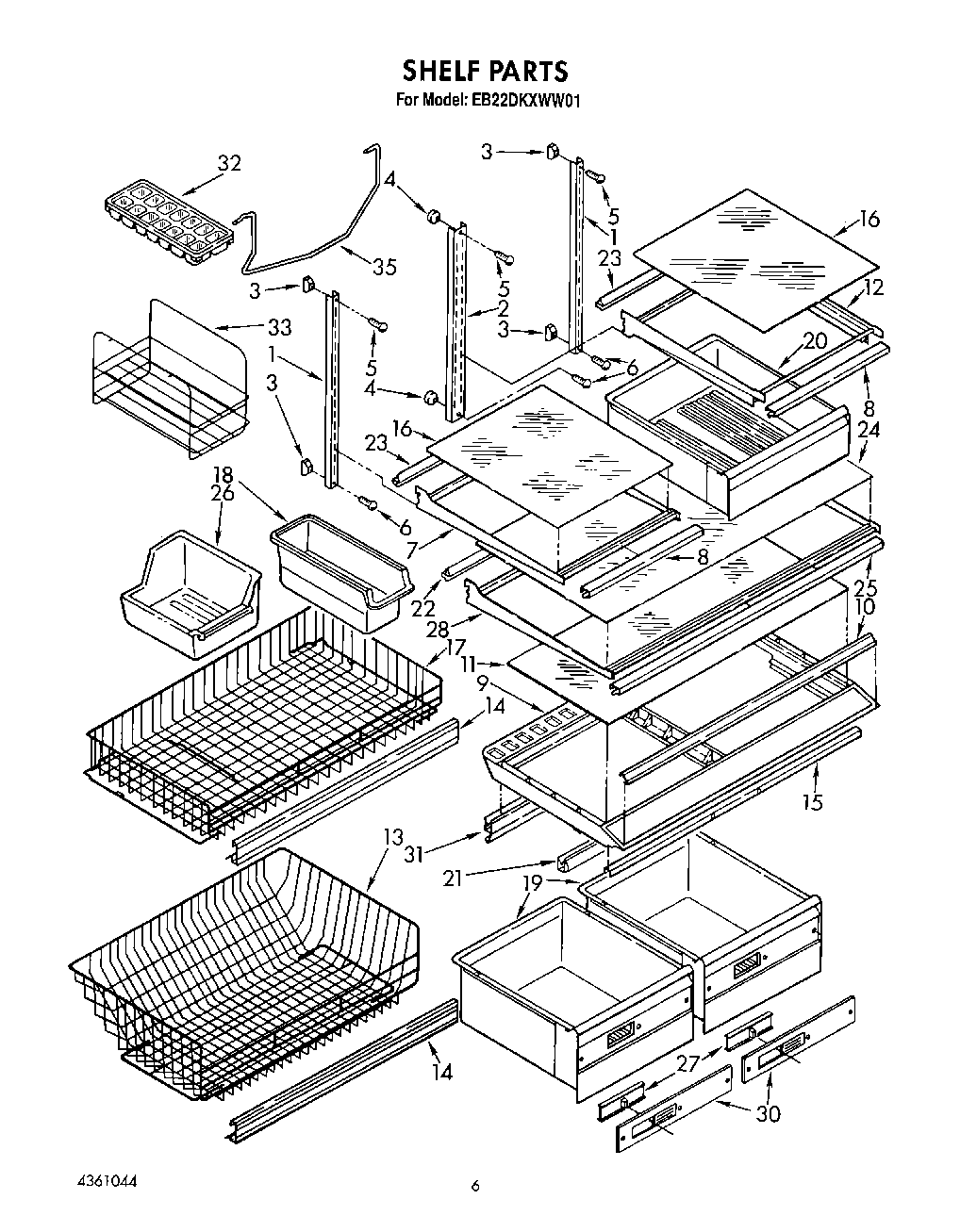

EB22DKXWW01 05 – SHELF, LIT/OPTIONAL

EB22DKXWW01 05 – SHELF, LIT/OPTIONAL

Written by

in

EB22DKXWW01 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT4361044
WPL LIT2149156
WPL LIT2148869
WPL LIT1127423
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Screw Support, Center Ladder (2)
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (3)
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Basket-Freezer
14Trim, Basket
15WP2172748 Whirlpool Drawer Support
16Glass, Shelf
17Basket-Freezer
18WP982704 Whirlpool Refrigerator Container
19Pan, Crisper
20Pan, Meat
21Gasket-Front
22Reflector, Shelf
23Reflector, Shelf
24Glass, Full Shelf
25Trim, Shelf
26PAN-ICE
27Slide
28Shelf, Full Cantilever
30Crisper Pan, Front
31Gasket, Rear
32WP841180A Whirlpool Microwave Glass Turntable Tray
33Shelf, Ice Tray
35Almond (Uncut)
35Leveler (Thinner)
35350930 Whirlpool White Spray Paint
35350956 Whirlpool Spray Assembly
3572017 Whirlpool Appliance Touch-Up Paint White
35799344 Whirlpool Refrigerator Paint
35212643 Whirlpool Refrigerator Permagum Sealer
35WP72107 Whirlpool Touchup
35350942 Whirlpool Spray Paint
35285006 Whirlpool Spray
35WPL 876029
35WPL 799833
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108“)
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35833938 Whirlpool Refrigerator Terminal
35606755 Whirlpool Refrigerator Bag
35511873 Whirlpool Refrigerator Paint
35Icemaker Arm (When Ordering Field Installable Icemaker This Arm Must Be Used)
3572032 Whirlpool Touch Up Paint Black
