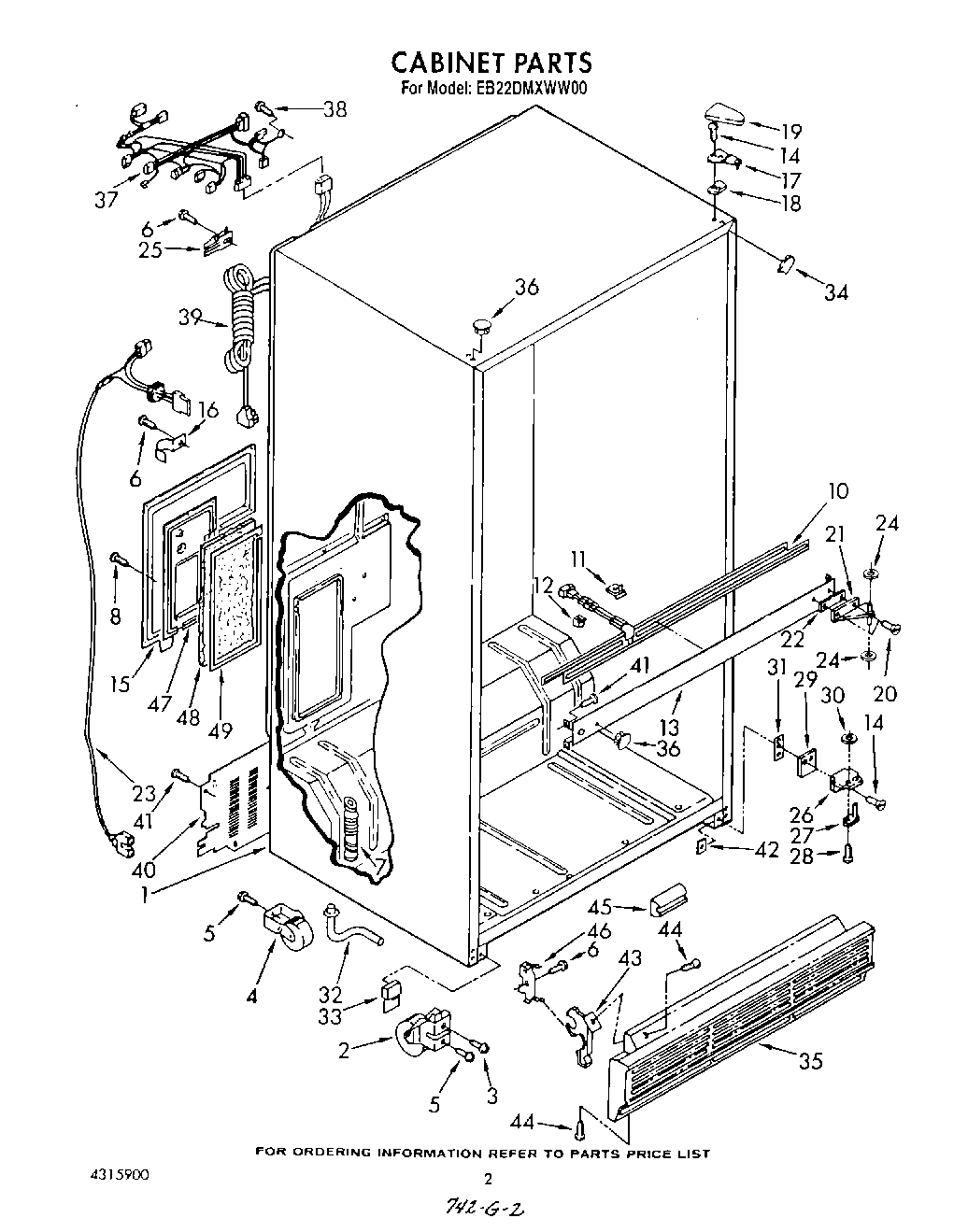

EB22DMXWW00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	Roller, Rear (2)
5	WP489427 Whirlpool Refrigerator Screw
6	WP489478 Whirlpool Refrigerator Screw
7	Fitting, Drain
8	WP489464 Whirlpool Refrigerator Screw
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Almond)
14	Screw
15	Cover, Flush
16	Tube Clamp (2)
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
23	Wiring Assembly, Icemaker
24	WP488296 Whirlpool Washer Refrigerator
25	549193 Whirlpool Refrigerator Power Clamp
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom Hinge
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer, Hinge
32	Extension, Drain Tube
33	Corner Filler, Grille
34	Filler, Wrapper (White)
34	Filler, Wrapper (Almond)
35	Grille
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (White)
37	Cabinet Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cord, Service
40	Cover, Unit
42	Tap Plate (2)
43	WP944224 Whirlpool Refrigerator Support
44	Screw, 8-22 x 5/16 (4)
45	Bumper, Grille
46	Clip, Grille Retainer (2)
47	Plug Cover
48	Insulation
49	Sealing Gasket
