EB22DMXWW00 03 – LINER

EB22DMXWW00 03 – LINER

Written by

in

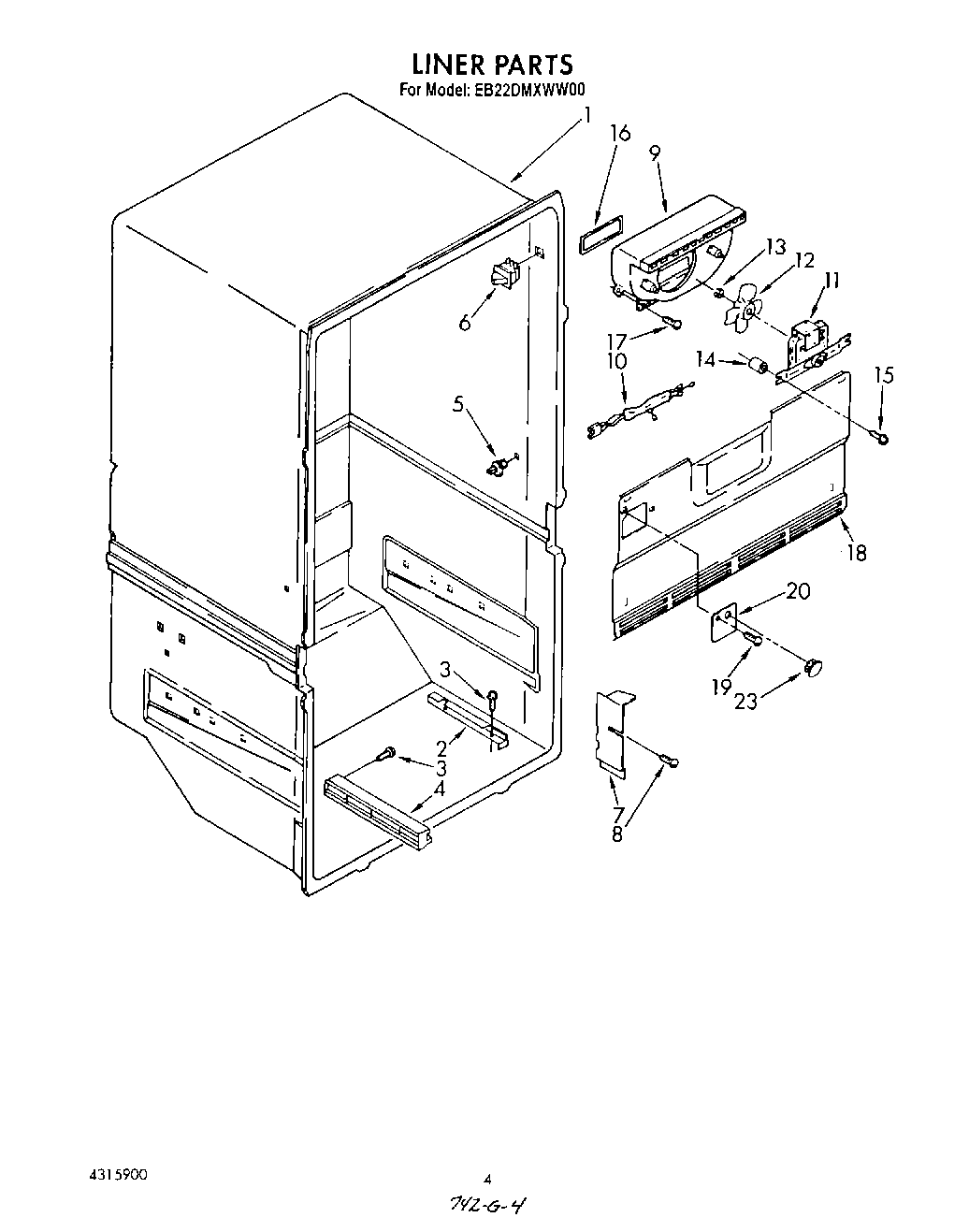

EB22DMXWW00 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Basket (Left Side)
2Slide, Basket (R.S)
3W11693756 Whirlpool Screw Assembly
4Shelf Track, (Right Side)
4Shelf Track, (Left Side)
5W10854959 Whirlpool Refrigerator Shelf Stud
6W11384469 Whirlpool Door Switch
7Electrical Shield Extension
8Screw, 8-32 x 3/8
9Scroll, Fan
10Wiring Assembly, Fan Motor
11Fan Motor
12Blade, Fan
13Ring, Compression
14Fan Grommet (2)
15Screw (2)
16Gasket, Fan Scroll
17WP489478 Whirlpool Refrigerator Screw
18Cover, Evaporator
19WP488729 Whirlpool Refrigerator Door Screw
20WP2217784 Whirlpool Refrigerator Cover
