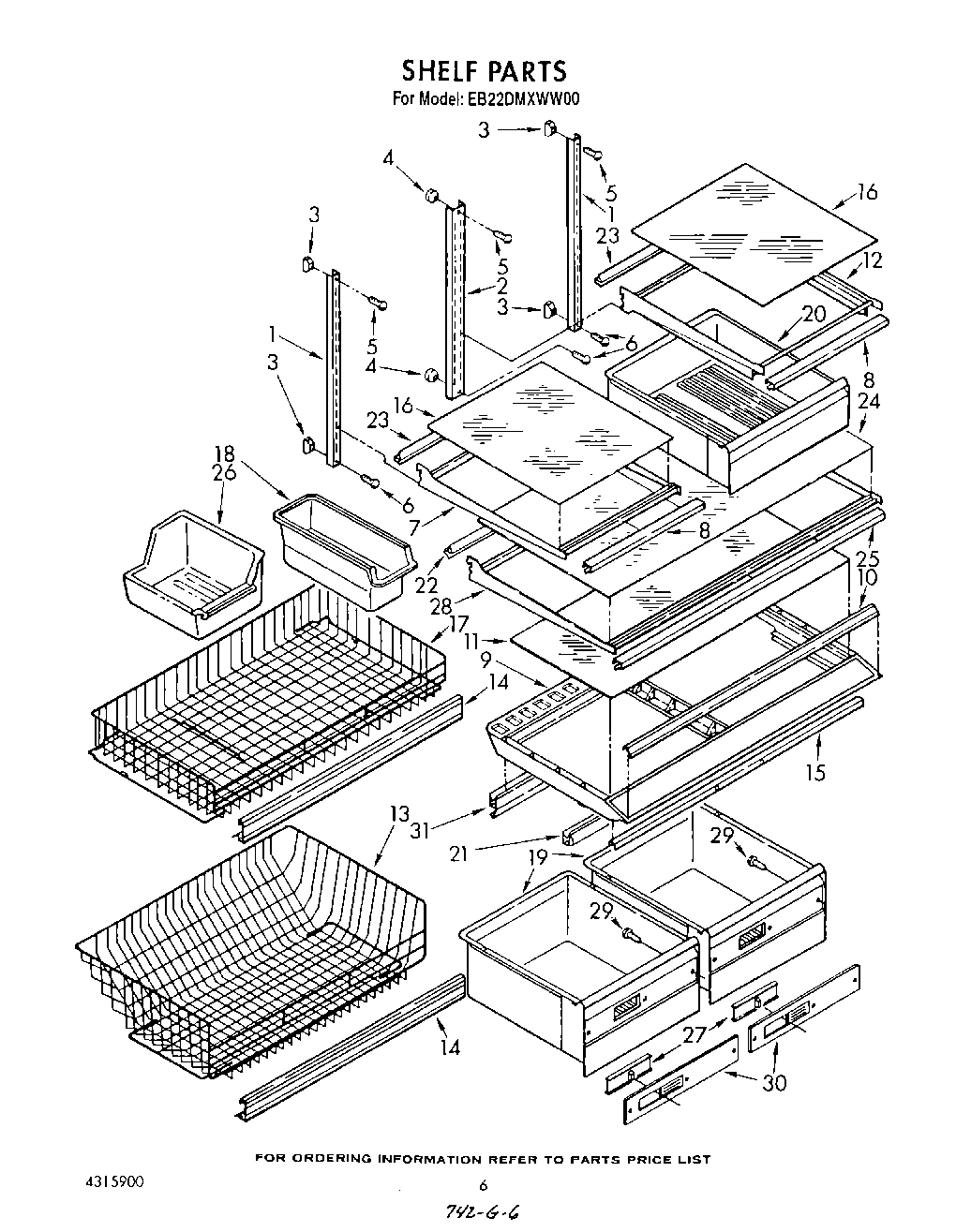

EB22DMXWW00 05 – SHELF , LIT/OPTIONALadmin2025-04-26T11:00:32+00:00EB22DMXWW00 05 – SHELF , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Torx Key |
| WPL LIT4315900 |
| 350942 Whirlpool Spray Paint |
| 285006 Whirlpool Spray |
| WPL LIT1127423 |
| Leveler (Thinner) |
| WPL LIT2149156 |
| WPL LIT1115017 |
| 350956 Whirlpool Spray Assembly |
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Screw Support, Center Ladder (2) |
| 5 | Screw (3) |
| 6 | WP488163 Whirlpool Refrigerator Screw |
| 7 | Shelf, Cantilever (3) |
| 8 | Trim, Shelf |
| 9 | WP2151749 Whirlpool Refrigerator Cover |
| 10 | Trim, Crisper Cover |
| 11 | Glass, Crisper Cover |
| 12 | Pan Shelf, Cantilever |
| 13 | Basket-Freezer |
| 14 | Trim, Basket |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Glass, Shelf |
| 17 | Basket-Freezer |
| 18 | WP982704 Whirlpool Refrigerator Container |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 21 | Gasket-Front |
| 22 | Reflector, Shelf |
| 23 | Reflector, Shelf |
| 24 | Glass, Full Shelf |
| 25 | Trim, Shelf |
| 26 | PAN-ICE |
| 27 | Slide |
| 28 | Shelf, Full Cantilever |
| 30 | Crisper Pan, Front |
| 31 | WP503695 Whirlpool Refrigerator Sealer |
| 31 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 31 | 72032 Whirlpool Touch Up Paint Black |
| 31 | 799344 Whirlpool Refrigerator Paint |
| 31 | WP72107 Whirlpool Touchup |
| 31 | Almond (Uncut) |
| 31 | WPL 799833 |
| 31 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 31 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 31 | TAPE, VINYL (3/4 X 108``) |
| 31 | WP542638 Whirlpool Refrigerator Grease |
| 31 | WPL 876029 |
| 31 | Gasket, Rear |
| 31 | 511873 Whirlpool Refrigerator Paint |
| 31 | WP505587 Whirlpool Refrigerator Sealer |
| 31 | 833938 Whirlpool Refrigerator Terminal |
| 31 | 876370 Whirlpool Refrigerator Insulation |
| 31 | 606755 Whirlpool Refrigerator Bag |
