EB22RKXXN00 06 – UNIT

EB22RKXXN00 06 – UNIT

Written by

in

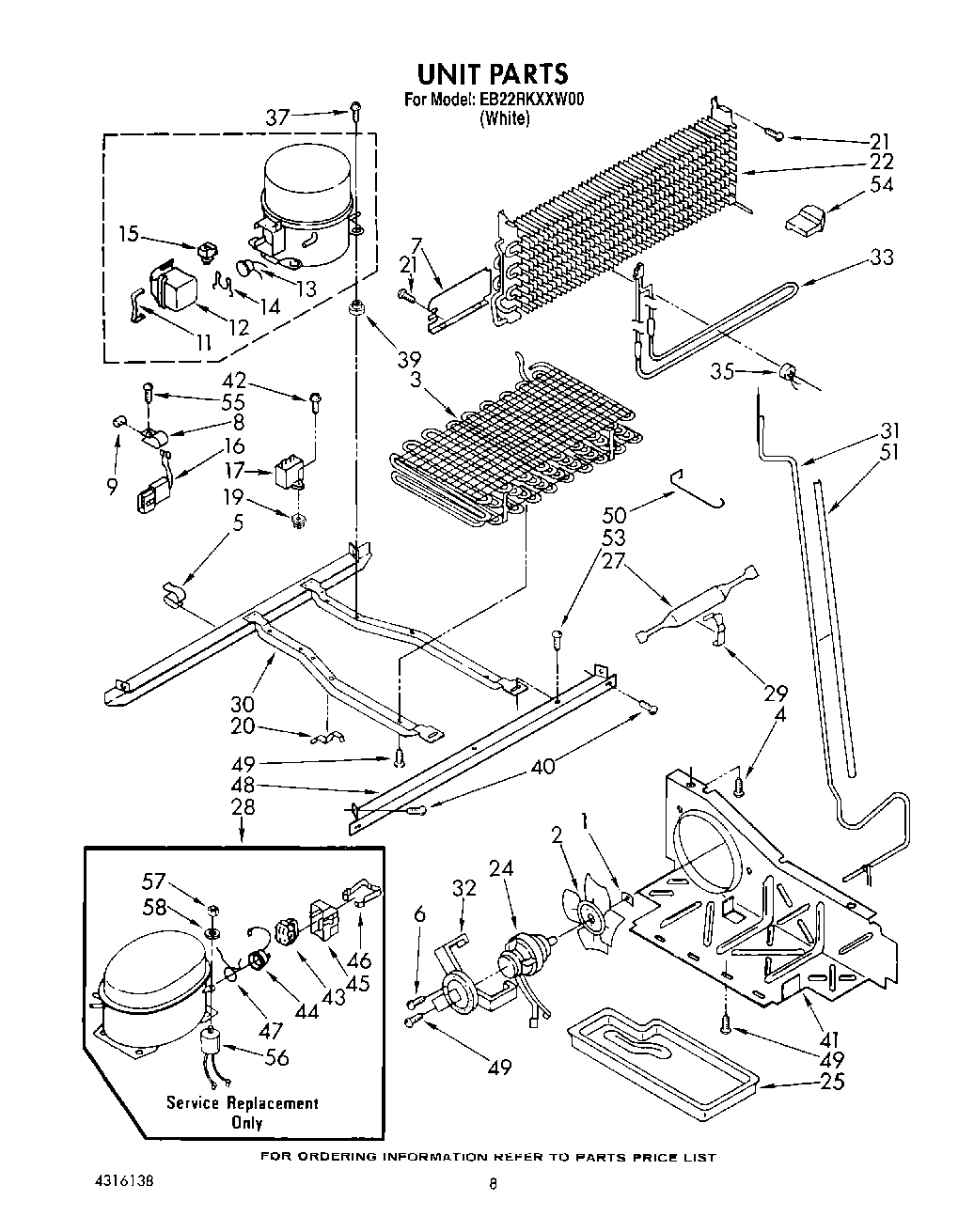

EB22RKXXN00 06 – UNIT

Products

PositionProduct
NIWP2158826 Whirlpool Refrigerator Dampener
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4Screw, 8-32 x 1/2
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Heat Shield Evaporator
8Clamp Tube
9Dampener (2)
11case spring
12Case, Relay
13Overload
14Spring, Overload
15Relay (Order Overload To Obtain Relay Key No. 13)
16Housing Plug
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19Screw Grommet
20Clip (2)
21WP489478 Whirlpool Refrigerator Screw
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29Clamp, Dryer
302304903 Whirlpool Refrigerator Frame
31Exchanger, Heat
32Bracket, Motor
33Heater, Defrost
35WP2182381 Whirlpool Refrigerator Bimetallic Defrost
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Baffle, Air
42W11693756 Whirlpool Screw Assembly
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Overload Spring
48Unit Mounting Rail
49Screw, 8 x 3/8
50Guard, Fan
51WP2002171 Whirlpool Refrigerator Sleeve
53WP489427 Whirlpool Refrigerator Screw
54Support
55WPW10141625 Whirlpool Refrigerator Screw Assembly
56Capacitor
57Nut
58VALVE, ACCESS (5/8“)
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58Washer
58876764 Whirlpool Refrigerator Primary Valve
