EB22RKXXW00 05 – SHELF, LIT/OPTIONAL

EB22RKXXW00 05 – SHELF, LIT/OPTIONAL

Written by

in

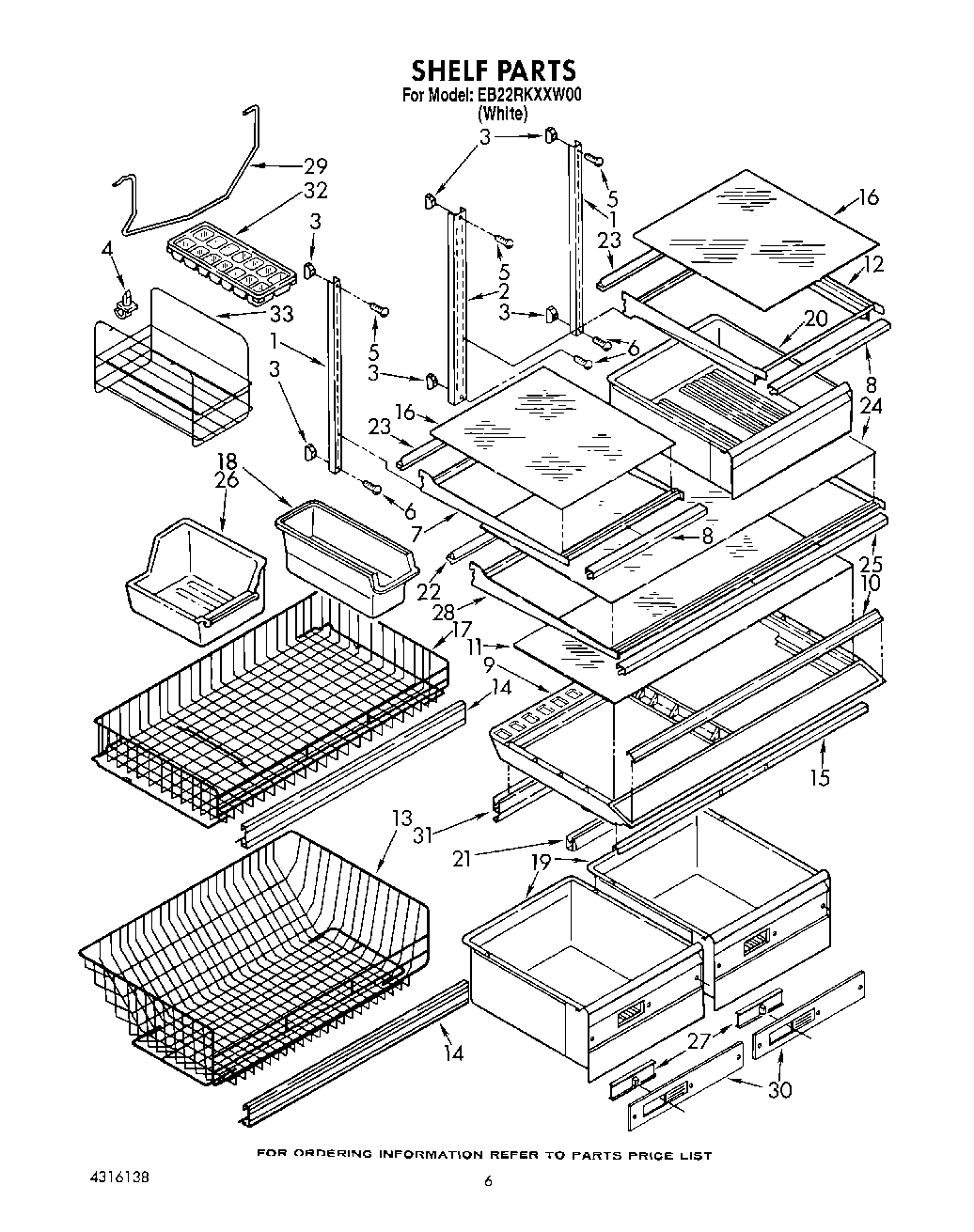

EB22RKXXW00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Icemaker Arm (When Ordering Field Installable Icemaker This Arm Must Be Used)
	285006 Whirlpool Spray
	WPL LIT1127423
	350942 Whirlpool Spray Paint
	WPL LIT2148869
	WPL LIT2149156
	Torx Key
	Leveler (Thinner)
	WPL LIT4316138
	350956 Whirlpool Spray Assembly
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Stud
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Basket-Freezer
14	Trim, Basket
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Basket-Freezer
18	WP982704 Whirlpool Refrigerator Container
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	Reflector, Shelf
23	Reflector, Shelf
24	Glass, Full Shelf
25	Trim, Shelf
26	PAN-ICE
27	Slide, Crisper
28	Shelf, Full Cantilever
30	Crisper Front
31	Gasket, Rear
32	WP841180A Whirlpool Microwave Glass Turntable Tray
33	WPL 876029
33	212643 Whirlpool Refrigerator Permagum Sealer
33	511873 Whirlpool Refrigerator Paint
33	Almond (Uncut)
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	606755 Whirlpool Refrigerator Bag
33	833938 Whirlpool Refrigerator Terminal
33	876370 Whirlpool Refrigerator Insulation
33	WP503695 Whirlpool Refrigerator Sealer
33	72032 Whirlpool Touch Up Paint Black
33	WP542638 Whirlpool Refrigerator Grease
33	TAPE, VINYL (3/4 X 108“)
33	Shelf, Ice Tray
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	WPL 799833
33	WP505587 Whirlpool Refrigerator Sealer
