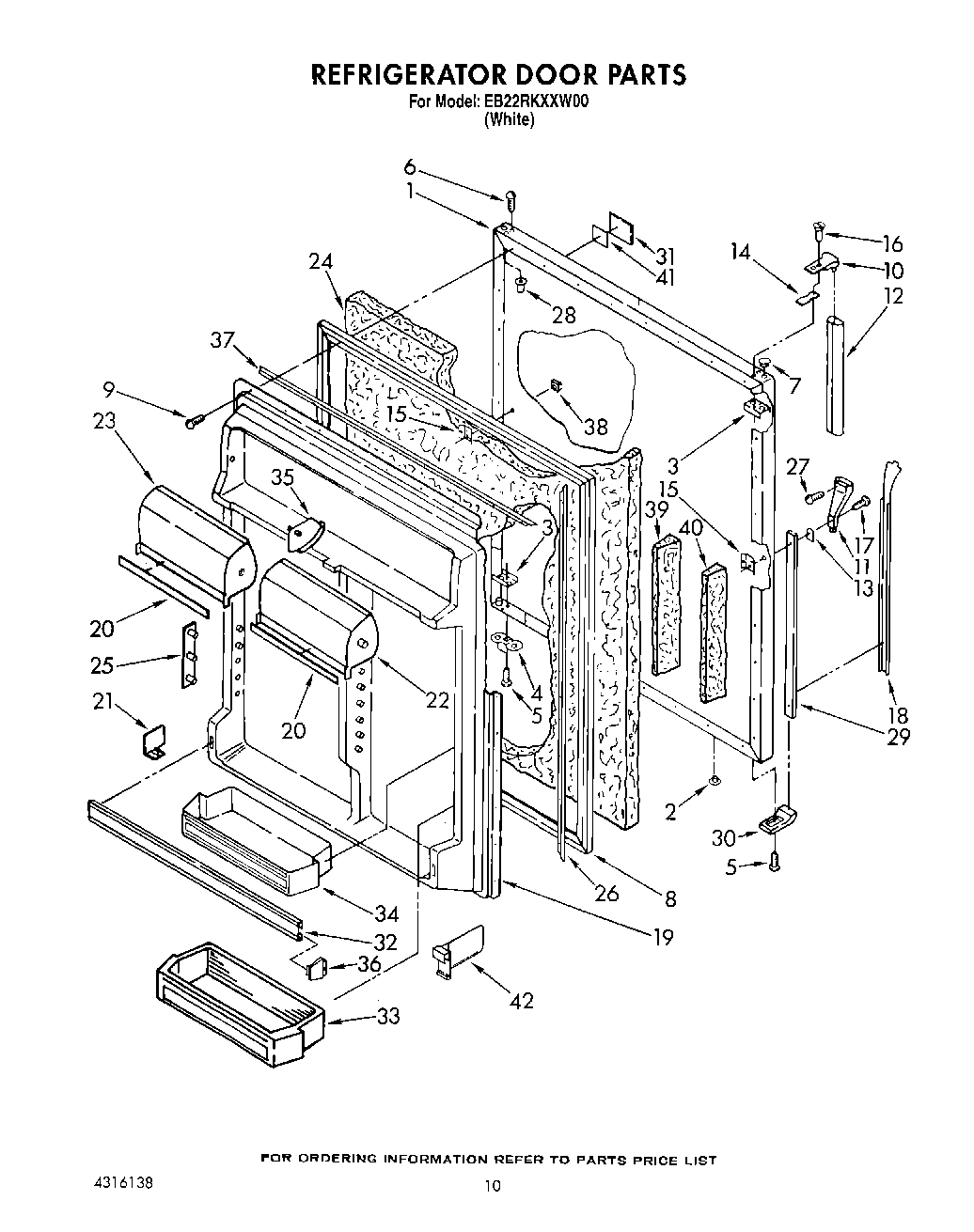

EB22RKXXW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Also Order Item 31) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
9	SCREW
10	Handle End
11	Handle End, Side
12	Handle, Center (White Model)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	Screw, 8 x 1/2
18	Insert, Handle
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider (3)
22	Compartment Door
23	Compartment Door,
24	WPL 876029
25	Pin Plate (8)
26	Retainer Gasket, Side (2)
27	Screw
28	Cap, Hinge Sleeve (2)
29	WPL 935873
30	WPL 1105804
31	Nameplate
32	WPL 2148616
33	WPL 2148549
34	WPL 2148550
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
37	Retainer, Gasket Top
38	WP2189000 Whirlpool Refrigerator Handle Plug
39	WPL 1122711
40	WPL 1122709
41	Tape Strip
42	Divider-Door
