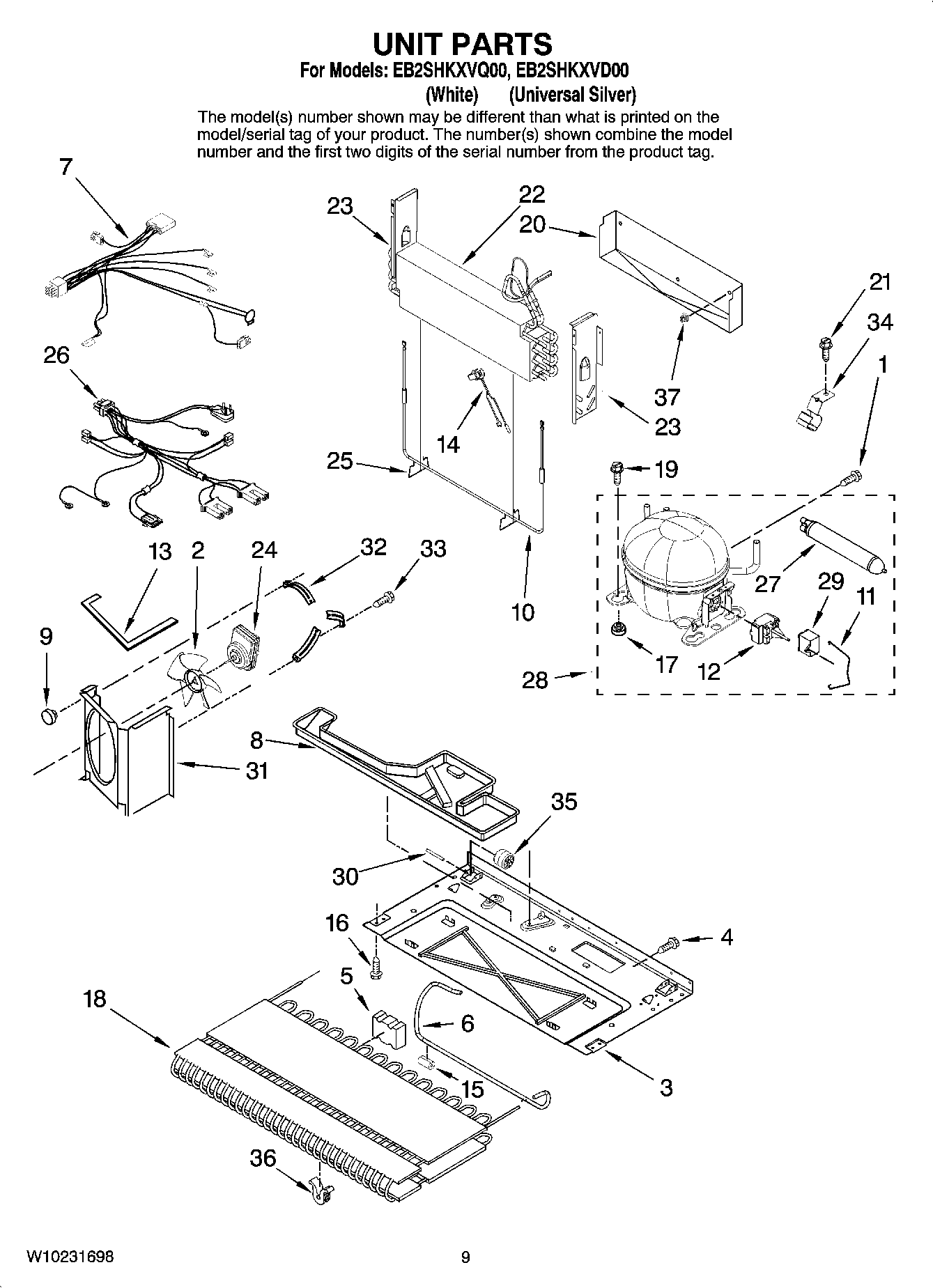

EB2SHKXVD00 06 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	Block, Condenser
6	Discharge, Tube
7	Harness, Evap. Heater
8	Drain Pan
9	Grommet (3)
10	WP67001794 Whirlpool Refrigerator Defrost Heater
11	W10136415 Whirlpool Clip
12	WPW10197426 Whirlpool Refrigerator Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346420 Whirlpool Refrigerator Condenser
19	12846902 Whirlpool Refrigerator Screw
20	WPW10292802 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12001919 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	13060302 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	WP67004953 Whirlpool Refrigerator Bracket
33	WP67004954 Whirlpool Refrigerator Screw
34	10547003 Whirlpool Refrigerator Dryer Clip
35	WP67005149 Whirlpool Roller
36	WPW10137529 Whirlpool Refrigerator Grommet
37	CLIP, EVAP (2)
