EB2SHKXVD00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799833
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	212643 Whirlpool Refrigerator Permagum Sealer
	WPL ARI145089A
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL ARI145091A
	799344 Whirlpool Refrigerator Paint
	CLEANER, (STAINLESS STEEL)
	WPL ARI145088A
	TAPE, VINYL (3/4 X 108“)
	WPL ARI145090A

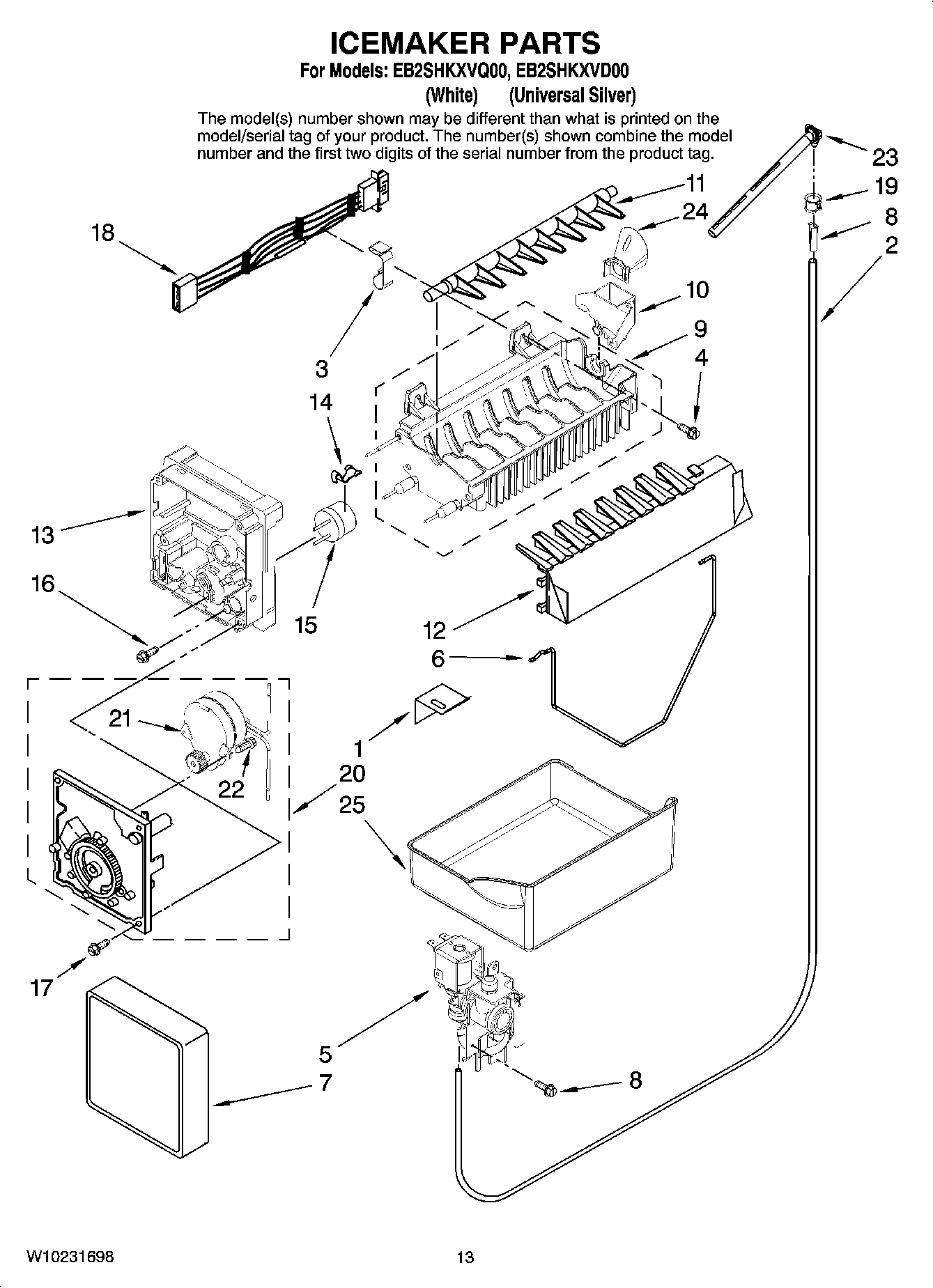

1	WP2256087 Whirlpool Refrigerator Bracket
2	WPB5705307 Whirlpool Refrigerator Tube
3	Clamp
4	WP681249 Whirlpool Screw Assembly
5	WP67003753 Whirlpool Refrigerator Inlet Valve
6	ARM-SHUT
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10	W10122561 Whirlpool Refrigerator Cup Fill
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	WP2182124 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP489464 Whirlpool Refrigerator Screw
18	WPD7813010 Whirlpool Refrigerator Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	489136 Whirlpool Refrigerator Screw
23	W11176463 Whirlpool Refrigerator Water Tube
24	12918001 Whirlpool Refrigerator Funnel
25	WP67001255 Whirlpool Ice Bucket
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
