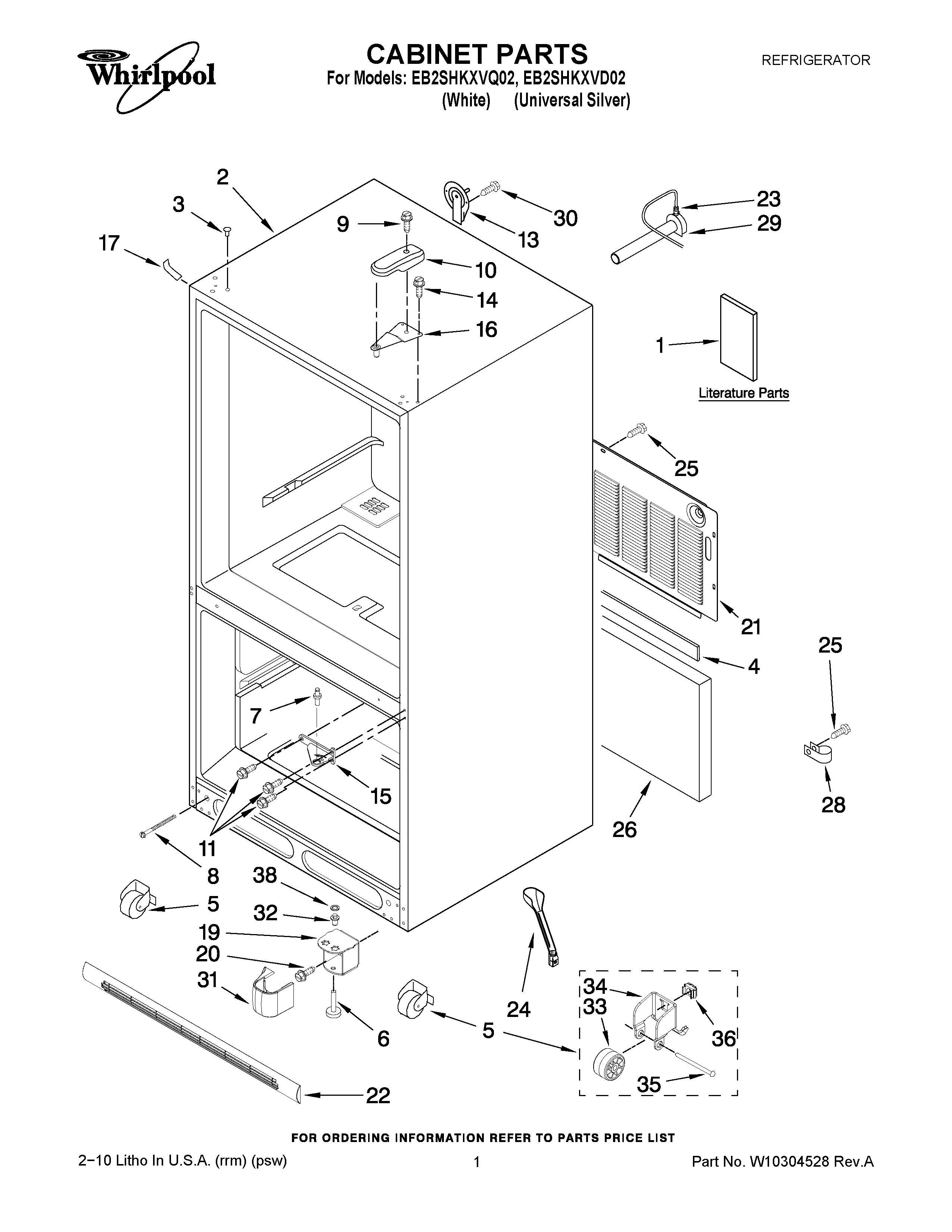

EB2SHKXVD02 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	Plug, Button (3) (Black)
4	B5759655 Whirlpool Refrigerator Gasket
5	ROLLER ASSY.(REAR)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	WP489349 Whirlpool Refrigerator Screw
13	12726003 Whirlpool Refrigerator Water Cover
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
19	12465002WD Whirlpool Refrigerator Bottom Hinge
19	12465005ED Whirlpool Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	WPW10210979 Whirlpool Refrigerator Back Cover
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
22	WP67002224 Whirlpool Refrigerator Grille Assembly
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
28	W11456069 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
31	Cover, Hinge (White)
31	Cover, Hinge (Black)
32	67007018 Whirlpool Refrigerator Bottom Hinge PIN
33	WP10450603 Whirlpool Refrigerator Roller
34	12456801V Whirlpool Refrigerator Bracket
35	Pin
36	M0286708 Whirlpool Refrigerator Holder Nut Assembly
38	WPM0274062 Whirlpool Refrigerator Shim
38	WPM0274057 Whirlpool Refrigerator Shim
