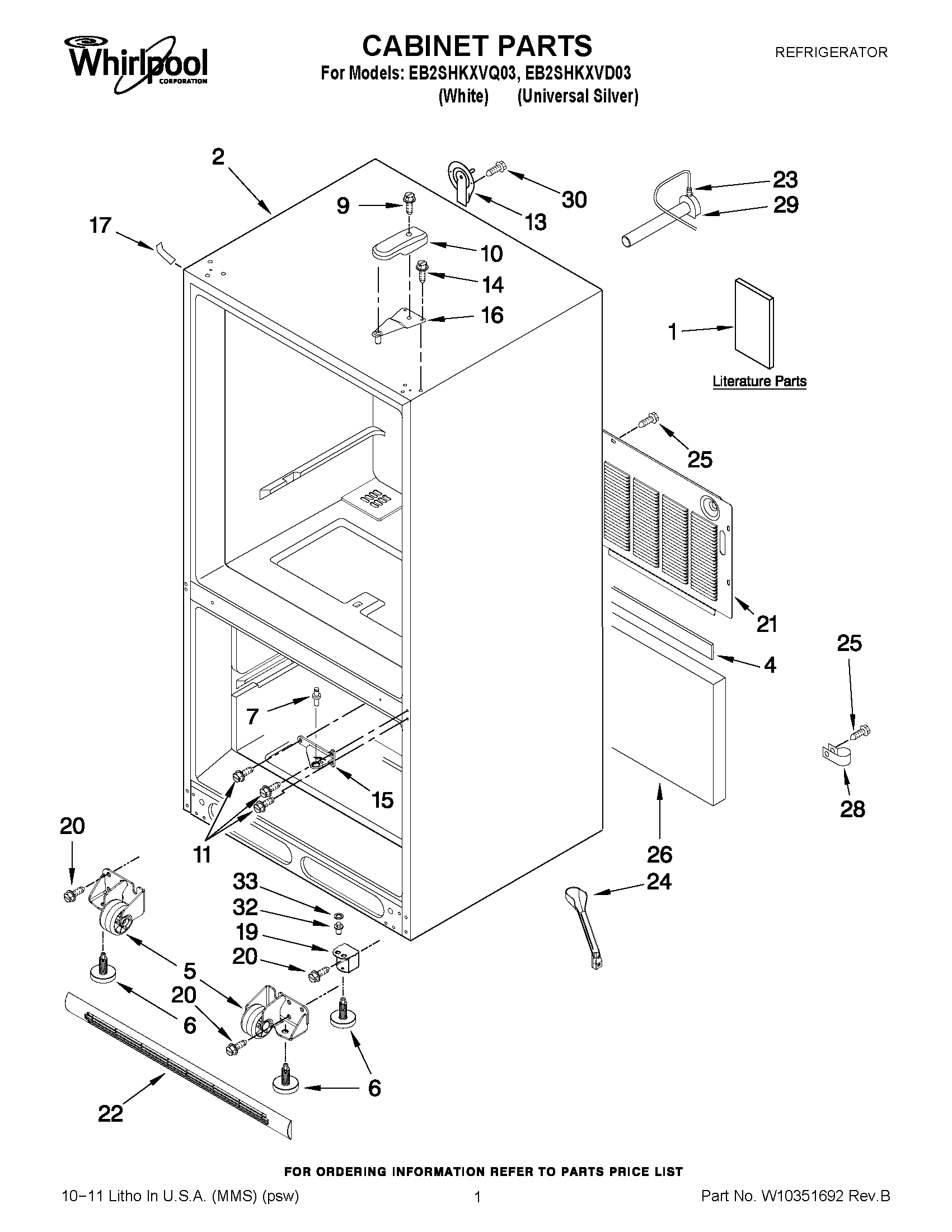

EB2SHKXVD03 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Use & Care Guide
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	WP67006744 Whirlpool Refrigerator Center Pin
9	WP8281196 Whirlpool Screw
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
11	WP489349 Whirlpool Refrigerator Screw
13	12726003 Whirlpool Refrigerator Water Cover
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
19	HINGE, BOTTOM (BLACK)
19	W10315062 Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	WPW10210979 Whirlpool Refrigerator Back Cover
22	WPW10534161 Whirlpool Refrigerator Front Grille
22	WPW10534162 Whirlpool Refrigerator Front Grille
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
28	W11456069 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
32	67007018 Whirlpool Refrigerator Bottom Hinge PIN
33	WPM0274057 Whirlpool Refrigerator Shim
33	WPM0274062 Whirlpool Refrigerator Shim
