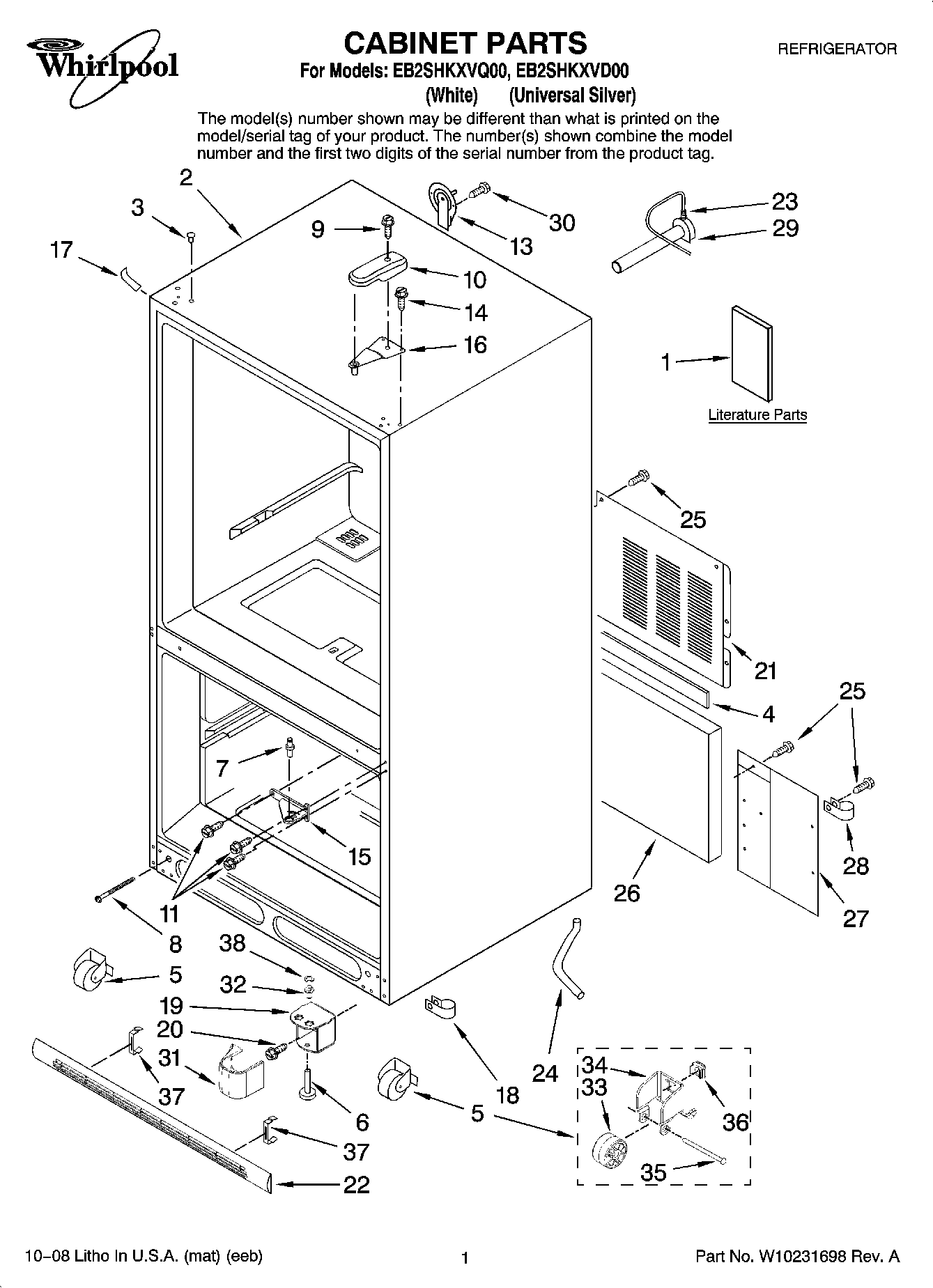

EB2SHKXVQ00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Energy Guide
2	Cabinet (Not A Servicable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	Plug, Button (3) (Black)
4	Gasket
5	ROLLER ASSY.(REAR)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	WP489349 Whirlpool Refrigerator Screw
13	12726003 Whirlpool Refrigerator Water Cover
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Clip, Drain Tube
19	Hinge, Bottom (Black)
19	12465002WD Whirlpool Refrigerator Bottom Hinge
20	67006564 Whirlpool Refrigerator Screw
21	Cover, Unit
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	Grille Assembly (Includes Clips) (White)
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10164397 Whirlpool Refrigerator Drain Tube
25	67006425 Whirlpool Refrigerator Screw
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	Cover, Water Valve
28	W10833902 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
31	Cover, Hinge (White)
31	Cover, Hinge (Black)
32	67007018 Whirlpool Refrigerator Bottom Hinge PIN
33	WP10450603 Whirlpool Refrigerator Roller
34	12456801V Whirlpool Refrigerator Bracket
35	Pin
36	M0286708 Whirlpool Refrigerator Holder Nut Assembly
37	Clip, Grille
38	WPM0274057 Whirlpool Refrigerator Shim
38	WPM0274062 Whirlpool Refrigerator Shim
