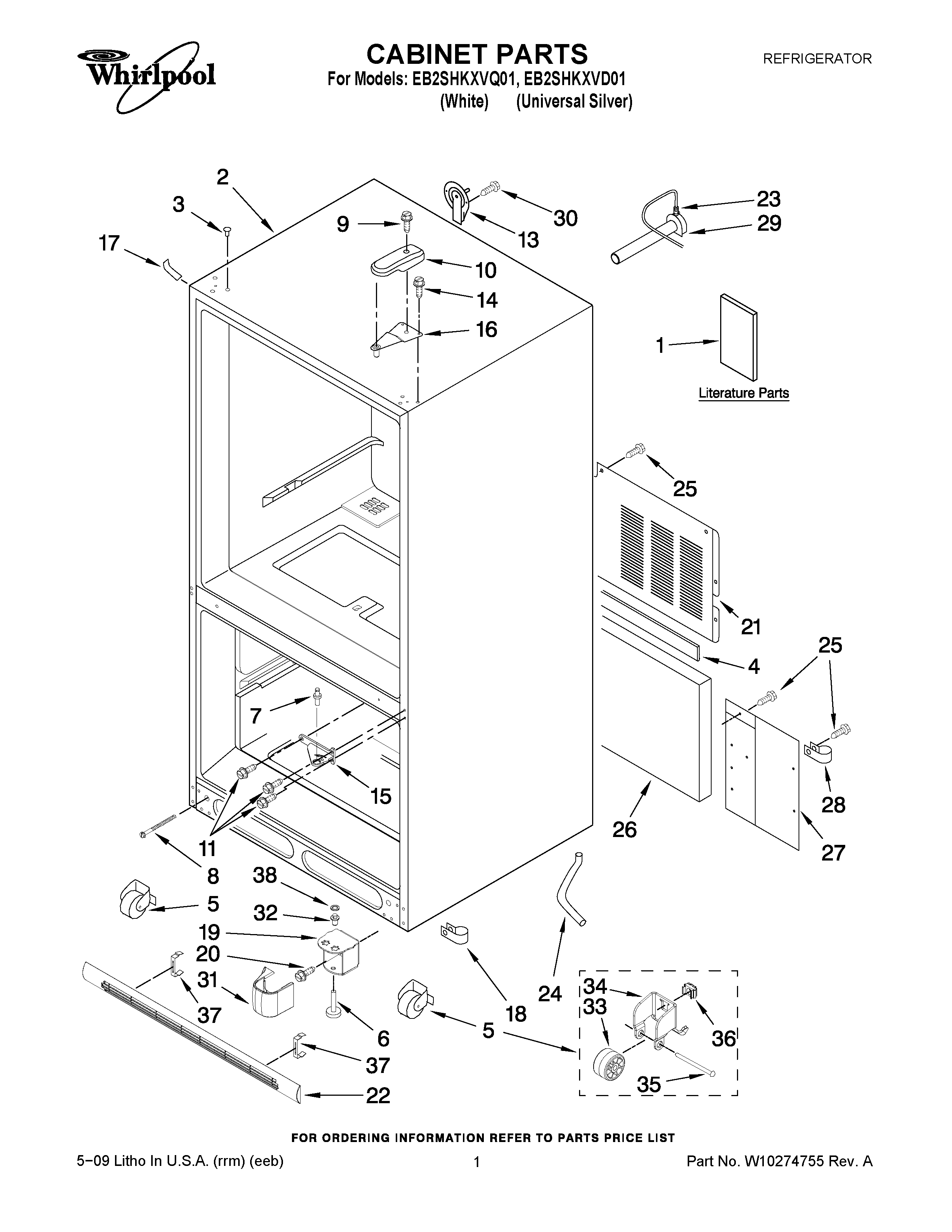

EB2SHKXVQ01 01 – CABINET PARTS

EB2SHKXVQ01 01 – CABINET PARTS

Written by

in

EB2SHKXVQ01 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY GUIDE
1Use & Care Guide
2Cabinet (Not A Servicable Part)
3Plug, Button (3) (Black)
3WP67001130 Whirlpool Refrigerator White Button Plug
4Gasket
5ROLLER ASSY.(REAR)
6W11177593 Whirlpool Leveling Feet
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP489349 Whirlpool Refrigerator Screw
1312726003 Whirlpool Refrigerator Water Cover
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Clip, Drain Tube
1912465002WD Whirlpool Refrigerator Bottom Hinge
1912465005ED Whirlpool Door Hinge
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
22WP67002224 Whirlpool Refrigerator Grille Assembly
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27COVER, WATER VALVE
28W11456069 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
31Cover, Hinge (White)
31Cover, Hinge (Black)
3267007018 Whirlpool Refrigerator Bottom Hinge PIN
33WP10450603 Whirlpool Refrigerator Roller
3412456801V Whirlpool Refrigerator Bracket
35Pin
36M0286708 Whirlpool Refrigerator Holder Nut Assembly
37CLIP, TOE GRILLE
38WPM0274057 Whirlpool Refrigerator Shim
38WPM0274062 Whirlpool Refrigerator Shim
