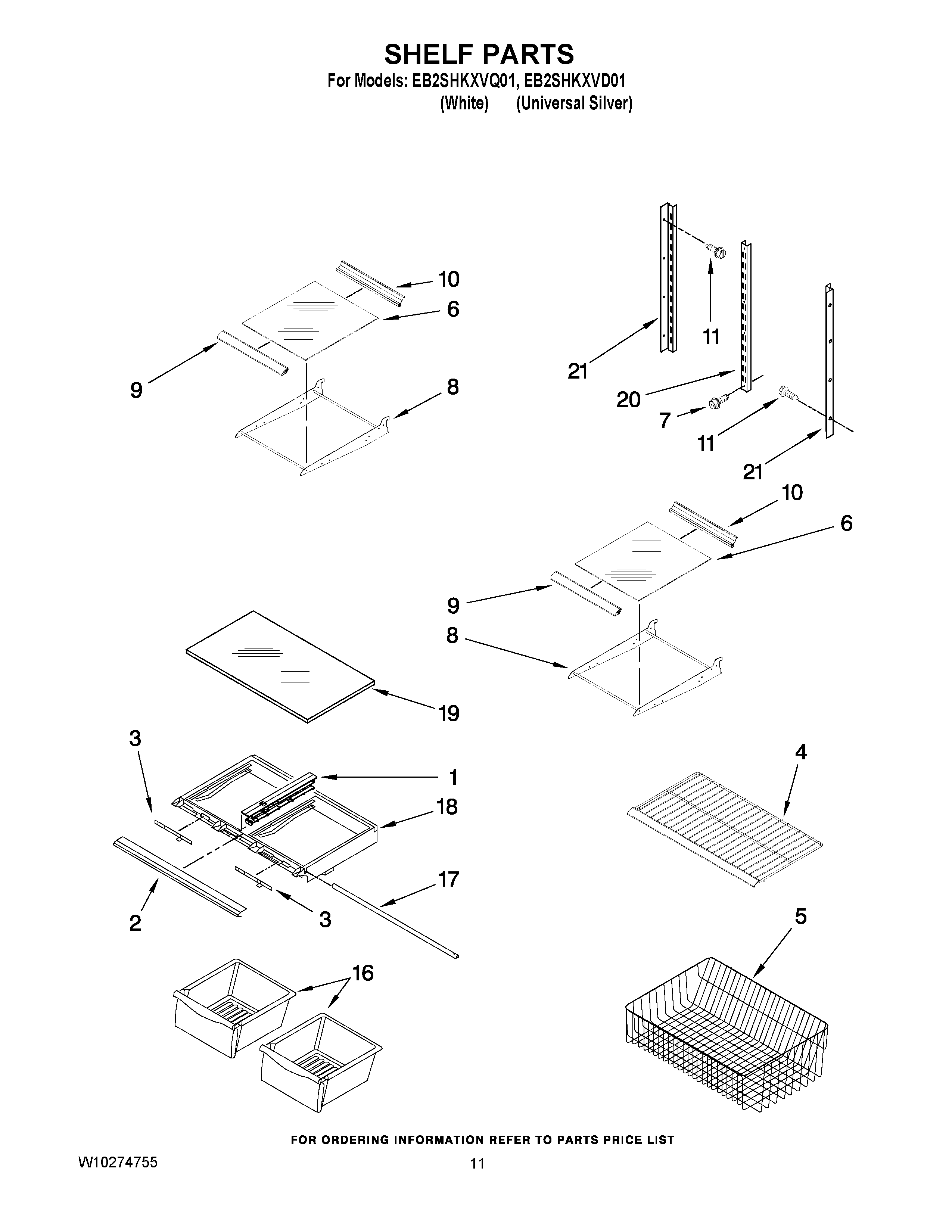

EB2SHKXVQ01 07 – SHELF PARTS

EB2SHKXVQ01 07 – SHELF PARTS

Written by

in

EB2SHKXVQ01 07 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2WPW10231482 Whirlpool Refrigerator Shelf Trim
4SLIDE
5BASKET, FREEZER (LOWER)
6GLASS, SHELF (2)
7W10709795 Whirlpool Refrigerator Screw
8Frame, Shelf (2)
9TRIM, SHELF (2) FRONT
10TRIM, SHELF (2) REAR
1167006425 Whirlpool Refrigerator Screw
16WP67002633 Whirlpool Crisper Pan
17WP12227303WD Whirlpool Refrigerator Crisper Brace
18WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19WP67006878 Whirlpool Refrigerator Crisper Glass
2067001073 Whirlpool Refrigerator Center Ladder
21LADDER, SIDE (2)
