EB2SHKXVQ03 07 – SHELF PARTS

EB2SHKXVQ03 07 – SHELF PARTS

Written by

in

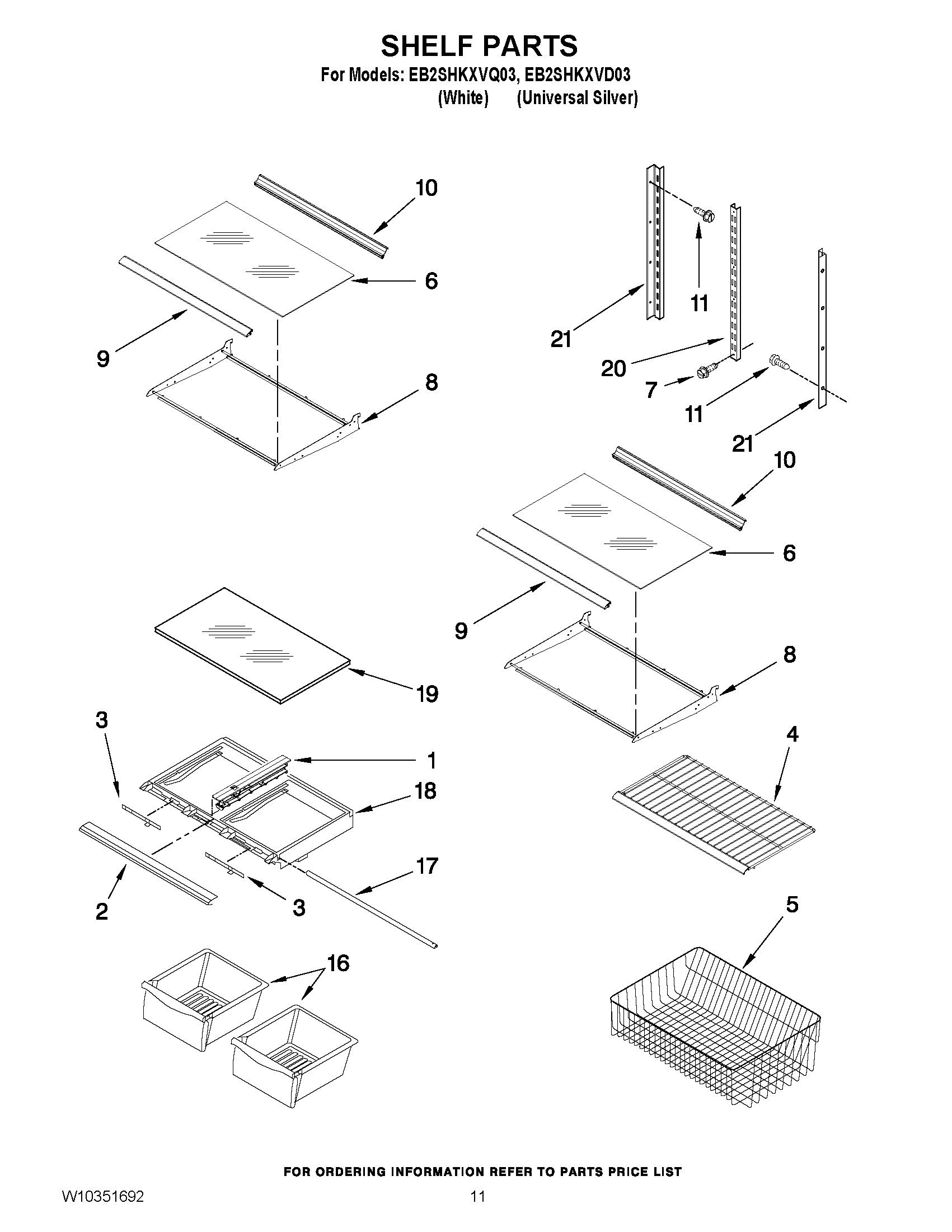

EB2SHKXVQ03 07 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2WPW10231482 Whirlpool Refrigerator Shelf Trim
3SLIDE
4SHELF, FREEZER
5BASKET, FREEZER (LOWER)
6GLASS, SHELF (2)
7W10215666 Whirlpool Refrigerator Screw
8FRAME, SHELF (2)
9TRIM, SHELF (2) FRONT
10TRIM, SHELF (2) REAR
1167006425 Whirlpool Refrigerator Screw
16WP67002633 Whirlpool Crisper Pan
17WP12227303WD Whirlpool Refrigerator Crisper Brace
18WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19WP67006878 Whirlpool Refrigerator Crisper Glass
20W10273463 Whirlpool Refrigerator Ladder
21W10251969 Whirlpool Refrigerator Ladder
