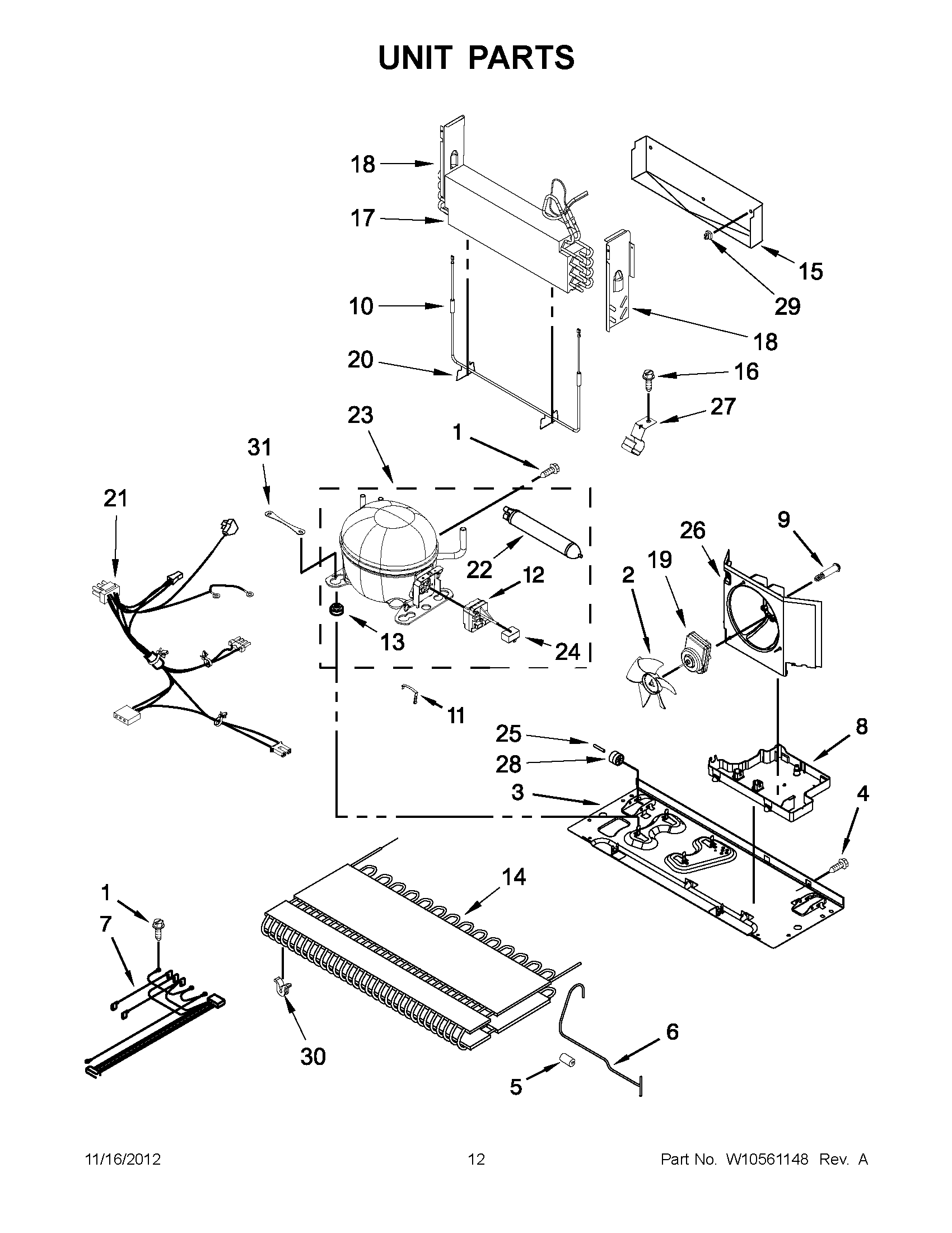

EB9FVBLWS06 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10852725 Whirlpool Refrigerator Grommet
6	W10294014 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11661170 Whirlpool Clip
12	WPW10194431 Whirlpool Start Device
13	WPW10169124 Whirlpool Refrigerator Grommet
14	W10346423 Whirlpool Refrigerator Condenser
15	TRAY, DRIP
16	WP33001882 Whirlpool Screw
17	W10920993 Whirlpool Refrigerator Evaporator
18	Dam (Right Side)
18	Dam (Left Side)
19	W11613295 Whirlpool Condenser Motor
20	W11673433 Whirlpool Clip
21	WPW10234024 Whirlpool Refrigerator Wire Harness
22	WPW10143759 Whirlpool Dryer Filter
23	W10233960 Whirlpool Refrigerator Compressor
24	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
25	67006434 Whirlpool Axle Pin
26	W11556315 Whirlpool Shroud
27	W10281329 Whirlpool Clamp
28	WP67005149 Whirlpool Roller
29	CLIP, EVAP (2)
30	WPW10137529 Whirlpool Refrigerator Grommet
31	W10236396 Whirlpool Refrigerator Strap
