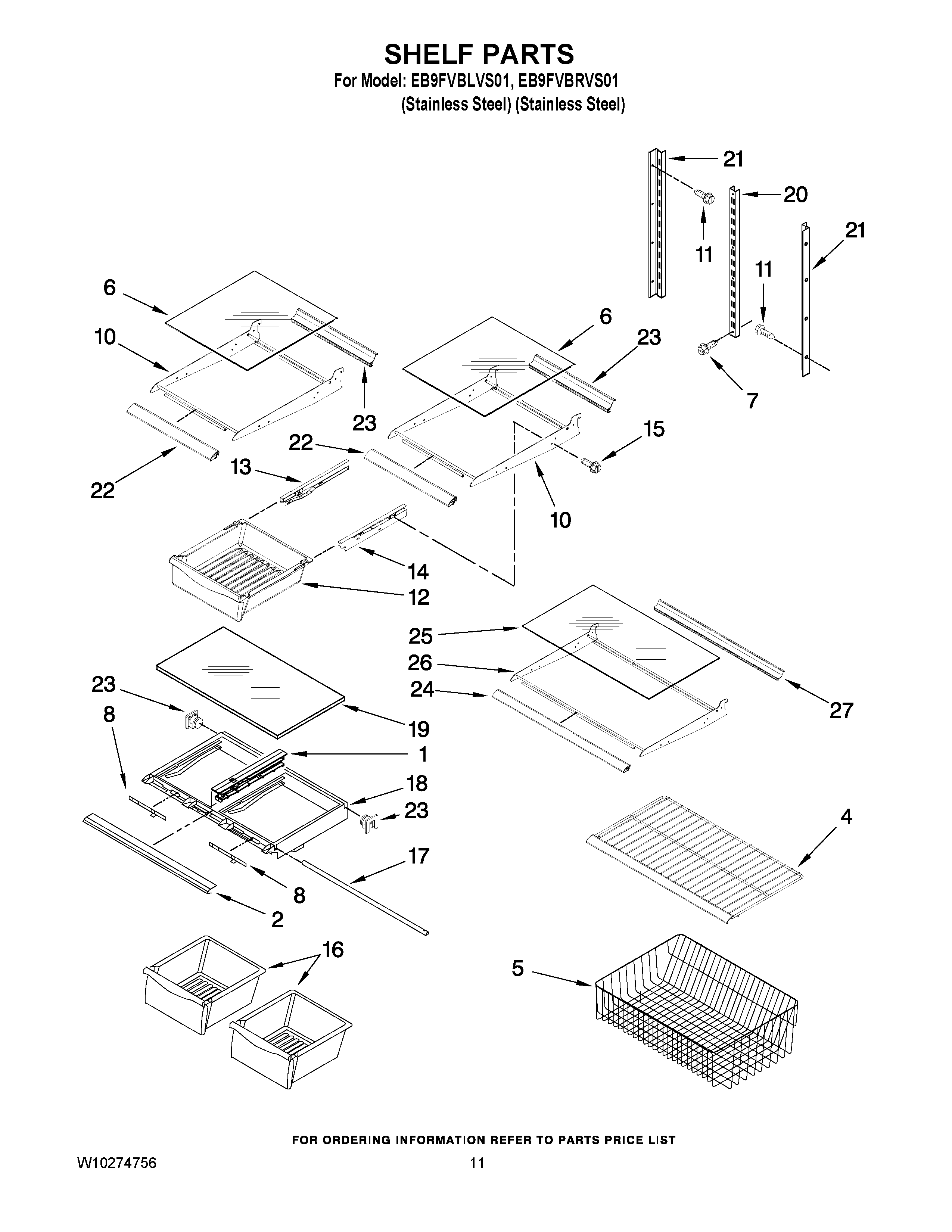

EB9FVBRVS01 06 – SHELF PARTS

EB9FVBRVS01 06 – SHELF PARTS

Written by

in

EB9FVBRVS01 06 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2WPW10231481 Whirlpool Refrigerator Shelf Trim
412476801 Whirlpool Refrigerator Shelf
5WP12754803 Whirlpool Refrigerator Freezer Basket
6GLASS, SHELF
7W10709795 Whirlpool Refrigerator Screw
8SLIDE
10FRAME, SHELF
1167006425 Whirlpool Refrigerator Screw
12WP67001308 Whirlpool Deli Drawer
13WP67001054 Whirlpool Left Glide
14WP67001053 Whirlpool Drawer Glide
15SCREW
16W10833528 Whirpool Refrigerator Crisper Pan
17Whirlpool Refrigerator Shelf Support Liner
18WPW10671240 Whirlpool Refrigerator Frame
19WP67006877 Whirlpool Refrigerator Glass Shelf
2067001073 Whirlpool Refrigerator Center Ladder
21LADDER, SIDE
22TRIM, FRONT SHELF
23TRIM, REAR SHELF
24WP10946013 Whirlpool Refrigerator Shelf Trim
25W10840992 Whirlpool Refrigerator Shelf Frame
26WP12204809 Whirlpool Refrigerator Glass Shelf
27WPW10231329 Whirlpool Refrigerator Shelf Trim
