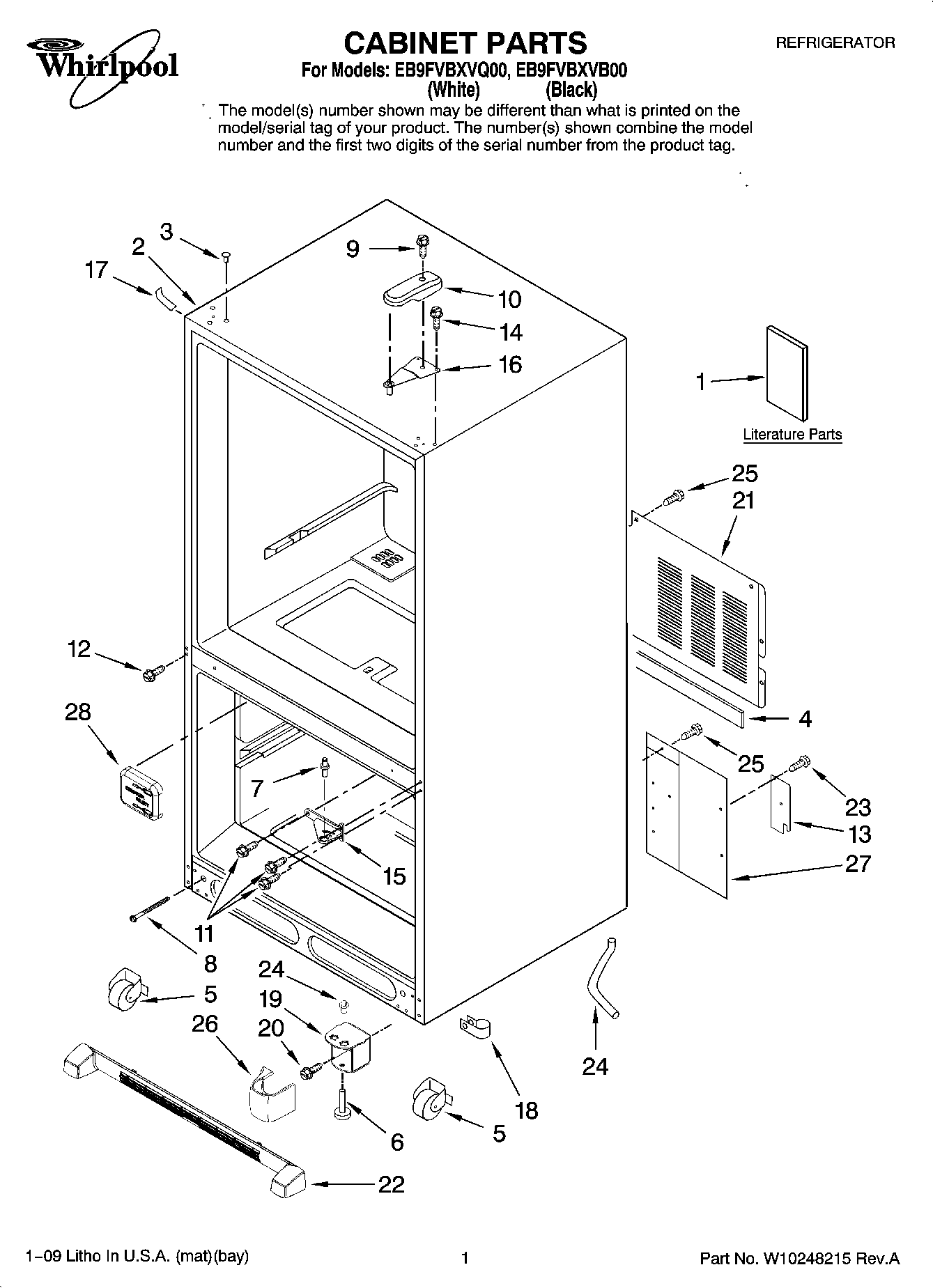

EB9FVBXVB00 01 – CABINET PARTS

EB9FVBXVB00 01 – CABINET PARTS

Written by

in

EB9FVBXVB00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Tech Sheet
2Cabinet (Not A Servicable Part)
3WP67001130 Whirlpool Refrigerator White Button Plug
3Plug, Button (3) (Black)
4Gasket
5ROLLER ASSY.(REAR)
6W11177593 Whirlpool Leveling Feet
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
13Plate, Cover
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18Clip, Drain Tube
19Hinge, Bottom
2067006564 Whirlpool Refrigerator Screw
21Cover, Unit
22Grille, Toe (White)
22Grille, Toe (Black)
23WP489128 Whirlpool Refrigerator Screw
24W10164397 Whirlpool Refrigerator Drain Tube
2567006425 Whirlpool Refrigerator Screw
26Cover, Hinge (White)
26Cover, Hinge (Black)
27Cover, Water Valve
28WP67001098 Whirlpool Refrigerator Tube Cover
