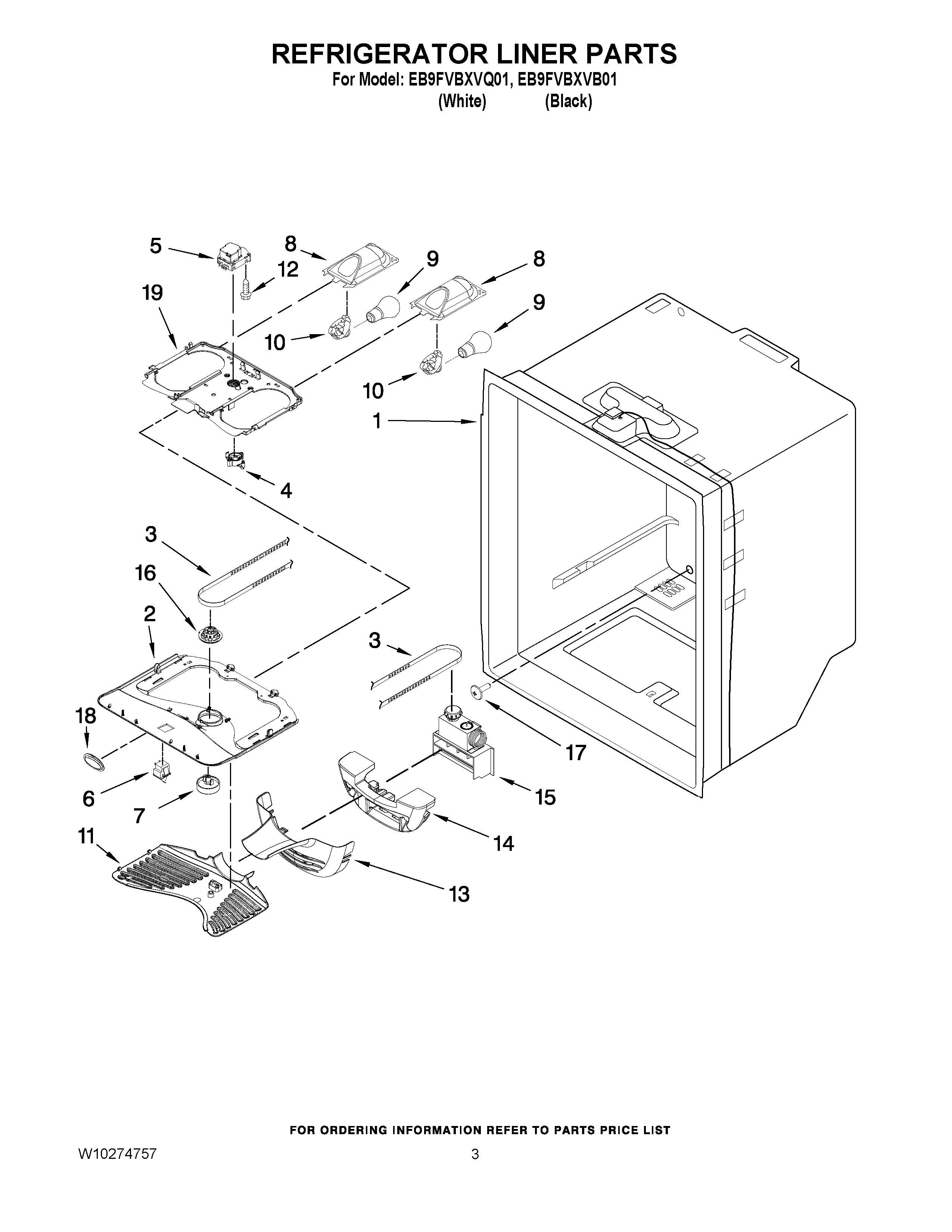

EB9FVBXVB01 02 – REFRIGERATOR LINER PARTS

EB9FVBXVB01 02 – REFRIGERATOR LINER PARTS

Written by

in

EB9FVBXVB01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHARNESS, CONTROLS (REFRIGERATOR) (INCLUDES No. 16)
1Liner (Not A Serviceable Part)
2BRACKET, CONTROL AND LIGHTS
3BELT, DAMPER
467001034 Whirlpool Refrigerator Tensioner Belt
5WP67001036 Whirlpool Refrigerator Defrost Timer
6W11384469 Whirlpool Door Switch
7KNOB, FRONT
8W11702858 Whirlpool Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
11COVER, LIGHT
12SCREW (2)
13COVER, DAMPER
14INSULATION
15GEAR, DAMPER ASSEMBLY
1667001033 Whirlpool Refrigerator Knob Gear
17M0310343 Whirlpool Button Plug
18LOGO
19WP67002085 Whirlpool Refrigerator Housing
