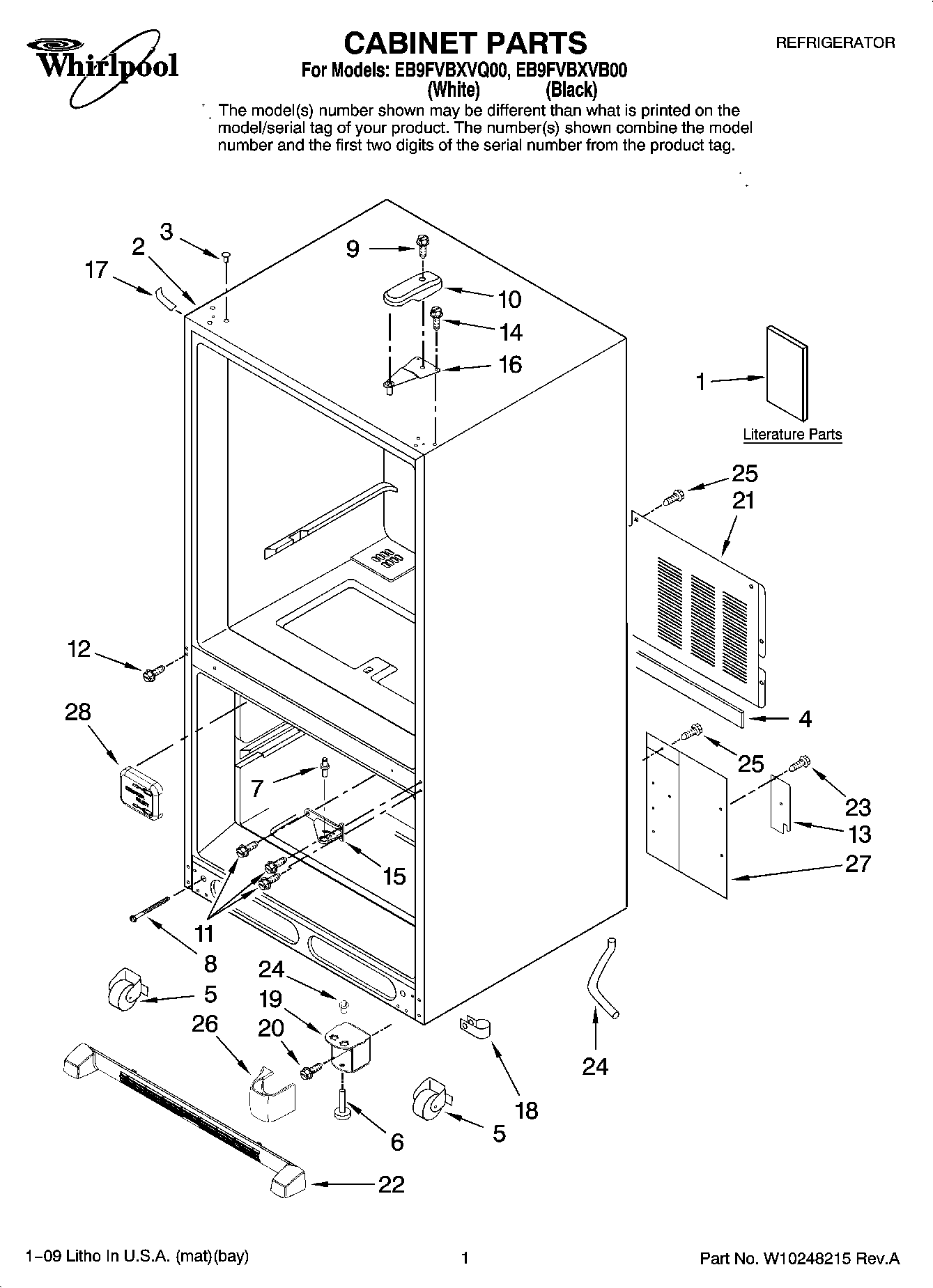

EB9FVBXVQ00 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Energy Guide
1	Use & Care Guide
2	Cabinet (Not A Servicable Part)
3	Plug, Button (3) (Black)
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	Gasket
5	ROLLER ASSY.(REAR)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
11	WP489349 Whirlpool Refrigerator Screw
12	WP98165 Whirlpool Screw
13	Plate, Cover
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	12587703W Whirlpool Refrigerator Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Clip, Drain Tube
19	Hinge, Bottom
20	67006564 Whirlpool Refrigerator Screw
21	Cover, Unit
22	Grille, Toe (Black)
22	Grille, Toe (White)
23	WP489128 Whirlpool Refrigerator Screw
24	W10164397 Whirlpool Refrigerator Drain Tube
25	67006425 Whirlpool Refrigerator Screw
26	Cover, Hinge (White)
26	Cover, Hinge (Black)
27	Cover, Water Valve
28	WP67001098 Whirlpool Refrigerator Tube Cover
