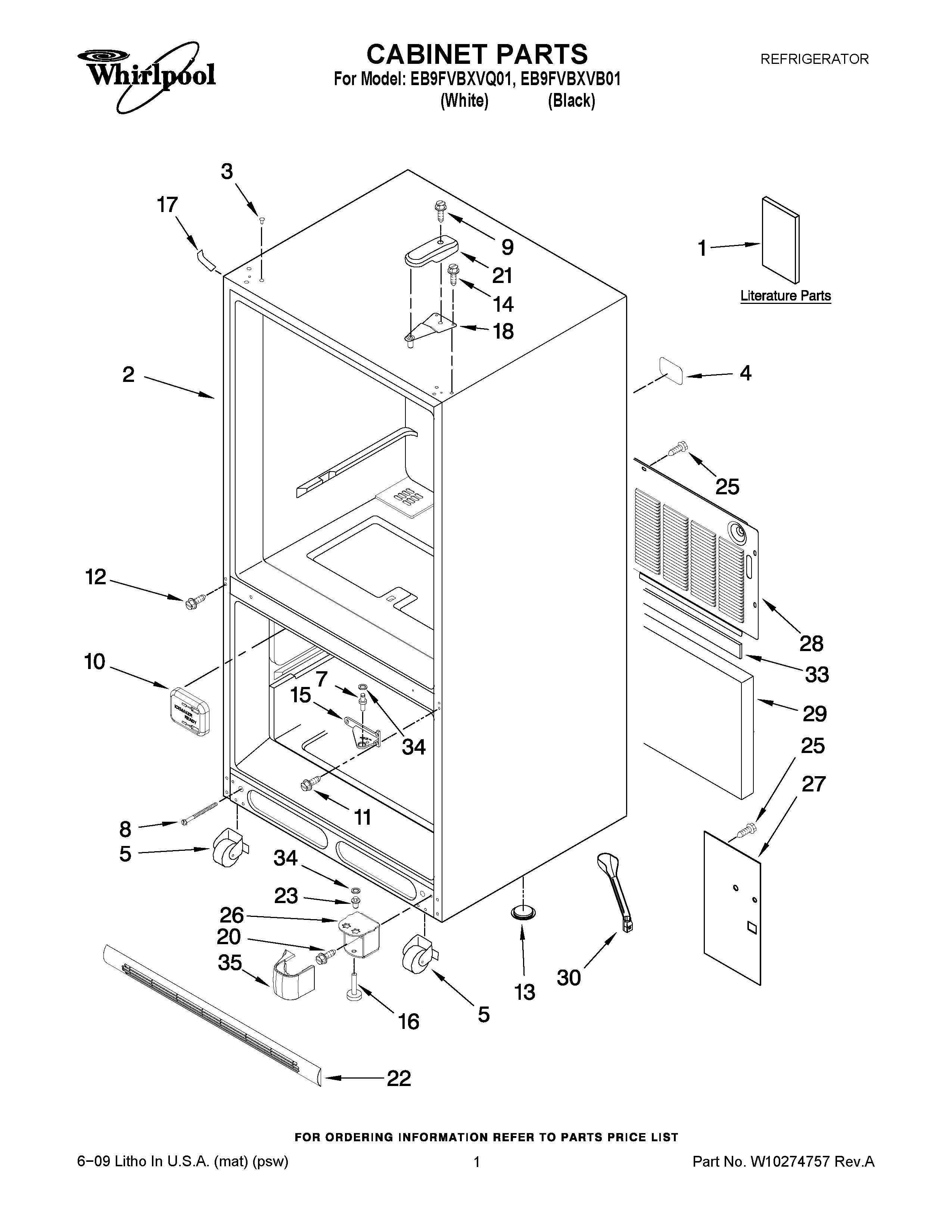

EB9FVBXVQ01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	TECH SHEET
2	CABINET (NOT SERVICABLE PART)
3	Plug, Button (3) (Black)
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	W11685757 Whirlpool Label
5	ROLLER ASSY.(REAR)
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
11	WP67006380 Whirlpool Screw
12	WP489349 Whirlpool Refrigerator Screw
13	A3076901 Whirlpool Refrigerator Plug
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	12587703W Whirlpool Refrigerator Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	GRILLE ASSEMBLY (WHITE)
22	GRILLE, TOE (BLACK)
23	67007018 Whirlpool Refrigerator Bottom Hinge PIN
25	67006425 Whirlpool Refrigerator Screw
26	12465005ED Whirlpool Door Hinge
26	12465002WD Whirlpool Refrigerator Bottom Hinge
27	W11684617 Whirlpool Valve Cover
28	W10210978 Whirlpool Refrigerator Back Cover
29	INSULATION, SOUND
30	W10619951 Whirlpool Drain Tube with Grommet
33	B5759655 Whirlpool Refrigerator Gasket
34	WPM0274062 Whirlpool Refrigerator Shim
34	WPM0274057 Whirlpool Refrigerator Shim
35	Cover, Hinge (White)
35	Cover, Hinge (Black)
