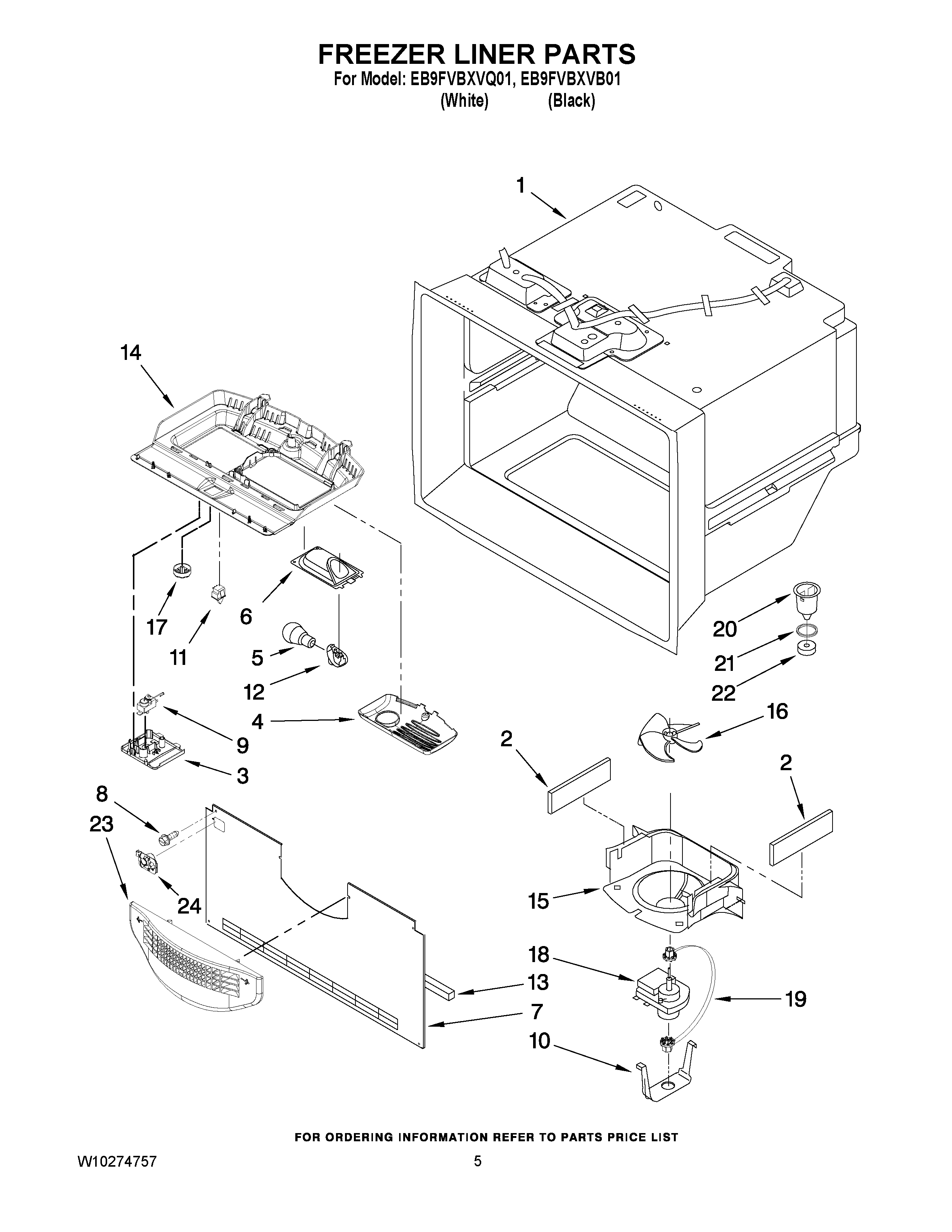

EB9FVBXVQ01 03 – FREEZER LINER PARTS

Products

Position	Product
NI	HARNESS, LIGHTS (FREEZER)
1	Liner (Not A Serviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
3	PANEL, FZ CONTROL
4	COVER, LIGHT
5	W11679940 Whirlpool Refrigerator Light Bulb Assembly
6	W11702858 Whirlpool Housing
7	Cover, Evaporator
8	WP489349 Whirlpool Refrigerator Screw
9	WP67003000 Whirlpool Refrigerator Control
10	CLIP, EVAPORATOR MOTOR
11	W11396033 Whirlpool Refrigerator Rocker Switch
12	W11447232 Whirlpool Refrigerator Socket
13	W11451451 Whirlpool Refrigerator Gasket
14	WP12476002 Whirlpool Refrigerator Module
15	WPW10167023 Whirlpool Refrigerator Shroud
16	WP2169142 Whirlpool Fan Blade
17	KNOB, FZ CONTROL
18	WPW10128551 Whirlpool Evaporator Fan Motor
19	W10121318 Whirlpool Refrigerator Grommet
20	W10815413 Whirlpool Refrigerator Funnel
21	WPB8381501 Whirlpool Refrigerator Door Gasket
22	WPM0500703 Whirlpool Refrigerator O-Ring Seal
23	WPW10175909 Whirlpool Grille Assembly
24	W11448709 Whirlpool Refrigerator Bracket
