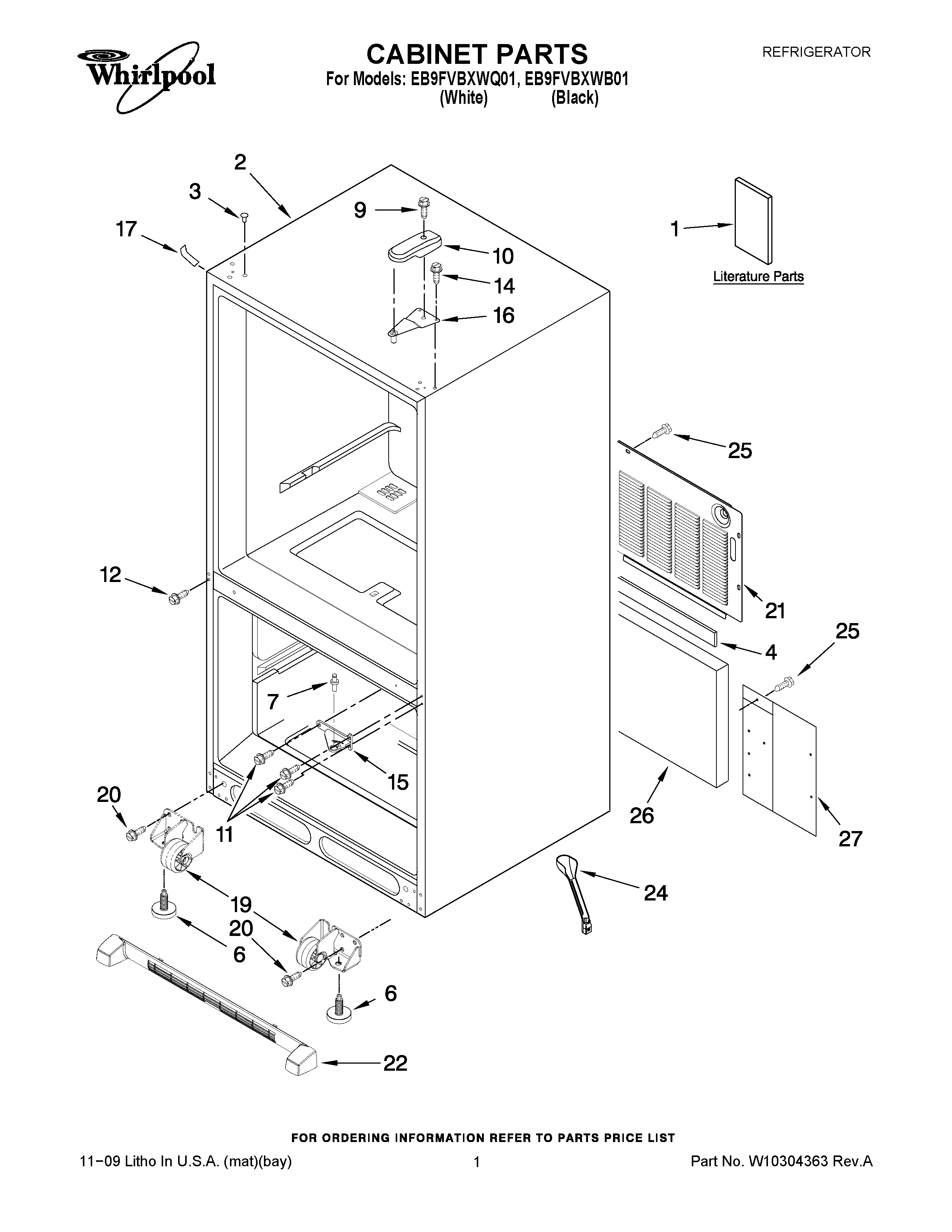

EB9FVBXWB01 01 – CABINET PARTS

EB9FVBXWB01 01 – CABINET PARTS

Written by

in

EB9FVBXWB01 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1ENERGY GUIDE
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3Plug, Button (3) (Black)
3WP67001130 Whirlpool Refrigerator White Button Plug
4B5759655 Whirlpool Refrigerator Gasket
6W11177593 Whirlpool Leveling Feet
7WP67006744 Whirlpool Refrigerator Center Pin
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
19ROLLER ASSY.(REAR)
2067006564 Whirlpool Refrigerator Screw
21W10210978 Whirlpool Refrigerator Back Cover
22GRILLE, TOE (BLACK)
22GRILLE ASSEMBLY (WHITE)
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
