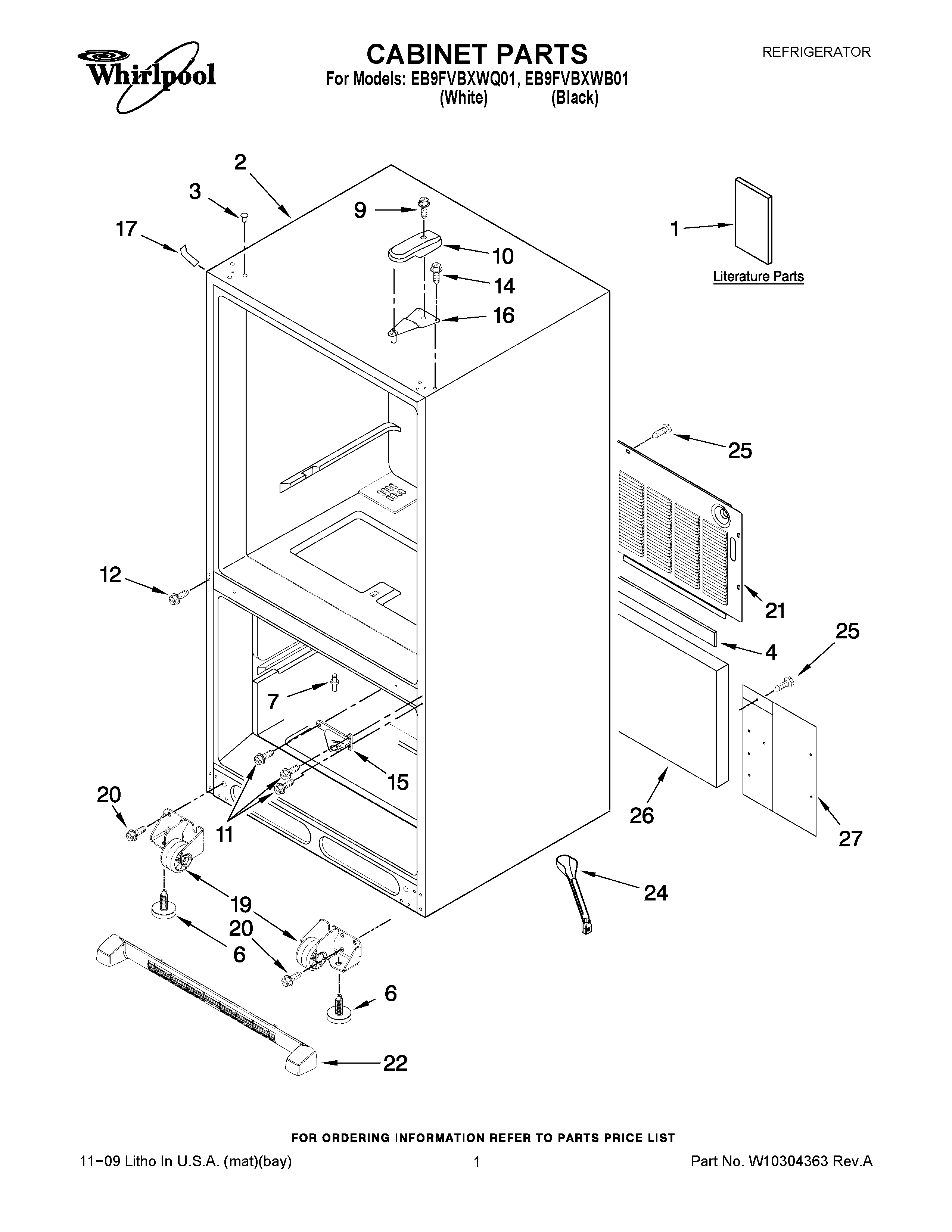

EB9FVBXWQ01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	ENERGY GUIDE
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	Plug, Button (3) (Black)
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	B5759655 Whirlpool Refrigerator Gasket
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	WP489349 Whirlpool Refrigerator Screw
12	WP98165 Whirlpool Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
19	ROLLER ASSY.(REAR)
20	67006564 Whirlpool Refrigerator Screw
21	W10210978 Whirlpool Refrigerator Back Cover
22	GRILLE, TOE (BLACK)
22	GRILLE ASSEMBLY (WHITE)
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
27	W11684617 Whirlpool Valve Cover
