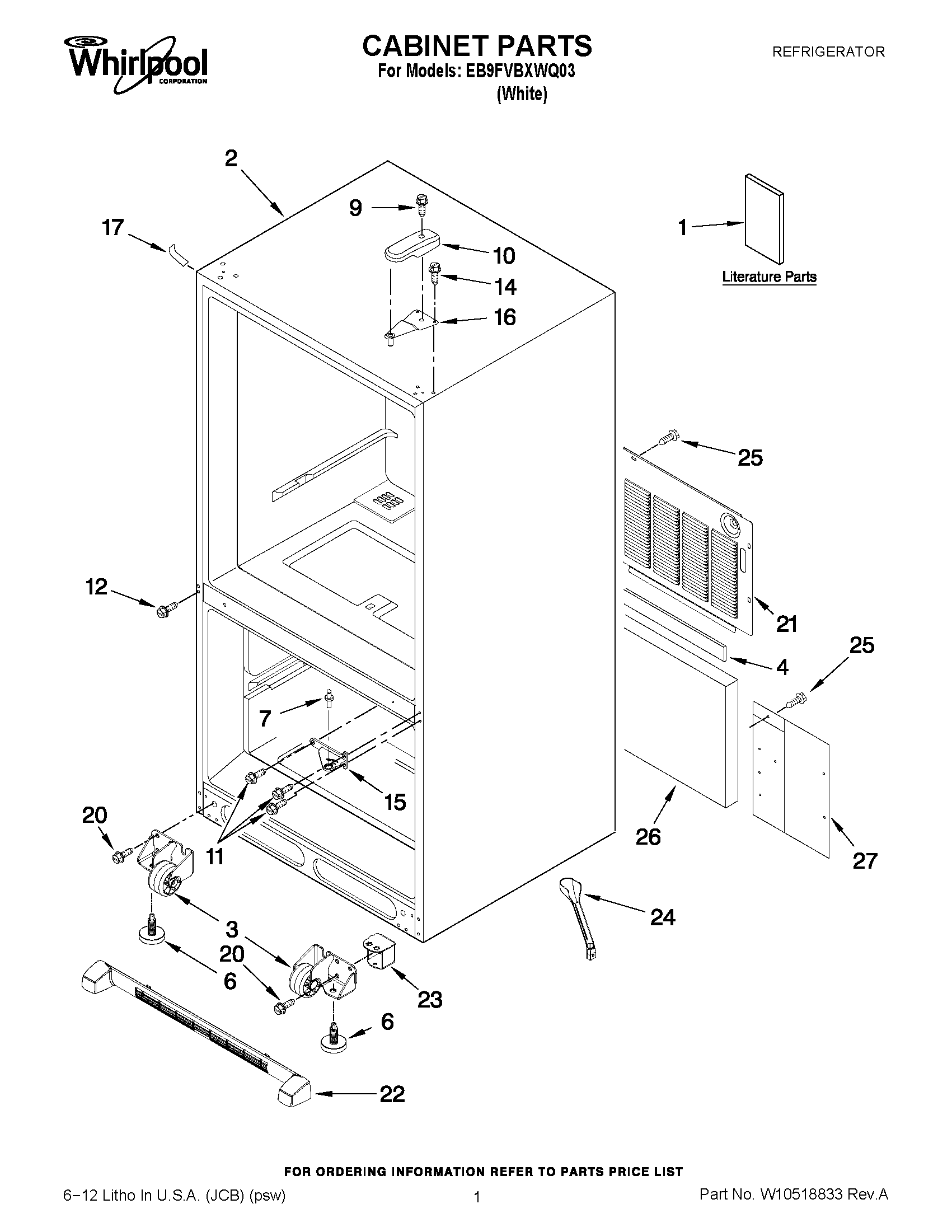

EB9FVBXWQ03 01 – CABINET PARTS

EB9FVBXWQ03 01 – CABINET PARTS

Written by

in

EB9FVBXWQ03 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ENERGY GUIDE
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10515762 Whirlpool Refrigerator Cabinet Roller
3WPW10515763 Whirlpool Refrigerator Cabinet Roller
4B5759655 Whirlpool Refrigerator Gasket
6WPW10141622 Whirlpool Leveler
7WP67006744 Whirlpool Refrigerator Center Pin
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
2067006564 Whirlpool Refrigerator Screw
21W10210978 Whirlpool Refrigerator Back Cover
22WPW10534166 Whirlpool Refrigerator Front Grille
23W10315062 Whirlpool Refrigerator Door Hinge
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
