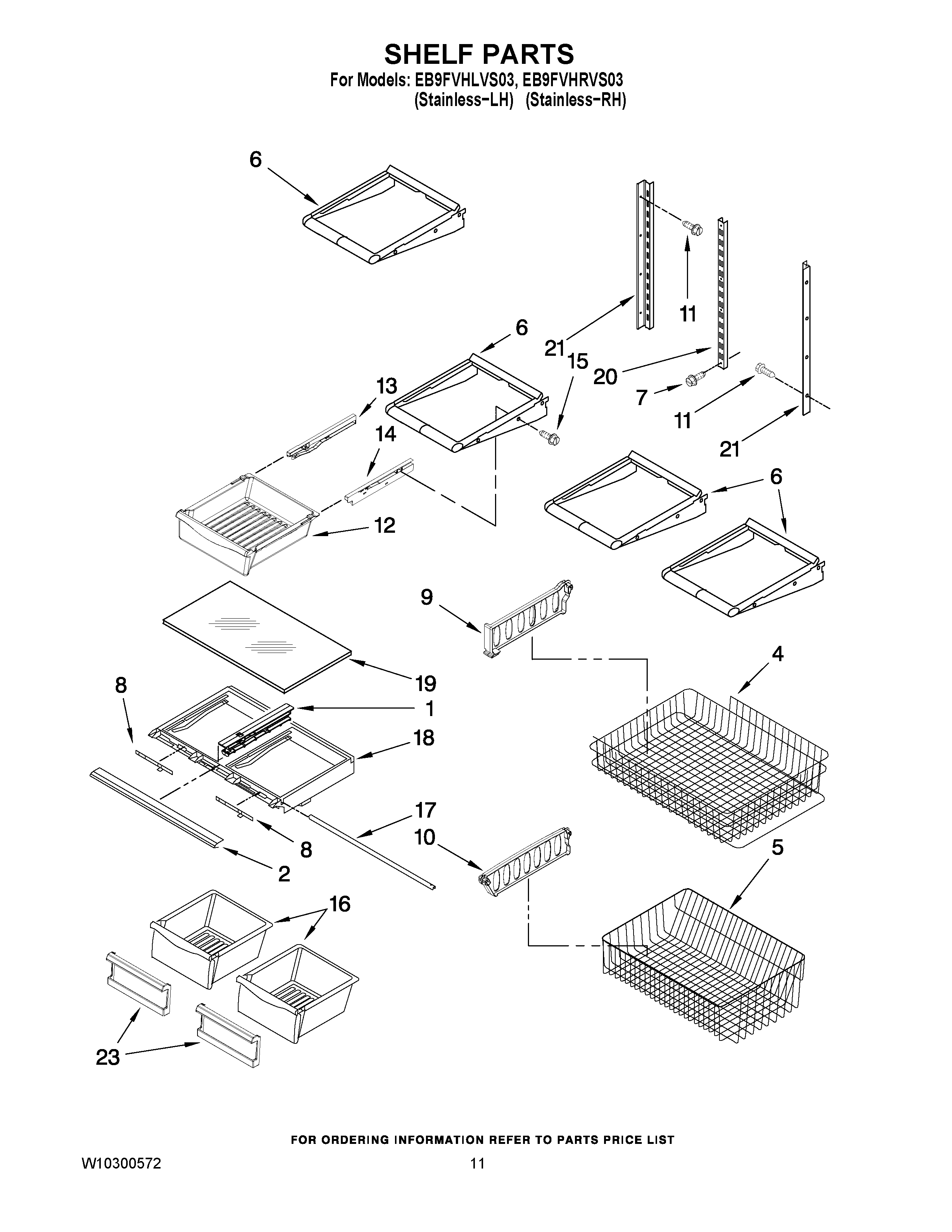

EB9FVHLVS03 07 – SHELF PARTS

EB9FVHLVS03 07 – SHELF PARTS

Written by

in

EB9FVHLVS03 07 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
4Basket, Freezer (Upper)
5W10503182 Whirlpool Refrigerator Freezer Basket
6W11402522 Whirlpool Refrigerator Glass Shelf
7W10709795 Whirlpool Refrigerator Screw
8SLIDE
9W10241046 Whirlpool Refrigerator Divider
10Divider, Basket (Lower)
1167006425 Whirlpool Refrigerator Screw
12PAN, DELI
13WP67001054 Whirlpool Left Glide
14WP67001053 Whirlpool Drawer Glide
15SCREW
16W10833528 Whirpool Refrigerator Crisper Pan
17Whirlpool Refrigerator Shelf Support Liner
18WPW10671240 Whirlpool Refrigerator Frame
19WP67006877 Whirlpool Refrigerator Glass Shelf
20W10273463 Whirlpool Refrigerator Ladder
21W10251970 Whirlpool Refrigerator Ladder
23WPW10231481 Whirlpool Refrigerator Shelf Trim
