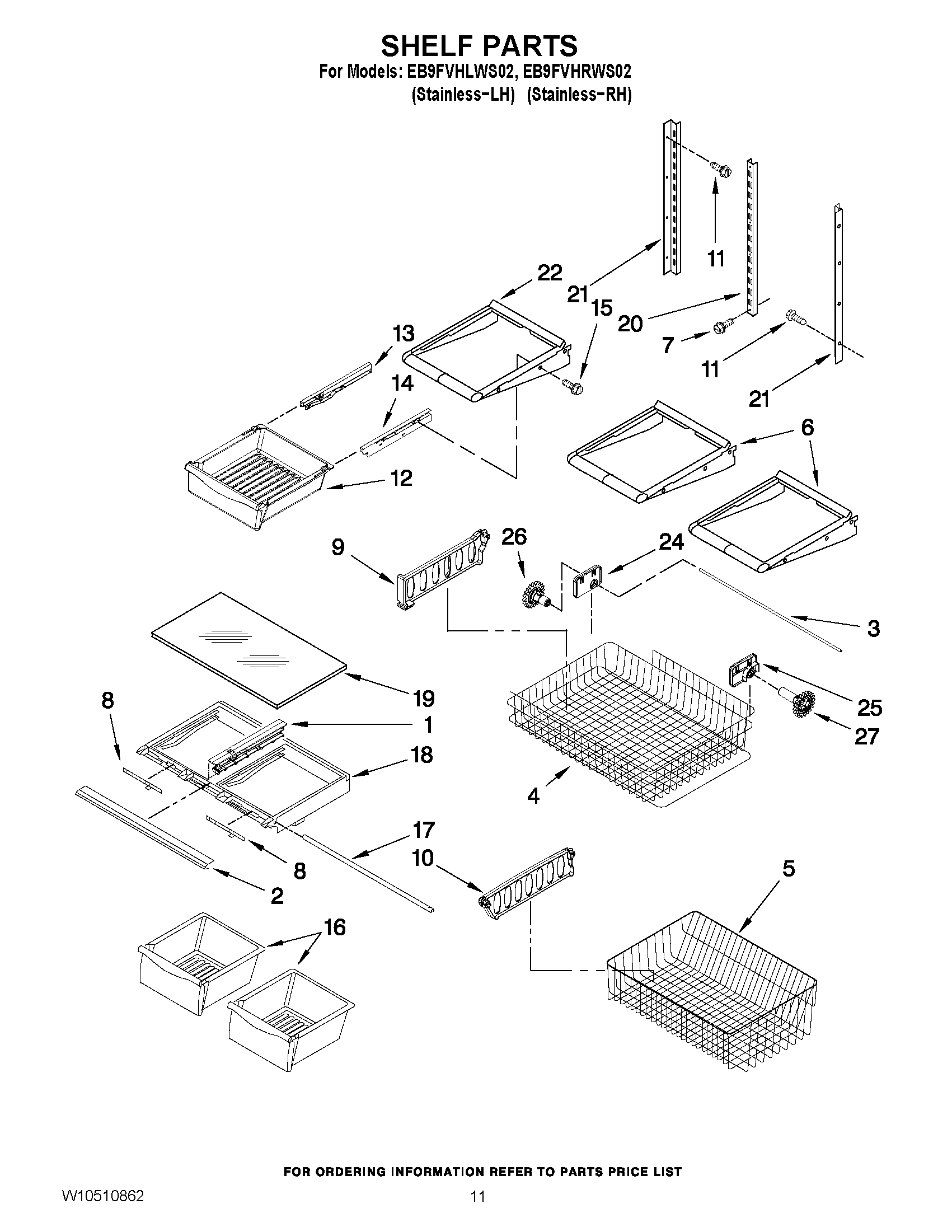

EB9FVHLWS02 07 – SHELF PARTS

EB9FVHLWS02 07 – SHELF PARTS

Written by

in

EB9FVHLWS02 07 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2WPW10231481 Whirlpool Refrigerator Shelf Trim
3SHAFT, RACK
4BASKET, FREEZER (UPPER)
5W10503182 Whirlpool Refrigerator Freezer Basket
6W11402522 Whirlpool Refrigerator Glass Shelf
712992301 Whirlpool Refrigerator Screw
8SLIDE
9W10241046 Whirlpool Refrigerator Divider
10W10847995 Whirlpool Divider Assembly
1167006425 Whirlpool Refrigerator Screw
12WP67001308 Whirlpool Deli Drawer
13WP67001054 Whirlpool Left Glide
14WP67001053 Whirlpool Drawer Glide
15SCREW
16W10833528 Whirpool Refrigerator Crisper Pan
17Whirlpool Refrigerator Shelf Support Liner
18WPW10671240 Whirlpool Refrigerator Frame
19WP67006877 Whirlpool Refrigerator Glass Shelf
20W10273463 Whirlpool Refrigerator Ladder
21W10251970 Whirlpool Refrigerator Ladder
24W10348259 Whirlpool Refrigerator Bracket Assembly
25W10348260 Whirlpool Refrigerator Bracket
26WPW10474715 Whirlpool Refrigerator Gear
27WPW10474716 Whirlpool Refrigerator Gear
