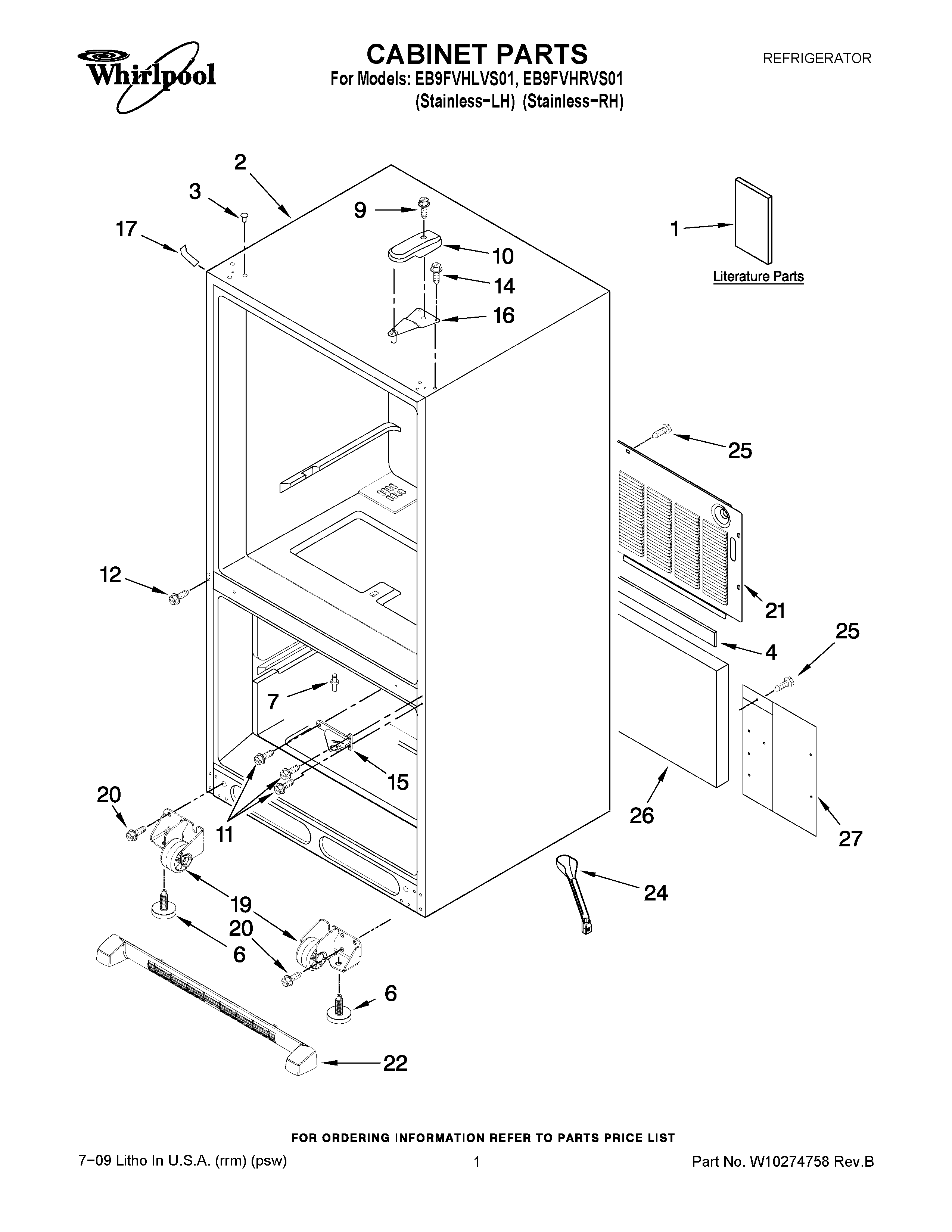

EB9FVHRVS01 01 – CABINET PARTS

EB9FVHRVS01 01 – CABINET PARTS

Written by

in

EB9FVHRVS01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Use & Care Guide
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3Plug, Button (3) (Black)
4B5759655 Whirlpool Refrigerator Gasket
6W11177593 Whirlpool Leveling Feet
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
19ROLLER ASSY.(REAR)
2067006564 Whirlpool Refrigerator Screw
21W10210978 Whirlpool Refrigerator Back Cover
22WPW10534167 Whirlpool Refrigerator Front Grille
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
