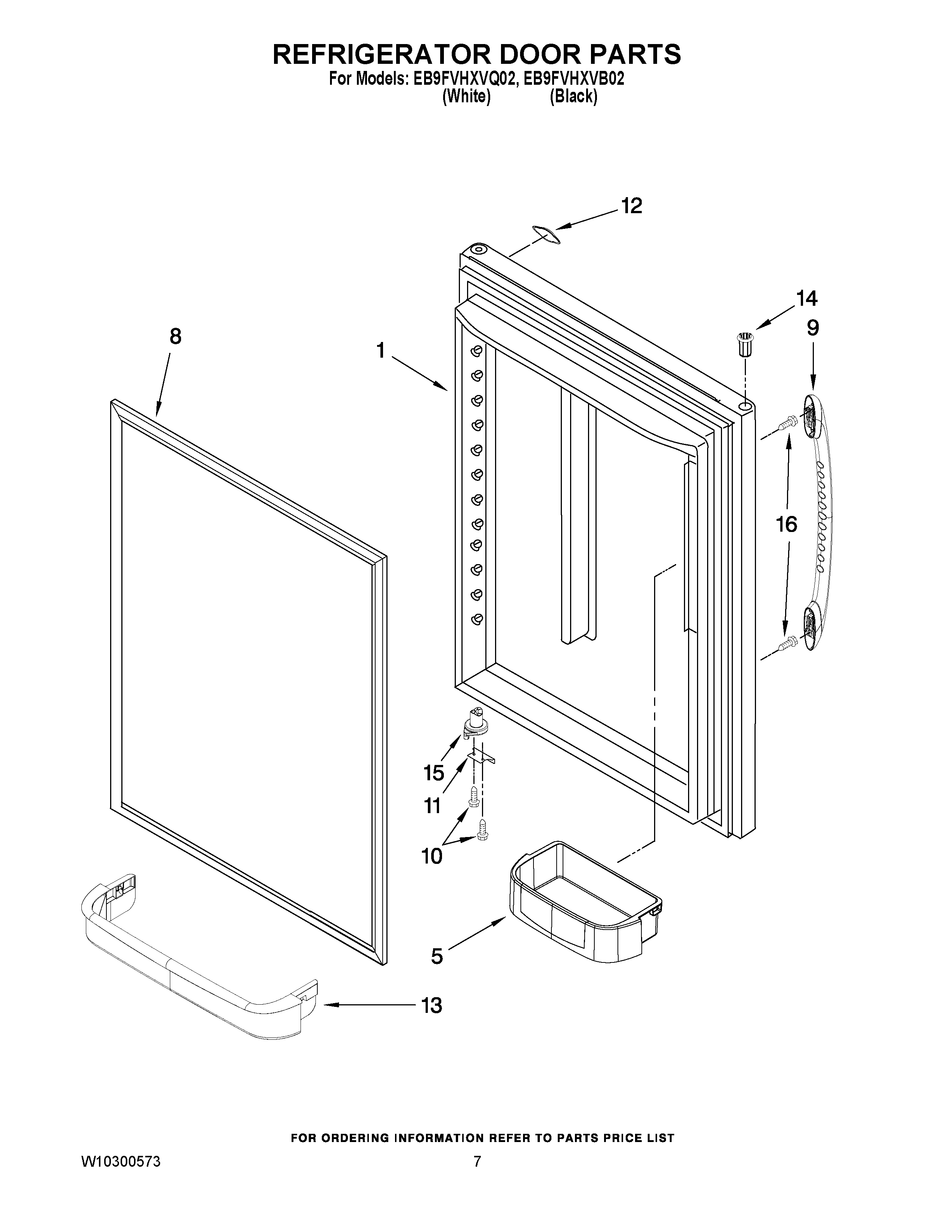

EB9FVHXVB02 05 – REFRIGERATOR DOOR PARTS

EB9FVHXVB02 05 – REFRIGERATOR DOOR PARTS

Written by

in

EB9FVHXVB02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Black)
112658573WQ Whirlpool Refrigerator DOR-FIP White
5BUCKET, TALL (1)
567001141 Whirlpool Refrigerator Small Bucket Door
5WP67001021 Whirlpool Refrigerator Bucket
8WPW10436245 Whirlpool Refrigerator FIP Gasket
8WPW10443309 Whirlpool Refrigerator Door Gasket
9W11351146 Whirlpool Refrigerator Handle
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
11W11708403 Whirlpool Door Stop
12WP2213265 Whirlpool Refrigerator Nameplate
13Retainer, Door
1467004978 Whirlpool Refrigerator Black Door Bushing
14WP67004977 Whirlpool Refrigerator Door Hinge Bushing
15WP67003639 Whirlpool Refrigerator Closer
15WP67003638 Whirlpool Closing Cam
16WP12992902 Whirlpool Refrigerator Screw
