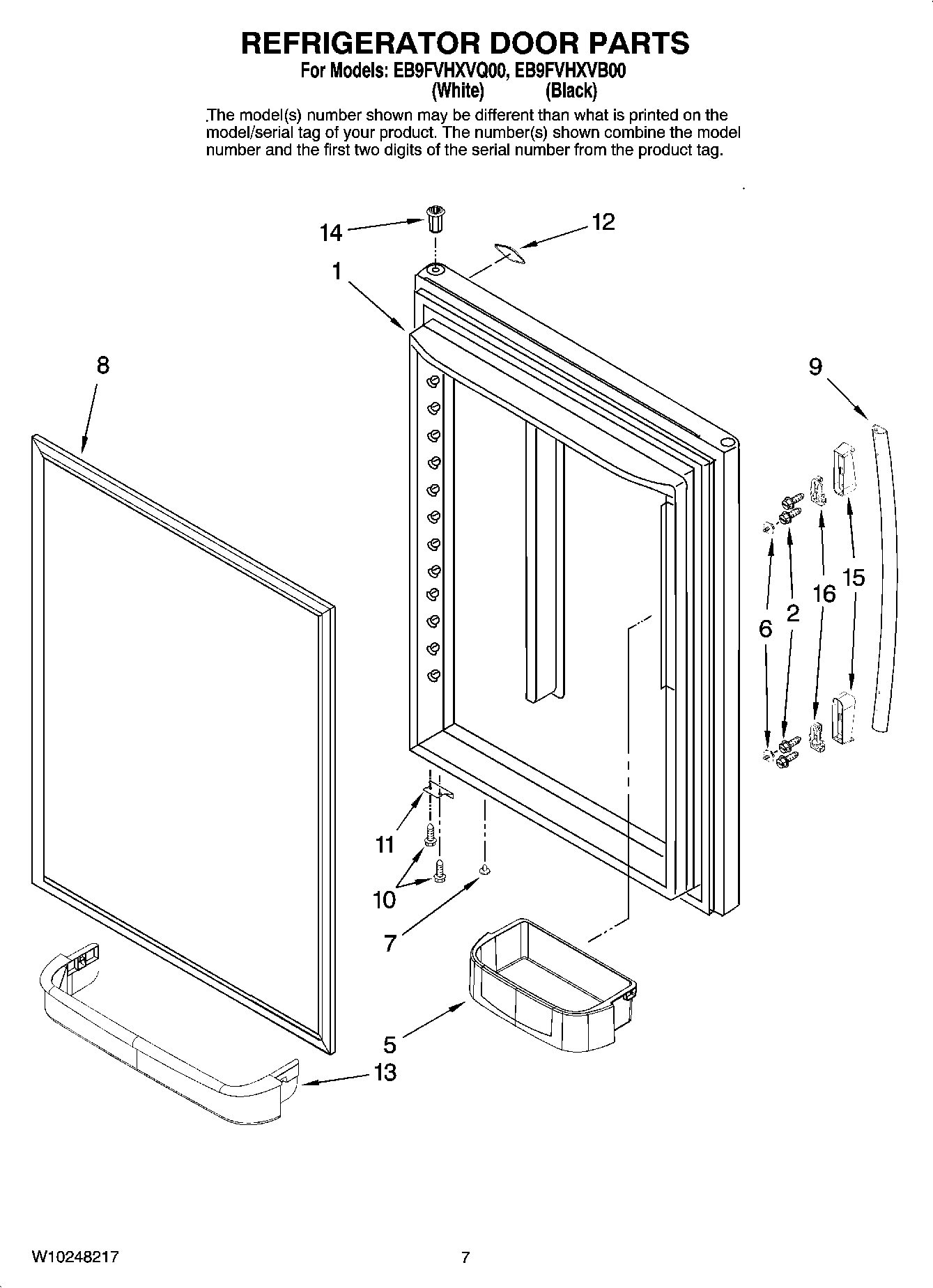

EB9FVHXVQ00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Black)
1	12658573WQ Whirlpool Refrigerator DOR-FIP White
2	W10267047 Whirlpool Screw
5	67001141 Whirlpool Refrigerator Small Bucket Door
5	WP67001021 Whirlpool Refrigerator Bucket
6	WP12992902 Whirlpool Refrigerator Screw
7	10712401 Whirlpool Refrigerator Vent Plug (White)
7	67004838 Whirlpool Refrigerator Button Vent Plug
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	WPW10443309 Whirlpool Refrigerator Door Gasket
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	Handle, Door (Black)
10	WP98165 Whirlpool Screw
11	12968202W Whirlpool Refrigerator Door Stop
11	W11708403 Whirlpool Door Stop
12	WP2213265 Whirlpool Refrigerator Nameplate
13	Retainer, Door
14	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	67004978 Whirlpool Refrigerator Black Door Bushing
15	Endcap, Handle (White)
15	Endcap, Handle (Black)
16	Clip, Handle
