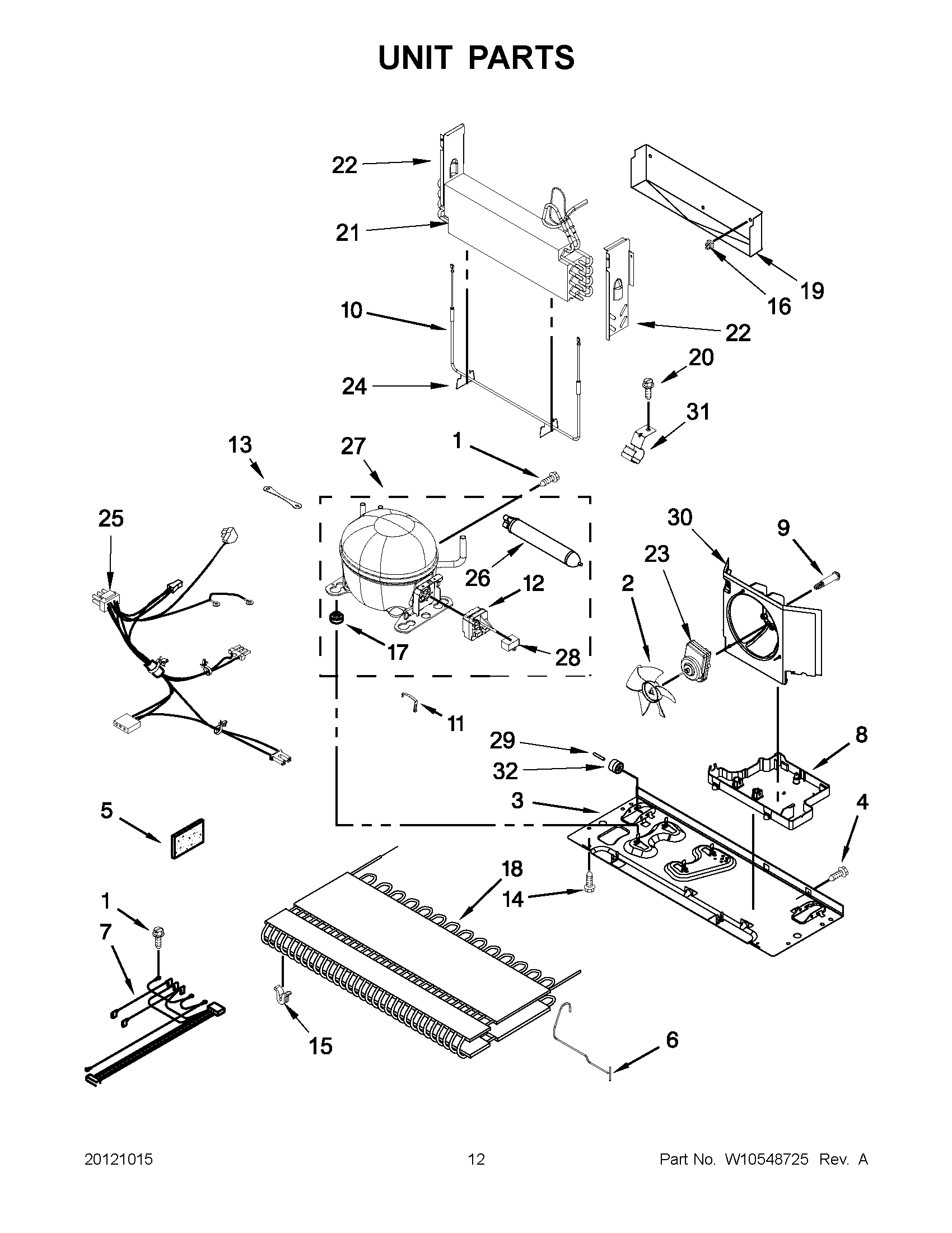

EB9FVHXWB03 06 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11553819 Whirlpool Refrigerator Insulation
6	W10294014 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11661170 Whirlpool Clip
12	WPW10194431 Whirlpool Start Device
13	W10236396 Whirlpool Refrigerator Strap
14	Screw
15	WPW10137529 Whirlpool Refrigerator Grommet
16	CLIP, EVAP (2)
17	W10852725 Whirlpool Refrigerator Grommet
18	CONDENSER
19	TRAY, DRIP
20	WP489474 Whirlpool Refrigerator Screw
21	W10920993 Whirlpool Refrigerator Evaporator
22	Dam (Left Side)
22	Dam (Right Side)
23	W11613295 Whirlpool Condenser Motor
24	W11673433 Whirlpool Clip
25	WPW10234024 Whirlpool Refrigerator Wire Harness
26	WPW10143759 Whirlpool Dryer Filter
27	W10233960 Whirlpool Refrigerator Compressor
28	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
29	67006434 Whirlpool Axle Pin
30	W11556315 Whirlpool Shroud
31	W10281329 Whirlpool Clamp
32	WP67005149 Whirlpool Roller
