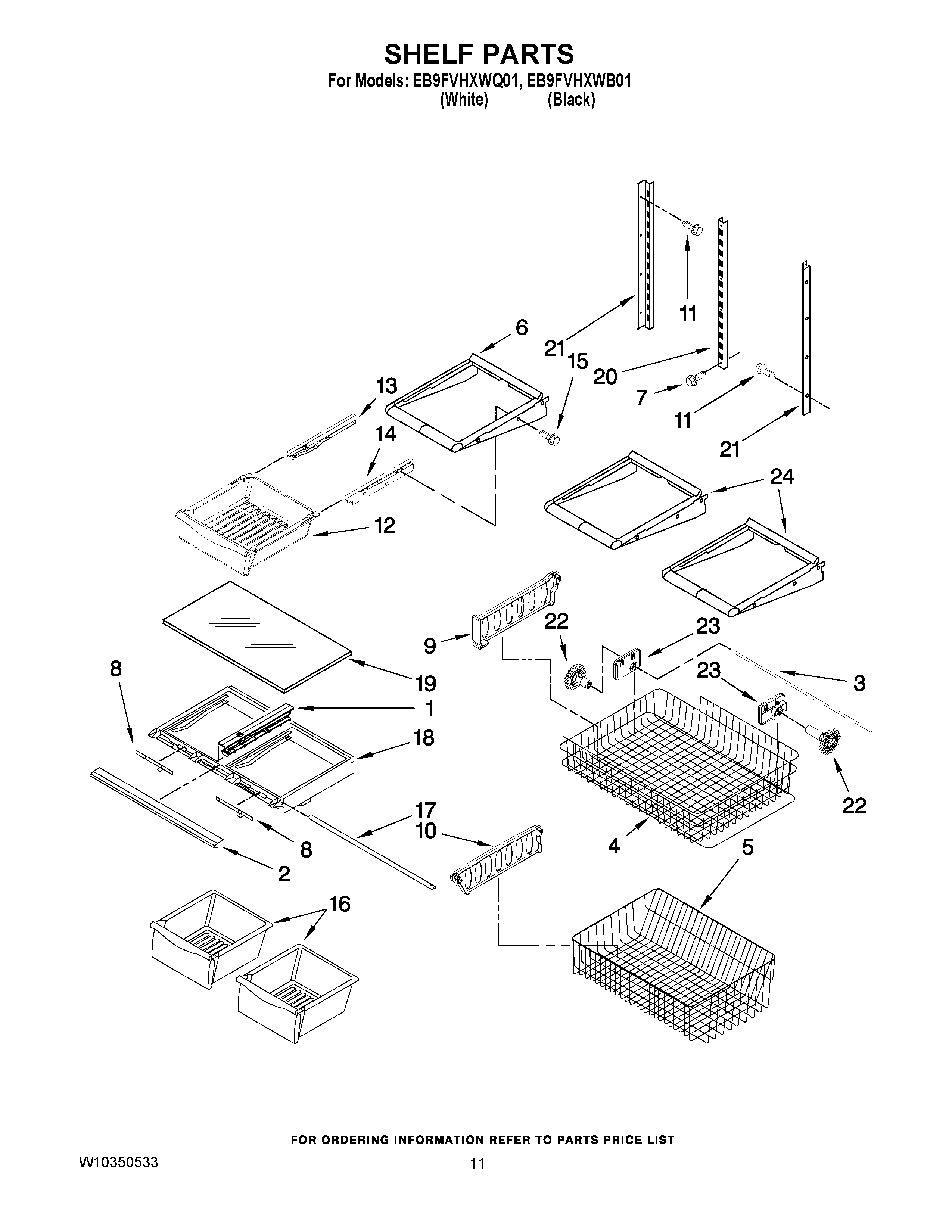

EB9FVHXWQ01 07 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231481 Whirlpool Refrigerator Shelf Trim
3	SHAFT, RACK
4	BASKET, FREEZER UPPER
5	W10503182 Whirlpool Refrigerator Freezer Basket
7	W10215666 Whirlpool Refrigerator Screw
8	SLIDE
9	W10241046 Whirlpool Refrigerator Divider
10	Divider, Basket (Lower)
11	67006425 Whirlpool Refrigerator Screw
12	WP67001308 Whirlpool Deli Drawer
13	WP67001054 Whirlpool Left Glide
14	WP67001053 Whirlpool Drawer Glide
15	SCREW
16	W10833528 Whirpool Refrigerator Crisper Pan
17	Whirlpool Refrigerator Shelf Support Liner
18	WPW10671240 Whirlpool Refrigerator Frame
19	WP67006877 Whirlpool Refrigerator Glass Shelf
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251970 Whirlpool Refrigerator Ladder
22	WPW10474716 Whirlpool Refrigerator Gear
22	WPW10474715 Whirlpool Refrigerator Gear
23	W10348259 Whirlpool Refrigerator Bracket Assembly
23	W10348260 Whirlpool Refrigerator Bracket
24	W11402522 Whirlpool Refrigerator Glass Shelf
