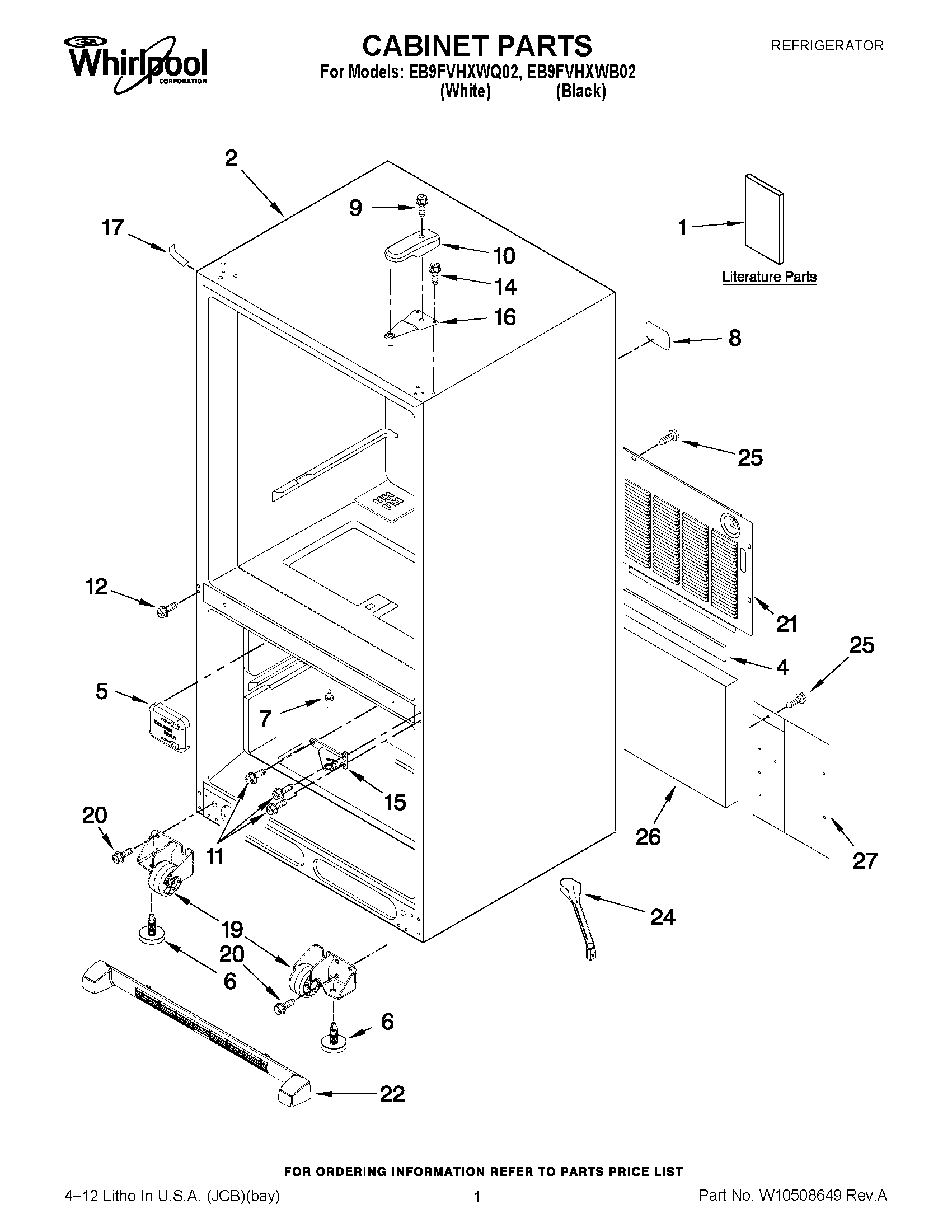

EB9FVHXWQ02 01 – CABINET PARTS

EB9FVHXWQ02 01 – CABINET PARTS

Written by

in

EB9FVHXWQ02 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
4B5759655 Whirlpool Refrigerator Gasket
5WP67001098 Whirlpool Refrigerator Tube Cover
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8W11685757 Whirlpool Label
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W10210978 Whirlpool Refrigerator Back Cover
22WPW10534167 Whirlpool Refrigerator Front Grille
22WPW10534166 Whirlpool Refrigerator Front Grille
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
